Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly
WARNING: This page is about a different car, the 2002 Mercury Cougar. However, it is still accessible from the selected car via links, so may be relevant.

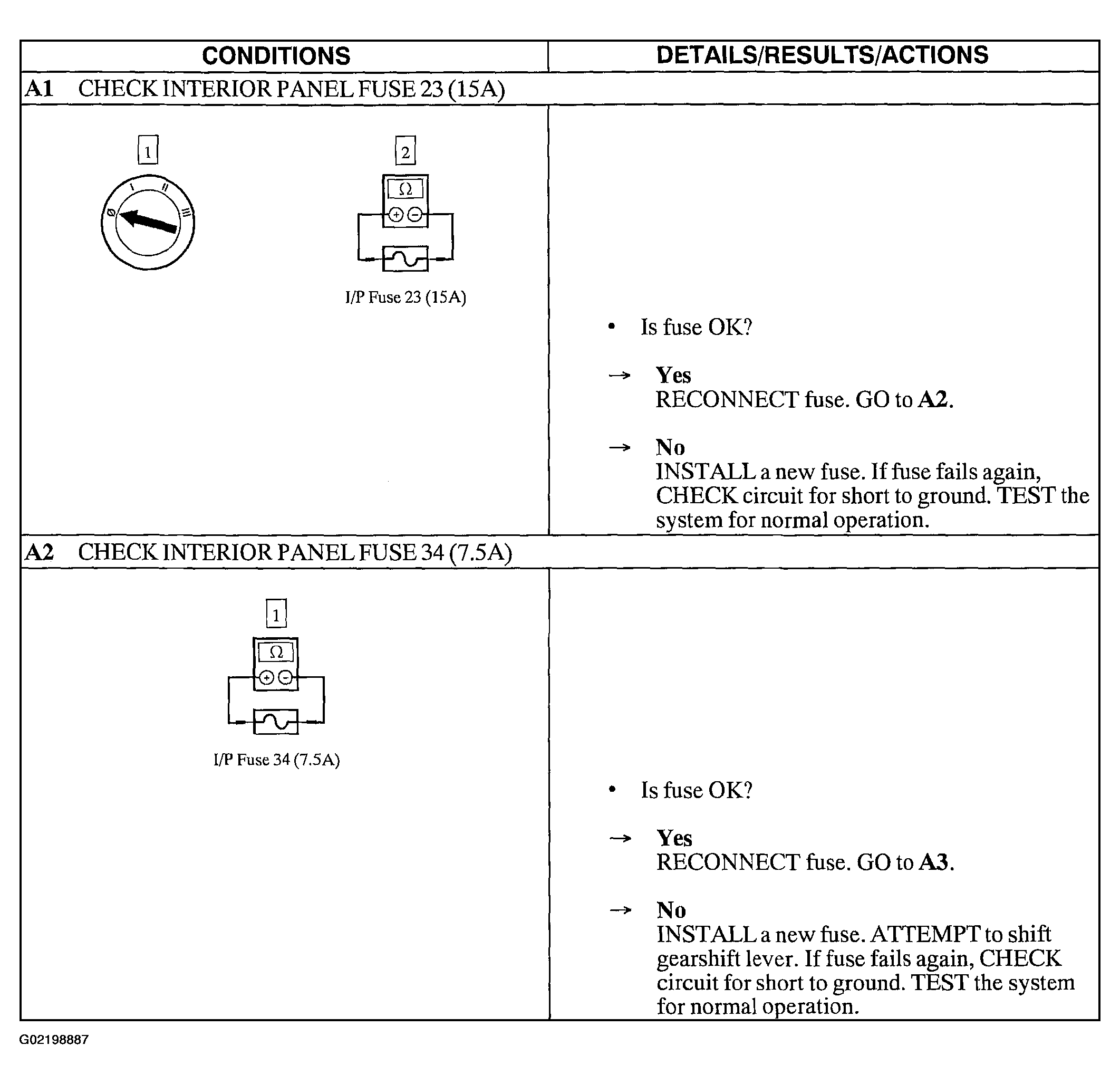

Fig 1: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A1 & A2)
Courtesy of FORD MOTOR CO.

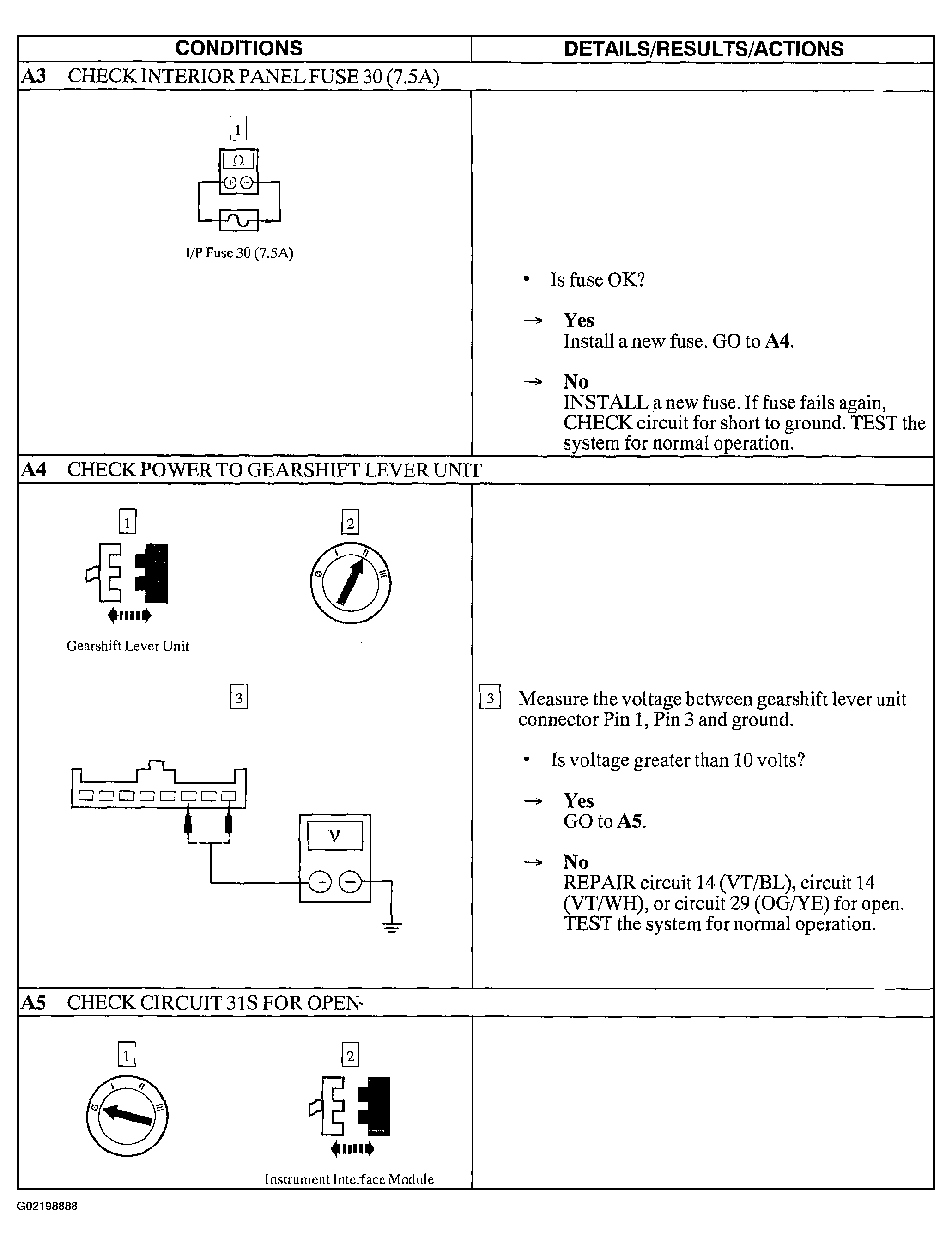

Fig 2: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A3-A5)
Courtesy of FORD MOTOR CO.

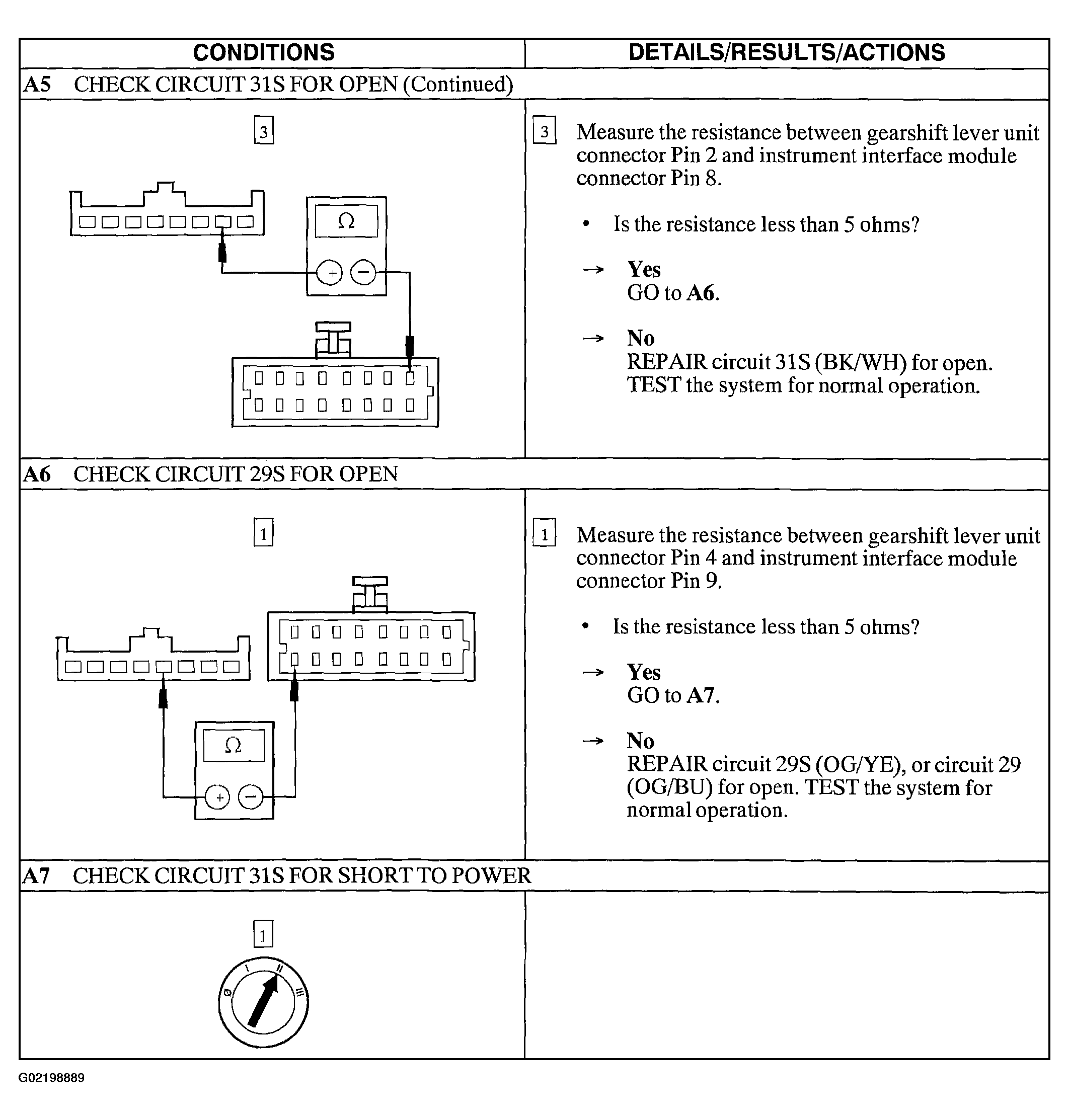

Fig 3: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A5 Cont.-A7)
Courtesy of FORD MOTOR CO.

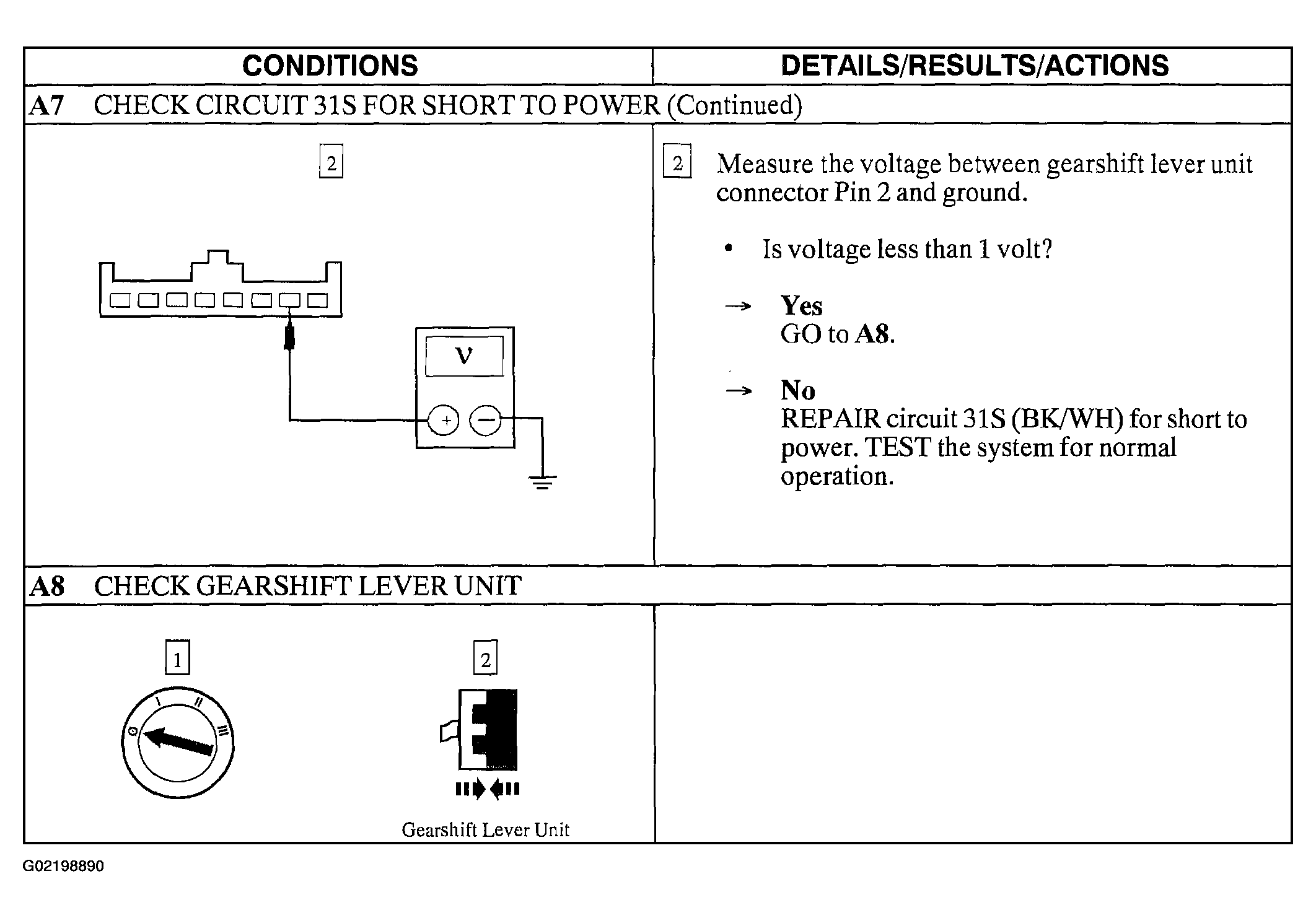

Fig 4: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A7 Cont. & A8)
Courtesy of FORD MOTOR CO.

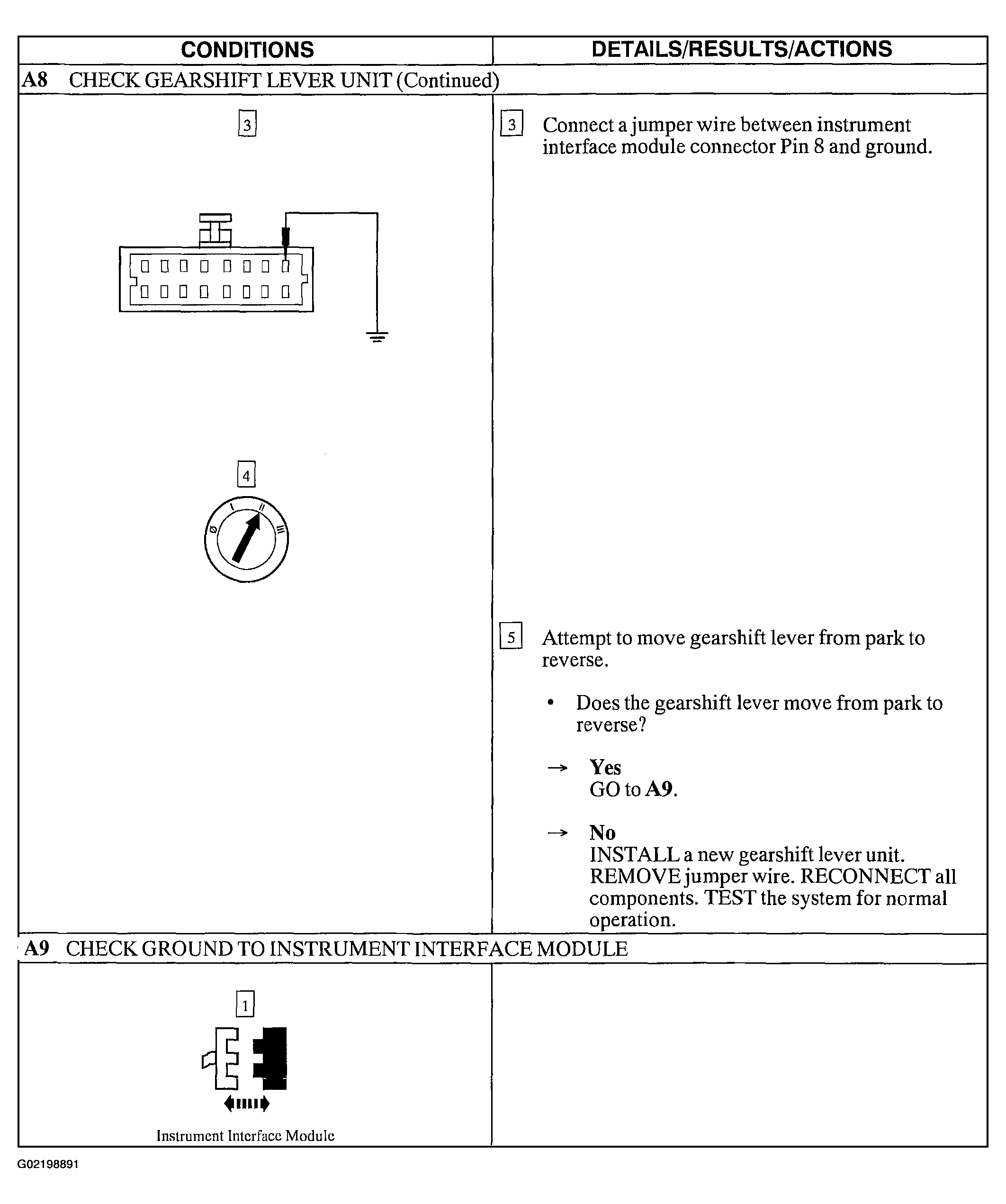

Fig 5: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A8 Cont. & A9)
Courtesy of FORD MOTOR CO.

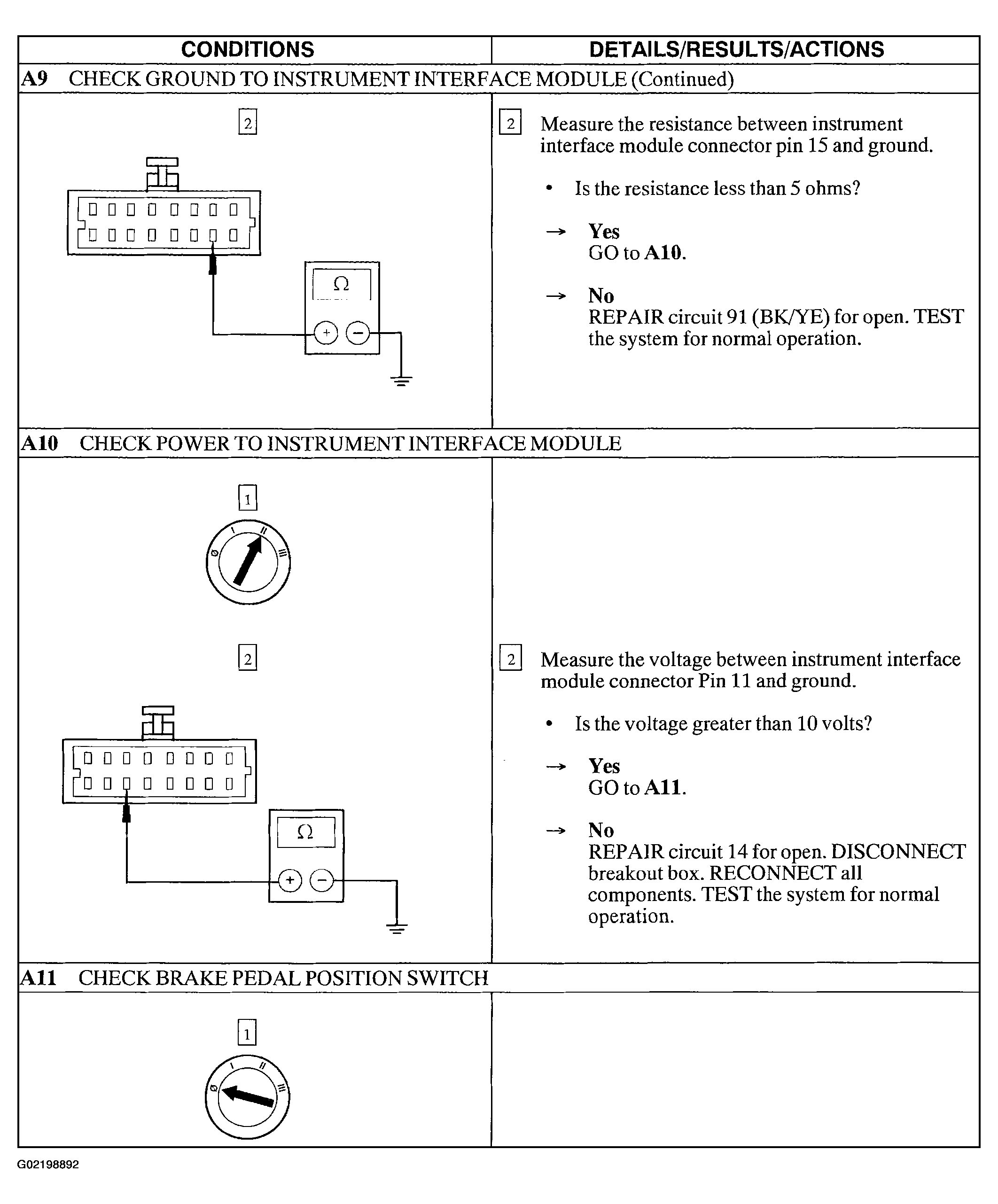

Fig 6: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A9 Cont.-A11)
Courtesy of FORD MOTOR CO.

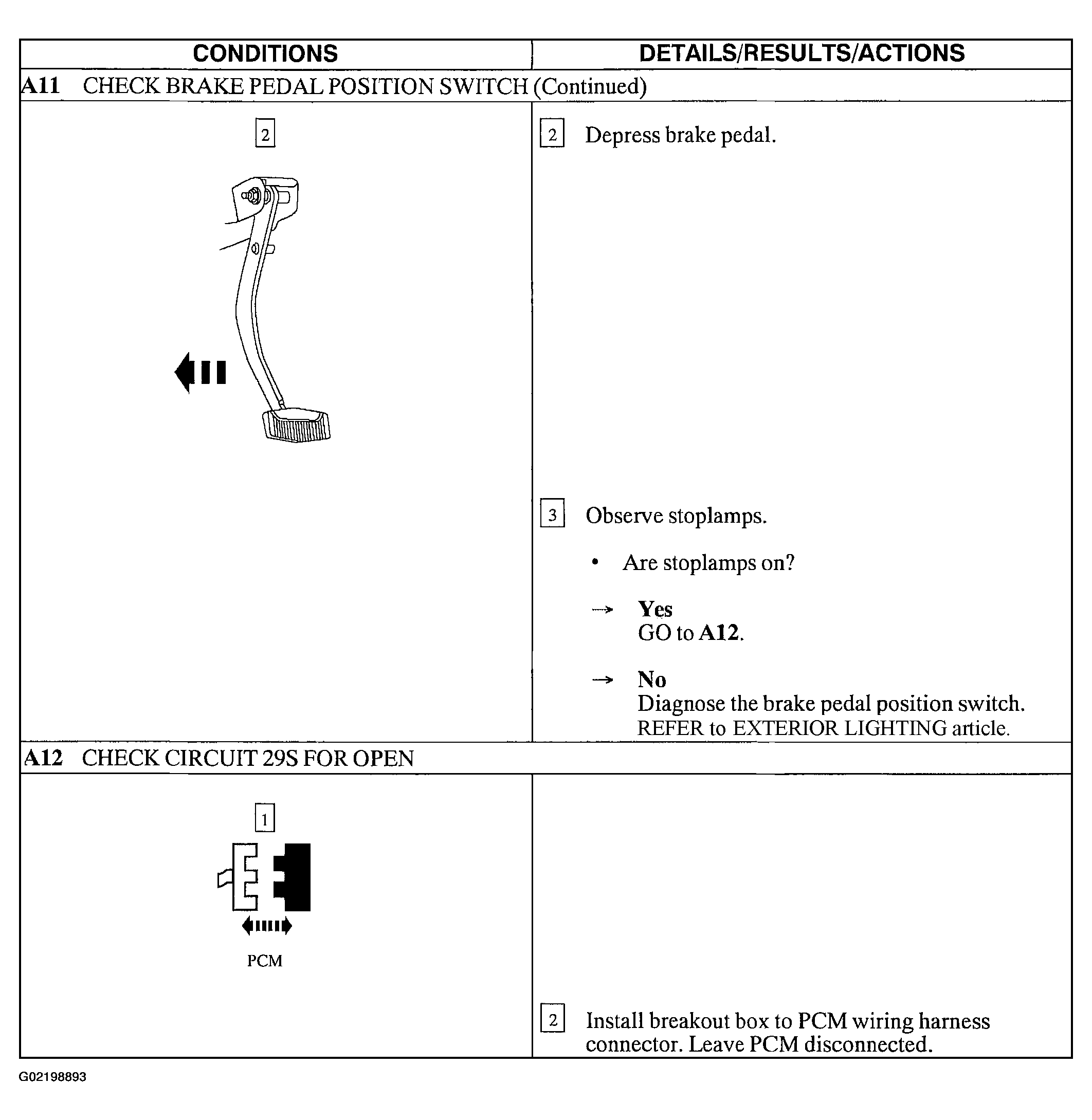

Fig 7: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A11 Cont. & A12)
Courtesy of FORD MOTOR CO.

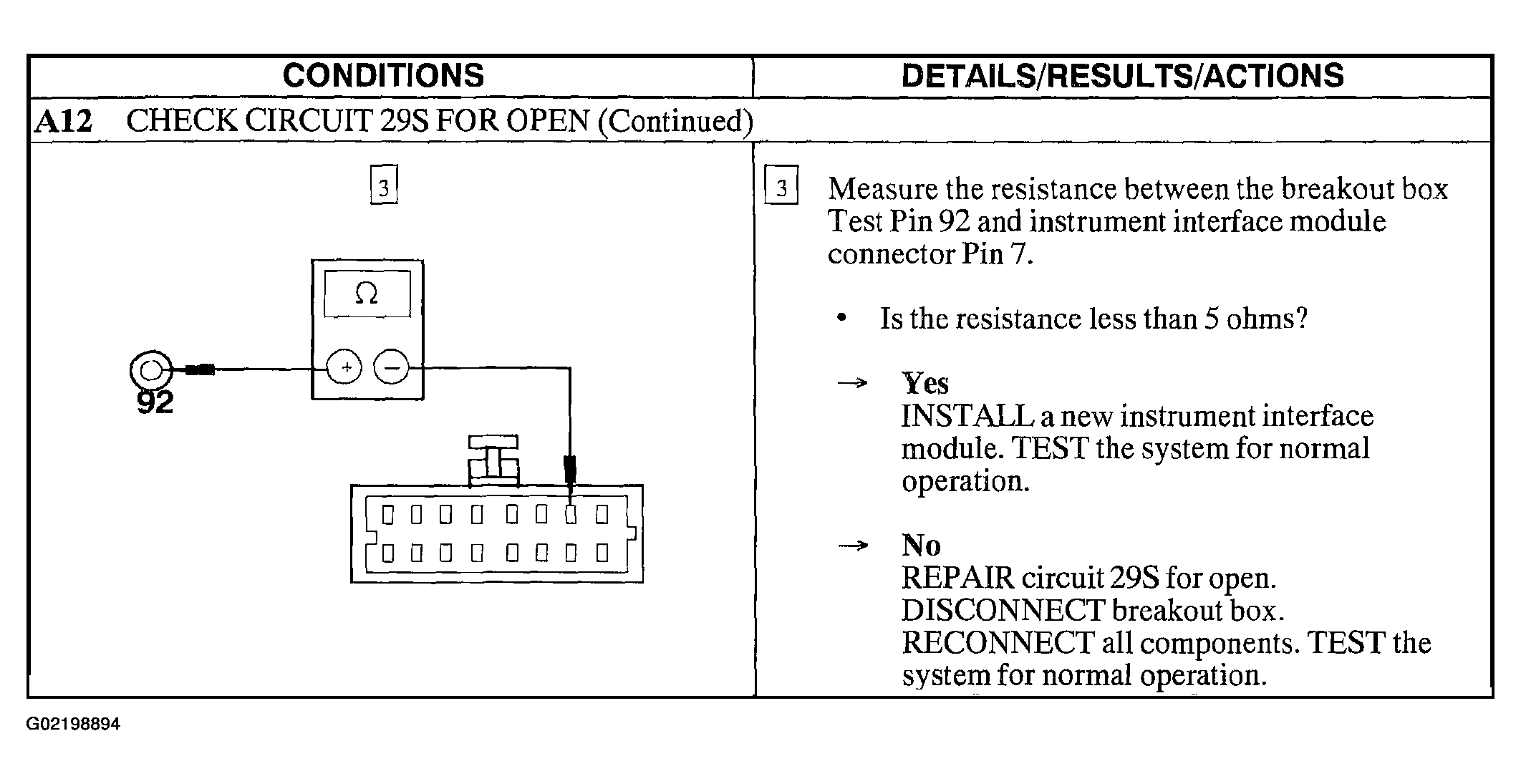

Fig 8: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A12 Cont.)
