Pinpoint Test D: Transmission Control Switch (TCS) Does Not Operate Correctly
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

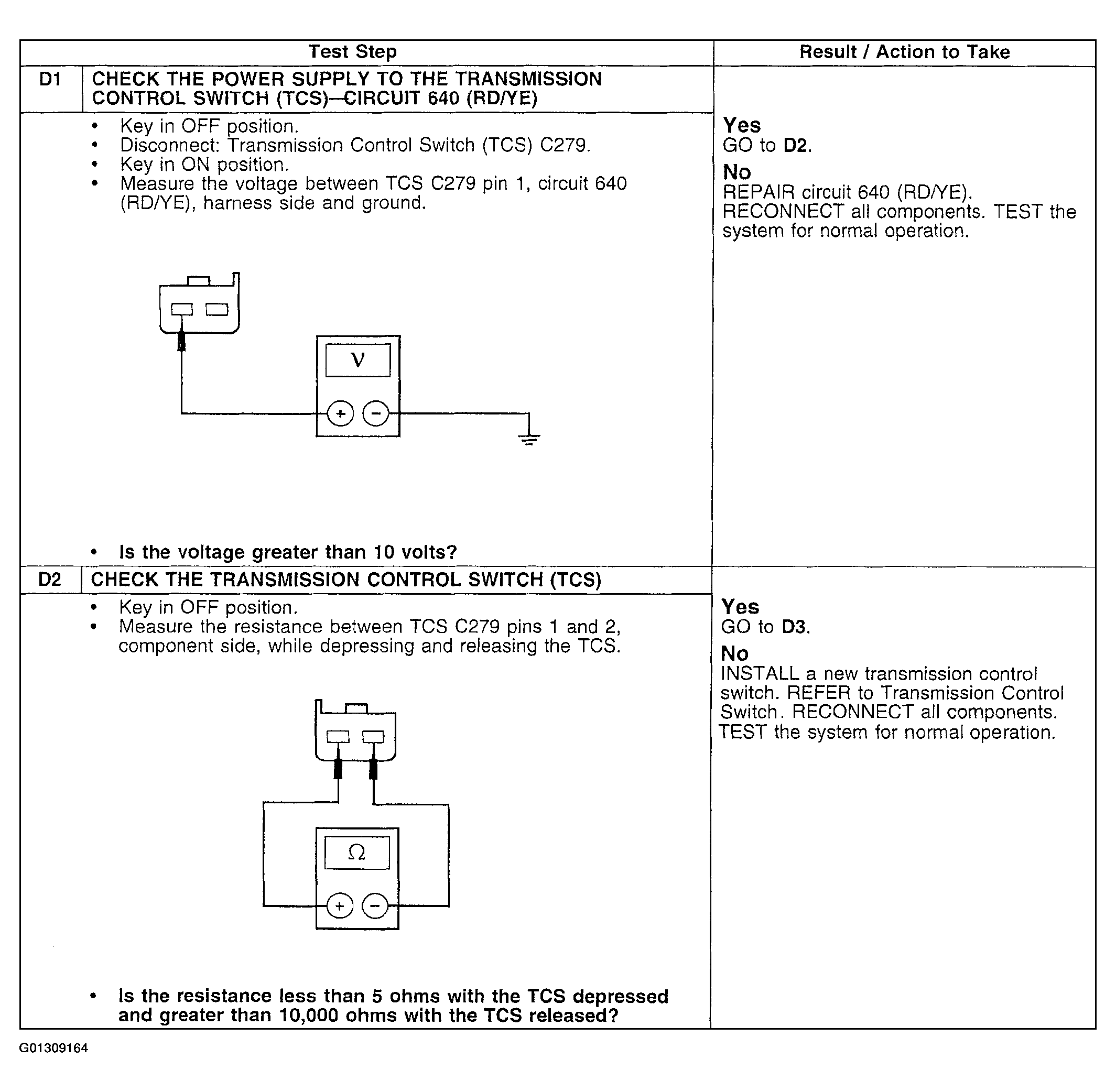

Fig 1: Pinpoint Test D: Transmission Control Switch (TCS) Does Not Operate Correctly (Steps D1-D2)
Courtesy of FORD MOTOR CO.

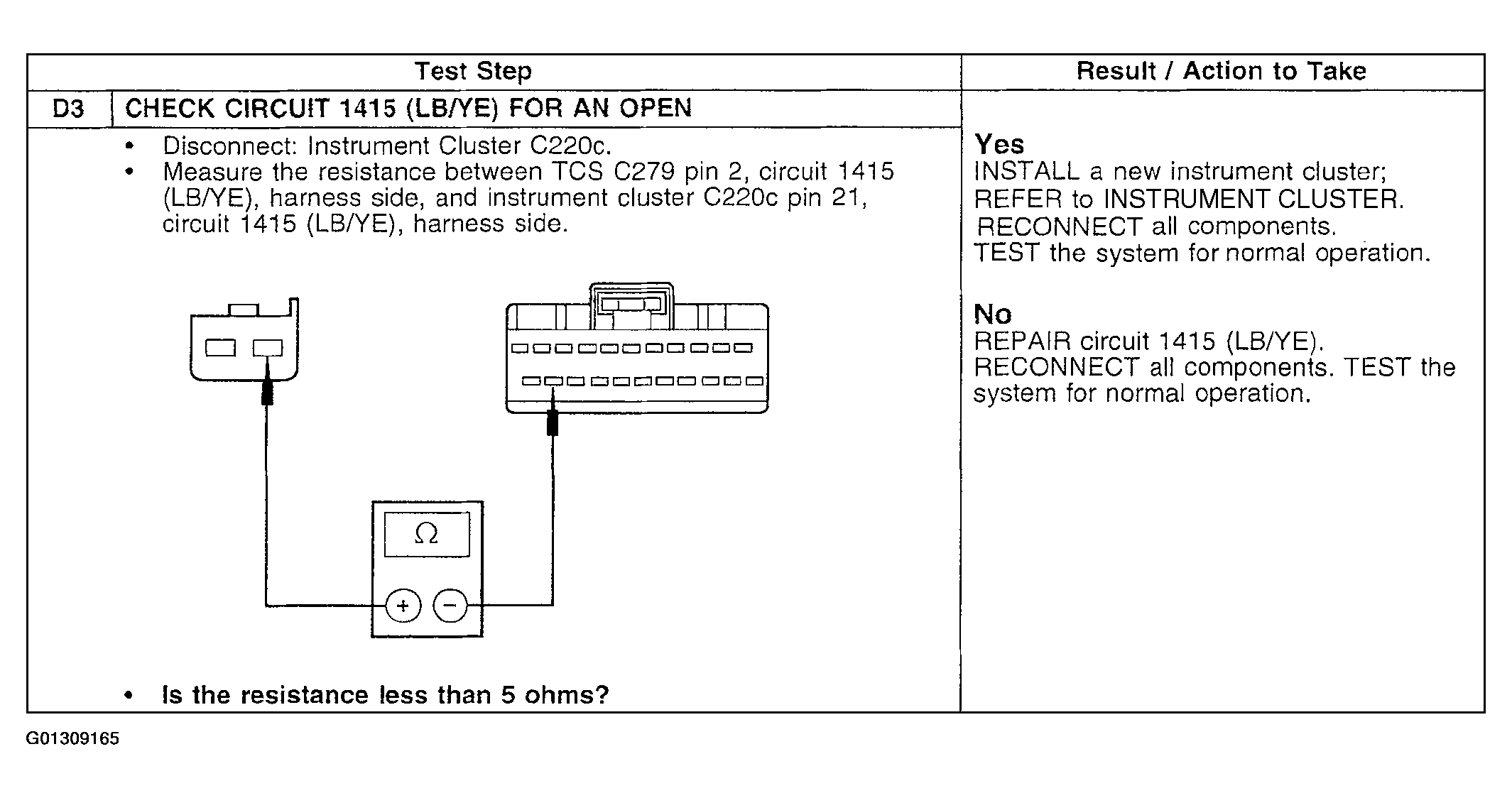

Fig 2: Pinpoint Test D: Transmission Control Switch (TCS) Does Not Operate Correctly (Steps D3)
