Removal And Installation: Radiator: Installation

All Vehicles

1. To install, reverse the removal procedure.

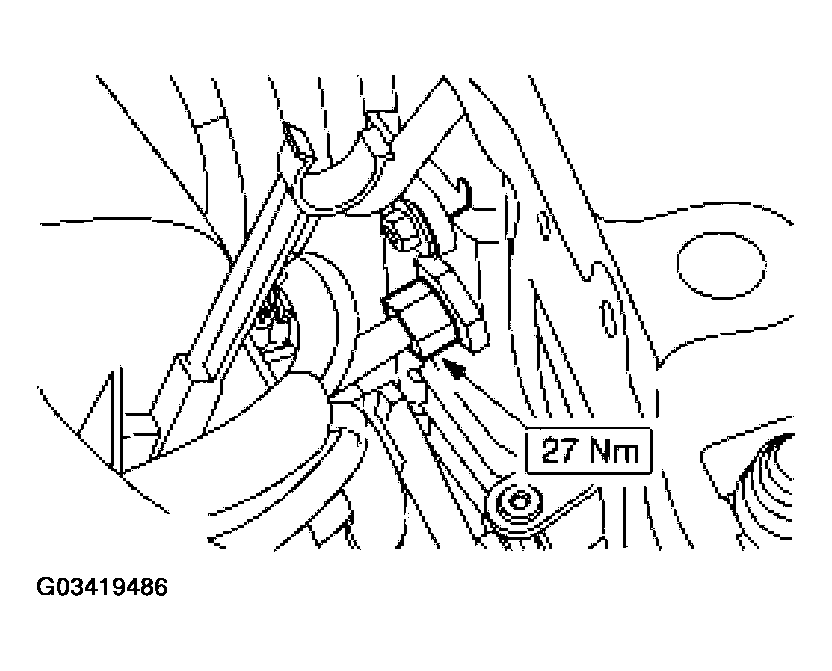

   Fig 1: Installing Radiator Left Hand Bracket

   Courtesy of FORD MOTOR CO.

   Vehicles With Automatic Transaxle

   Fig 2: Connecting Transaxle Lower Cooling Line

   Courtesy of FORD MOTOR CO.

   All Vehicles

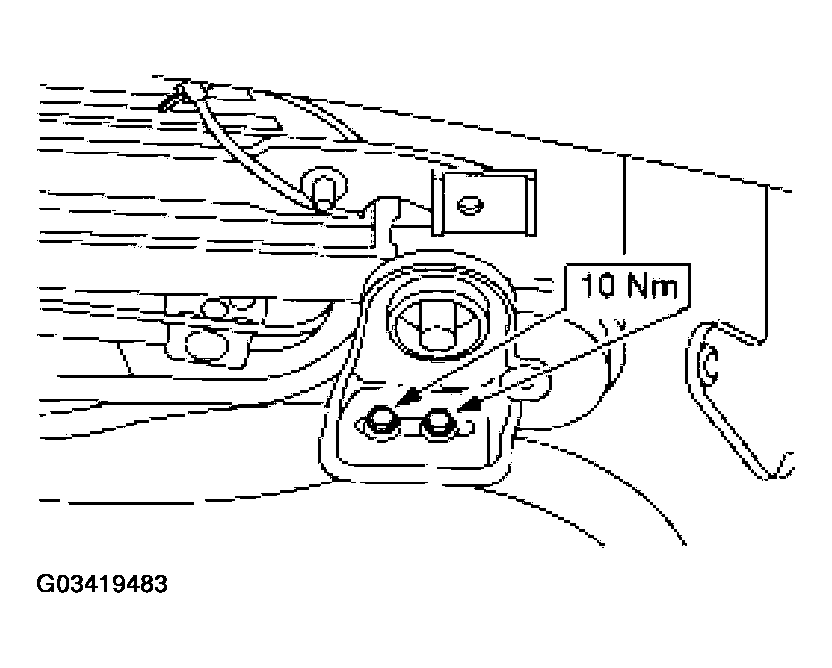

   Fig 3: Installing Radiator Right Hand Bracket

   Courtesy of FORD MOTOR CO.

   Vehicles With Automatic Transaxle

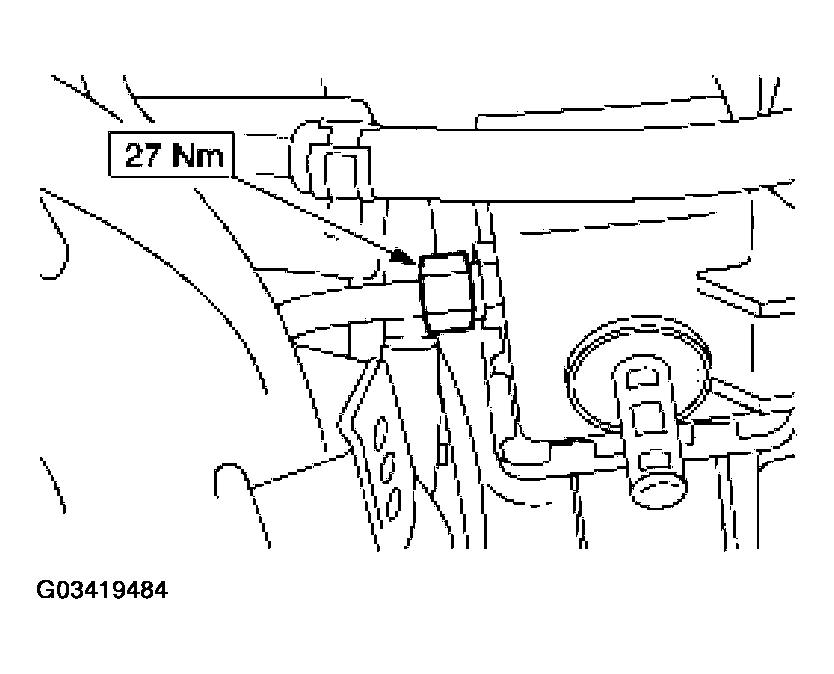

   Fig 4: Attaching Radiator Upper Coolant Line

   Courtesy of FORD MOTOR CO.
2. Fill the transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION article .

   All Vehicles

3. Fill the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING  .
