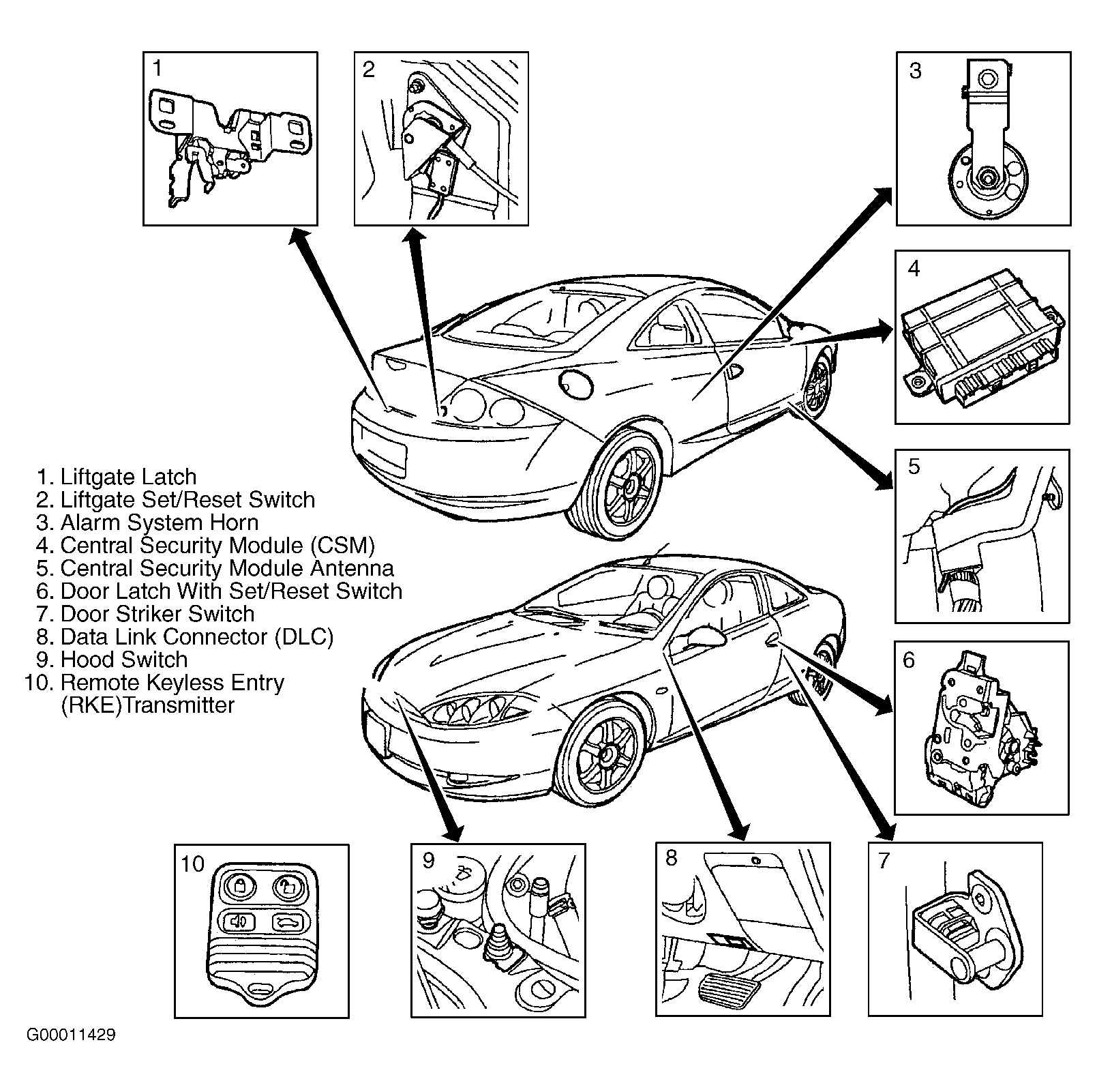

Component Locations
COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|
| Antenna For Remote Transmitter | Outside Of Wiring Harness, Under Passenger's Side Floor Covering | ||
| Central Security Module (1) | Behind & Above Passenger's Kick Panel | ||
| Data Link Connector (DLC) | Beneath Instrument Panel, Right Of Steering Column | ||
| Decklid Release Switch | Under Left Side Of Dash, Beneath Hood Release | ||
| Door Lock Switch | In Control Panel Of Both Doors | ||
| Hood Release | Under Left Side Of Dash, Near Driver's Door | ||
| Powertrain Control Module (PCM) | Right Side Of Engine Compartment, On Firewall | ||
|
|||
