Battery Junction Box

NOTE: Battery junction box is located on the driver's side of engine compartment, near battery. See Fig 1 and Fig 2 .
Fig 1: Locating Vehicle Electrical Components
G00100934Courtesy of FORD MOTOR CO.
Fig 2: Vehicle Electrical Components Legend
G00100935Courtesy of FORD MOTOR CO.

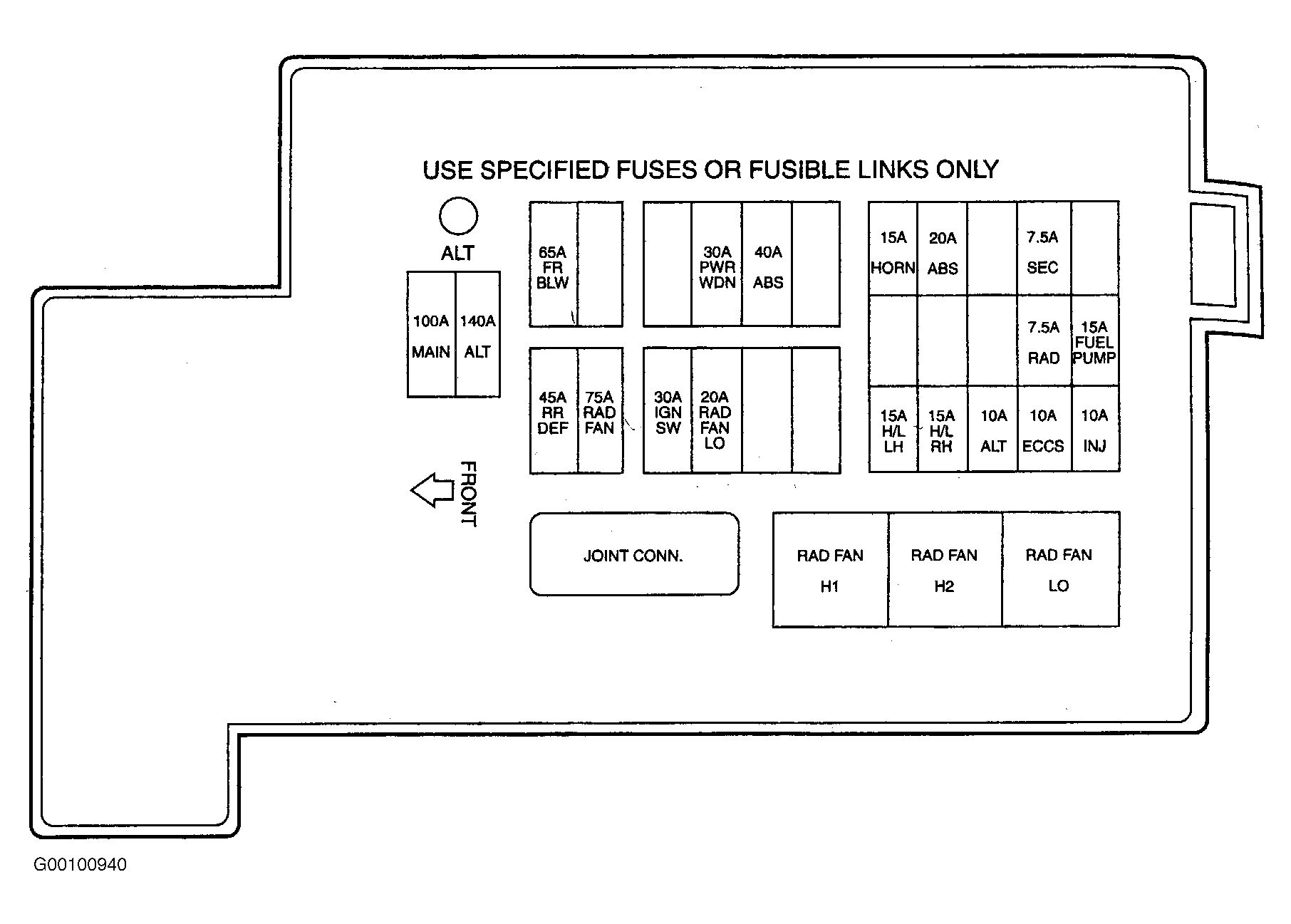

Fig 3: Identifying Battery Junction Box Components
G00100940Courtesy of FORD MOTOR CO.

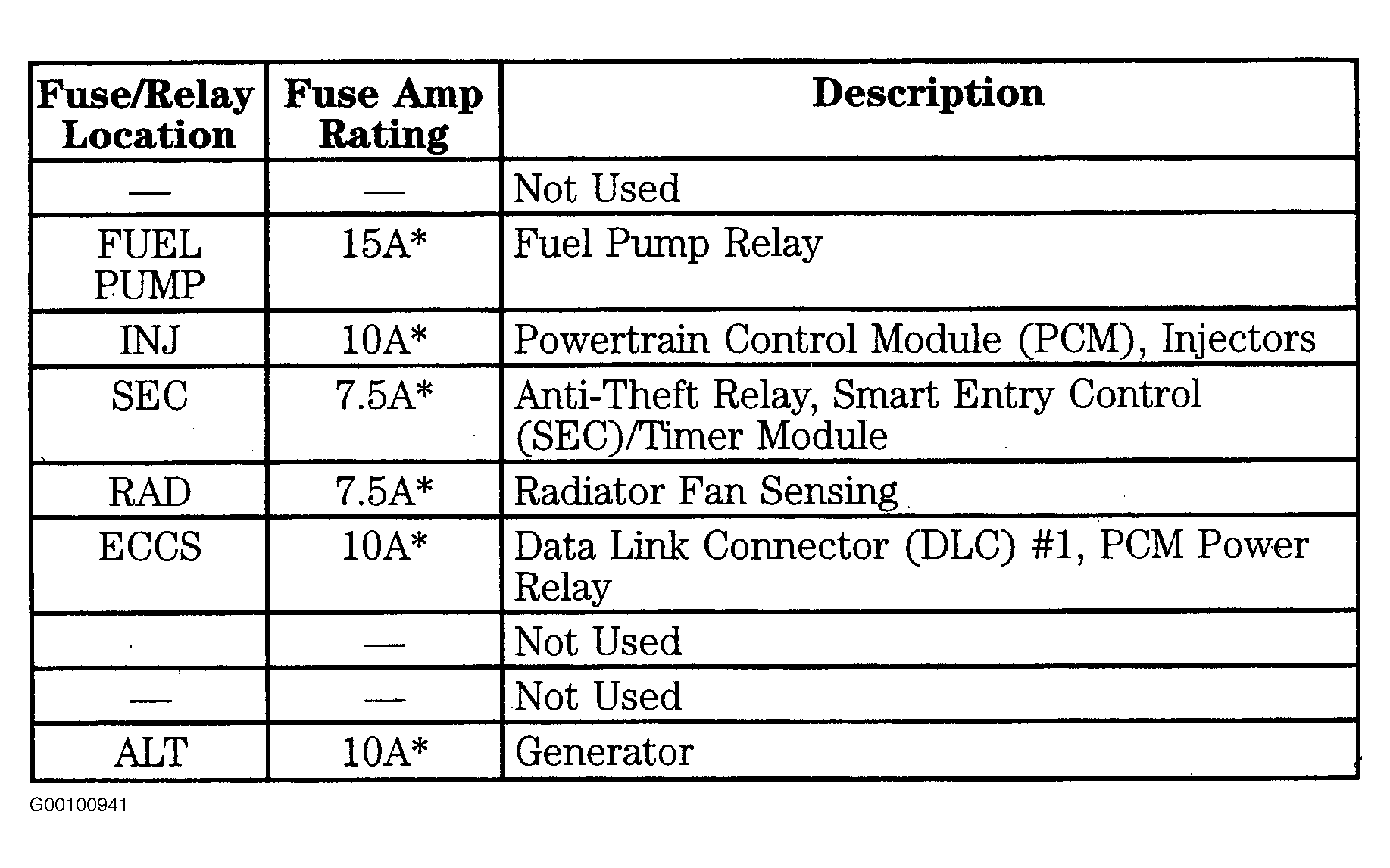

Fig 4: Battery Junction Box Legend (1 Of 2)
G00100941Courtesy of FORD MOTOR CO.

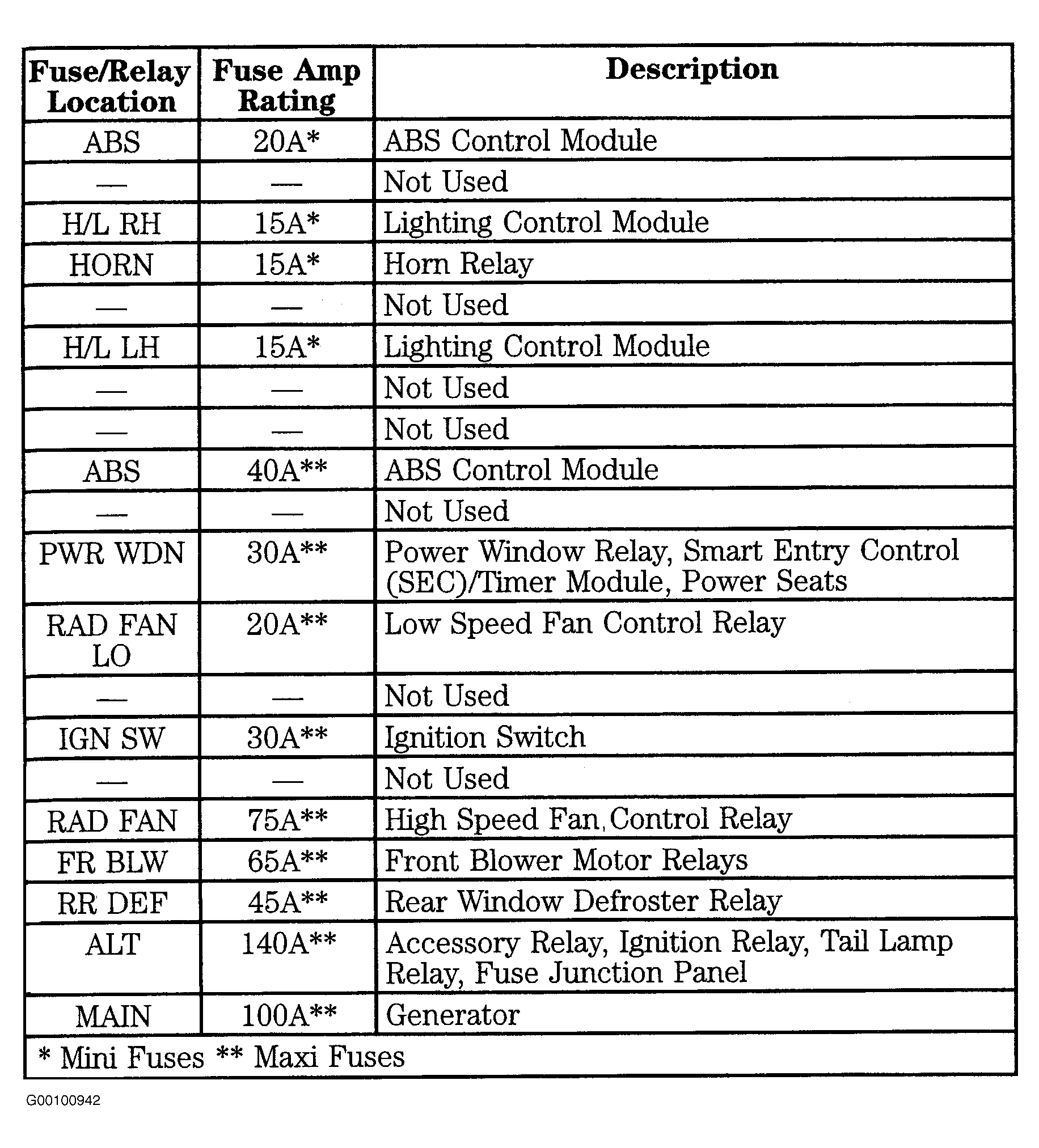

Fig 5: Battery Junction Box Legend (2 Of 2)
G00100942Courtesy of FORD MOTOR CO.
