Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Kick Panel

Fig 2: Rear Of Dash

Fig 3: Steering Column

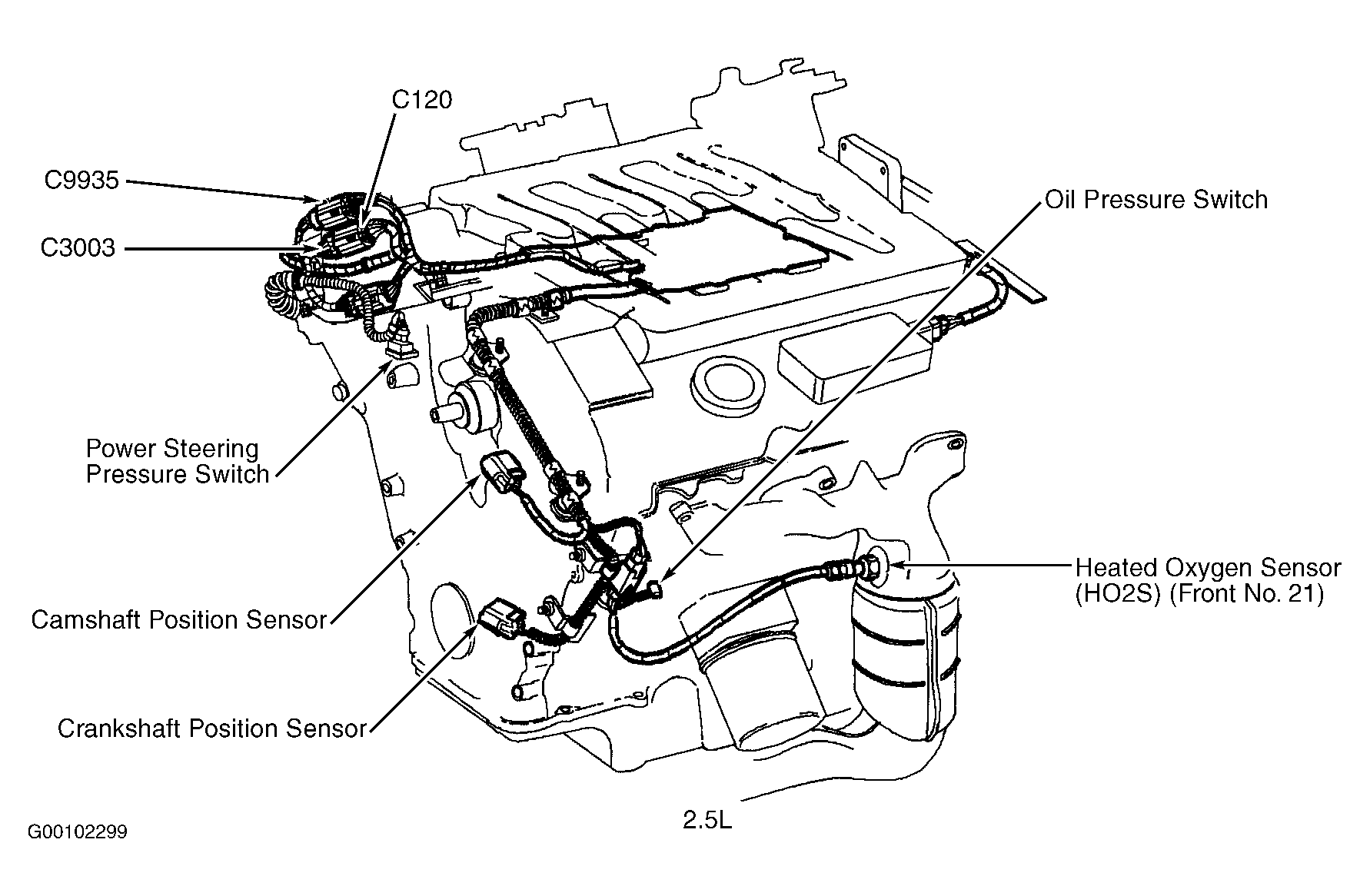

Fig 4: 2.5L Engine, Right Side

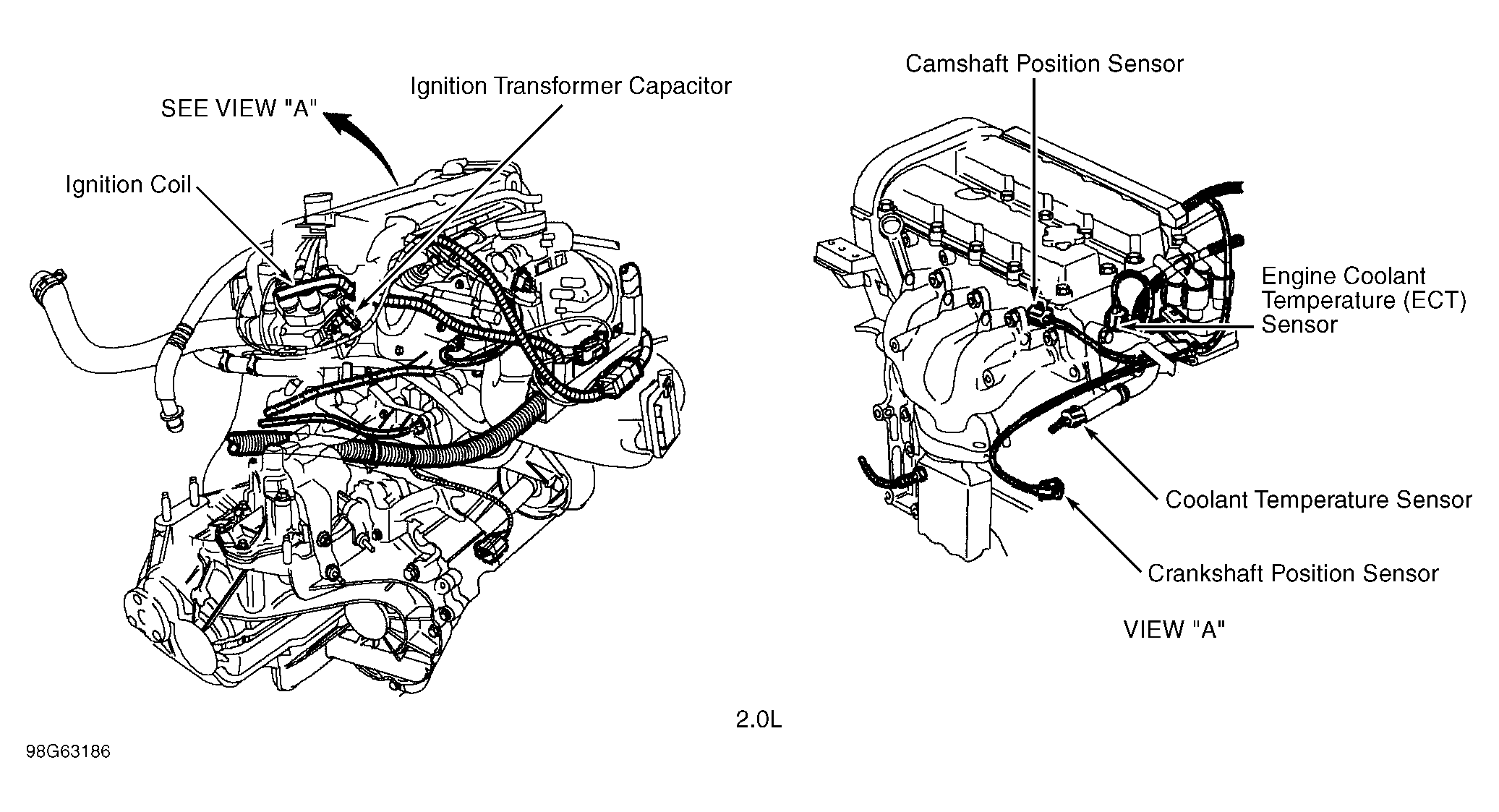

Fig 5: 2.0L Engine, Right Side

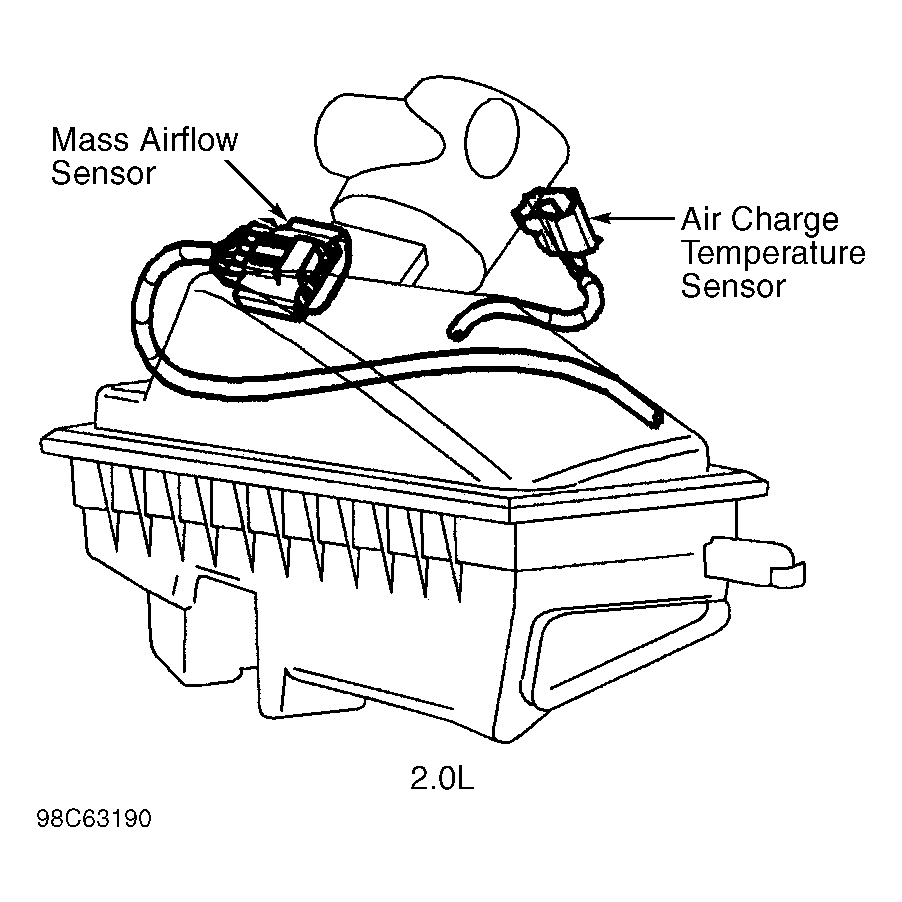

Fig 6: Air Cleaner Housing Assembly, 2.0L

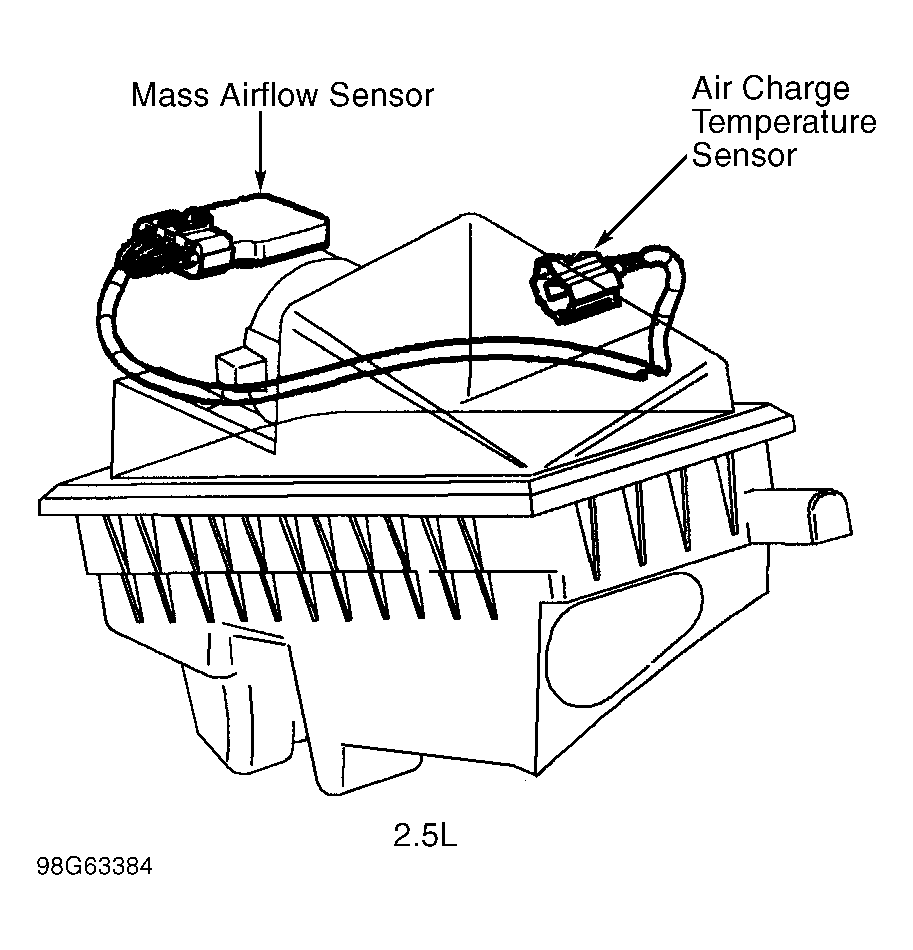

Fig 7: Air Cleaner Housing Assembly, 2.5L

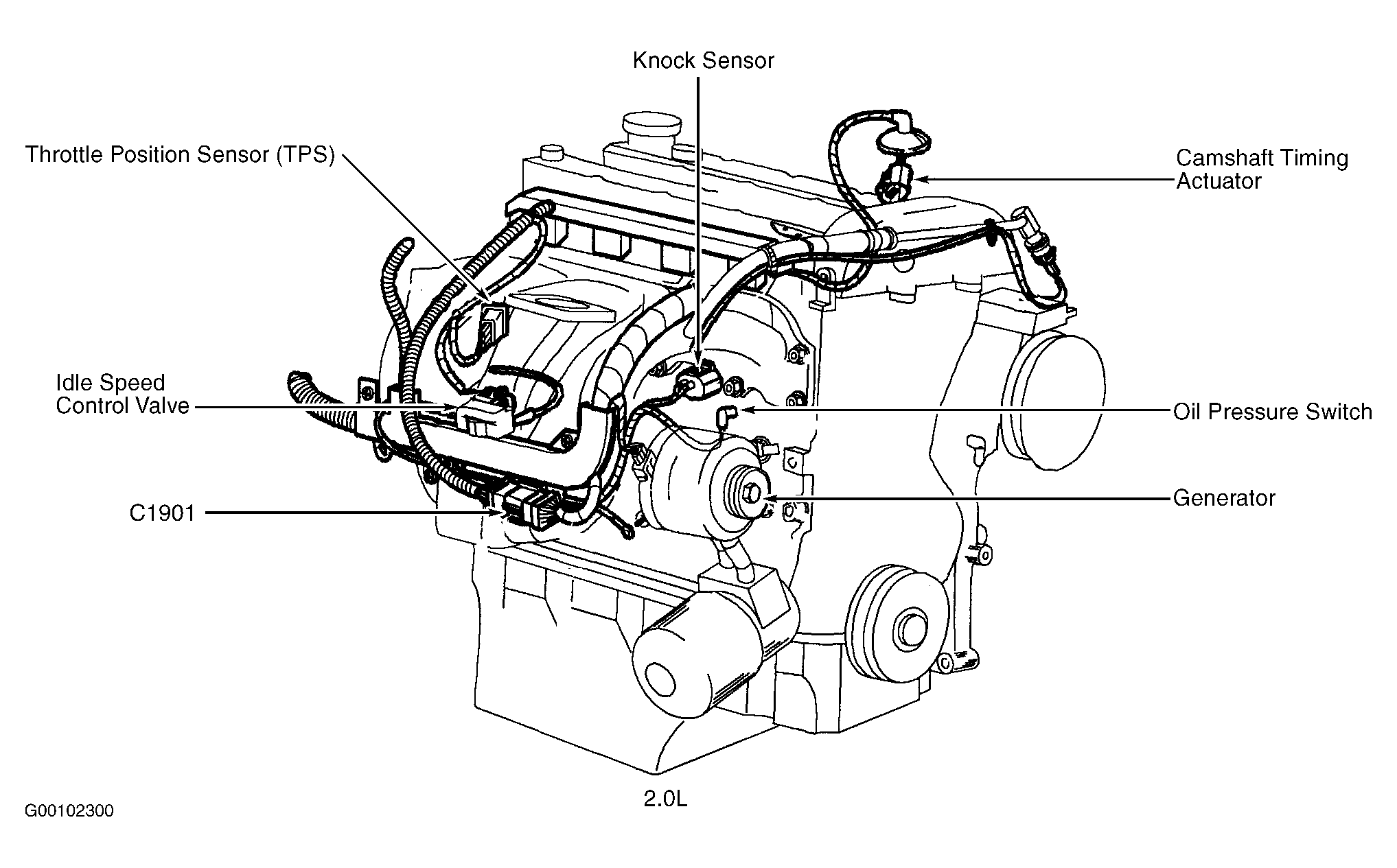

Fig 8: 2.0L Engine

Fig 9: 2.5L Engine, Left Side

Fig 10: Left Kick Panel
