Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Compressor Clutch Diode | Below left radiator cooling fan. |
| Battery Junction Box | Left front corner of engine compartment. |
| Central Junction Box | Under left side of dash. |

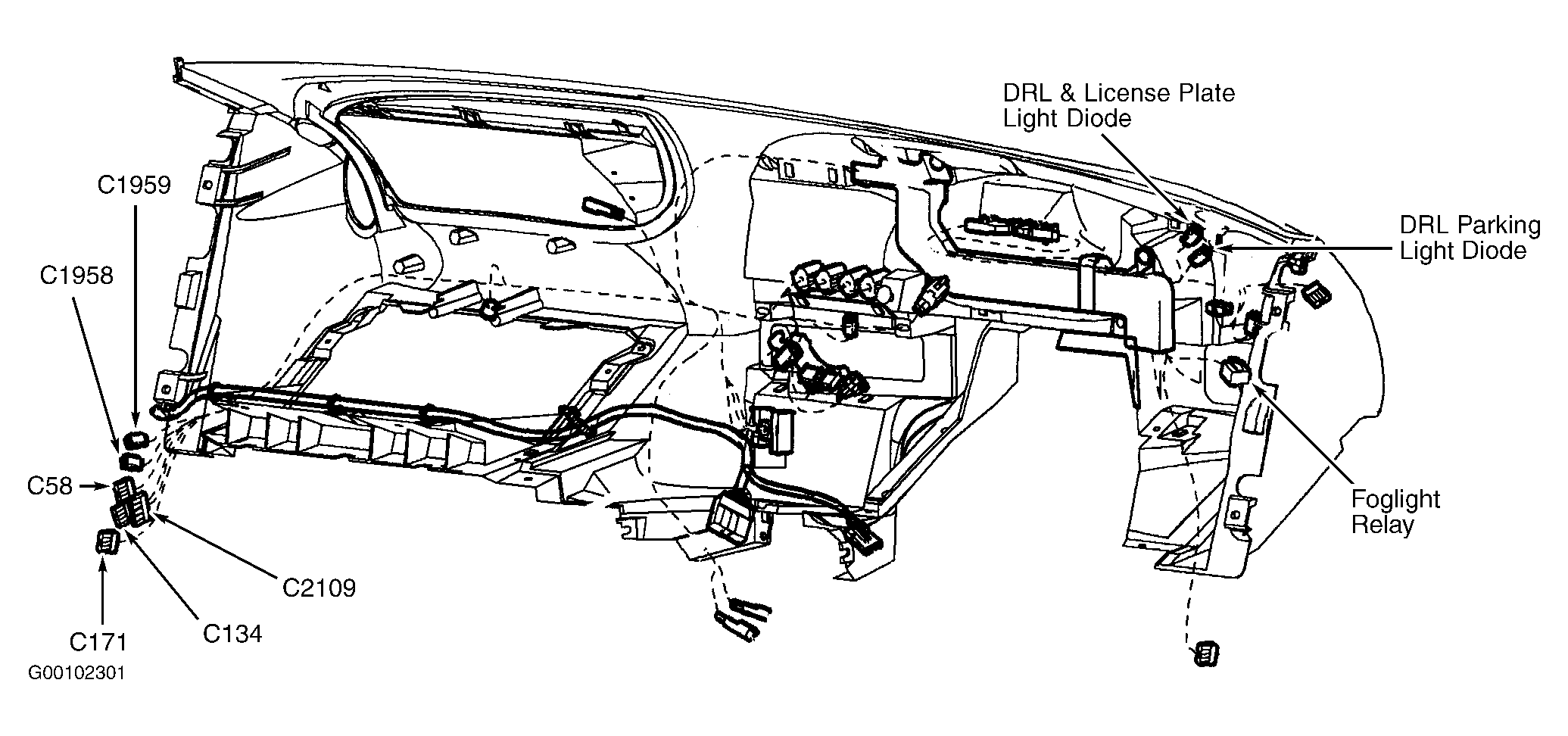

| DRL & License Plate Light Diode | On upper left side of dash. See Figure . |
| DRL Parking Light Diode | On upper left side of dash. See Figure . |
| Ignition Relay Diode | Under left side of dash, on central junction box. |
| Starter Relay Diode | Left front corner of engine compartment, in battery junction box. |
