Engine Compartment Fuse Panel Identification: Notes

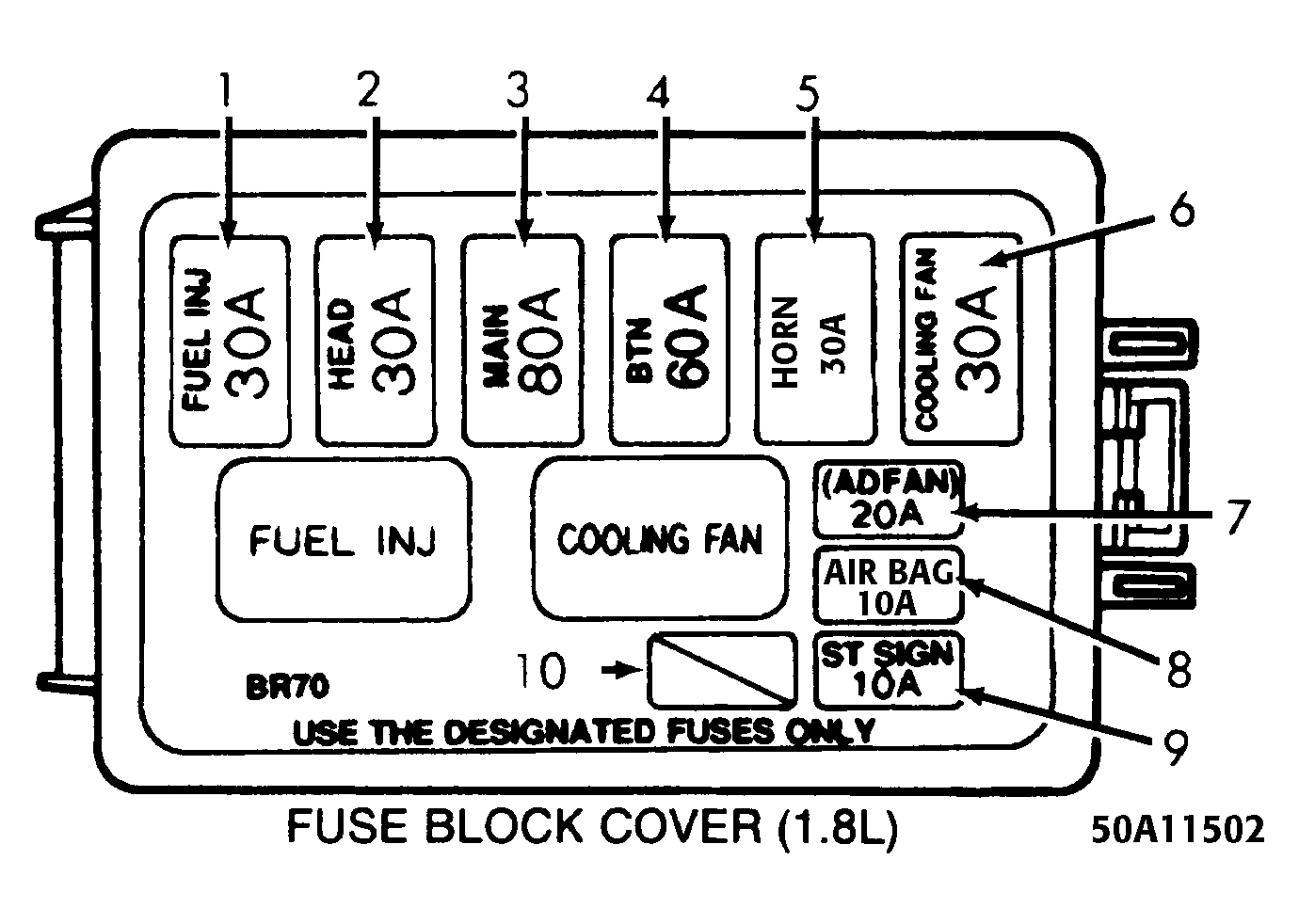

Fig 1: Underhood Main Fuse Block Identification (1.8L Engine)

Courtesy of FORD MOTOR CO.

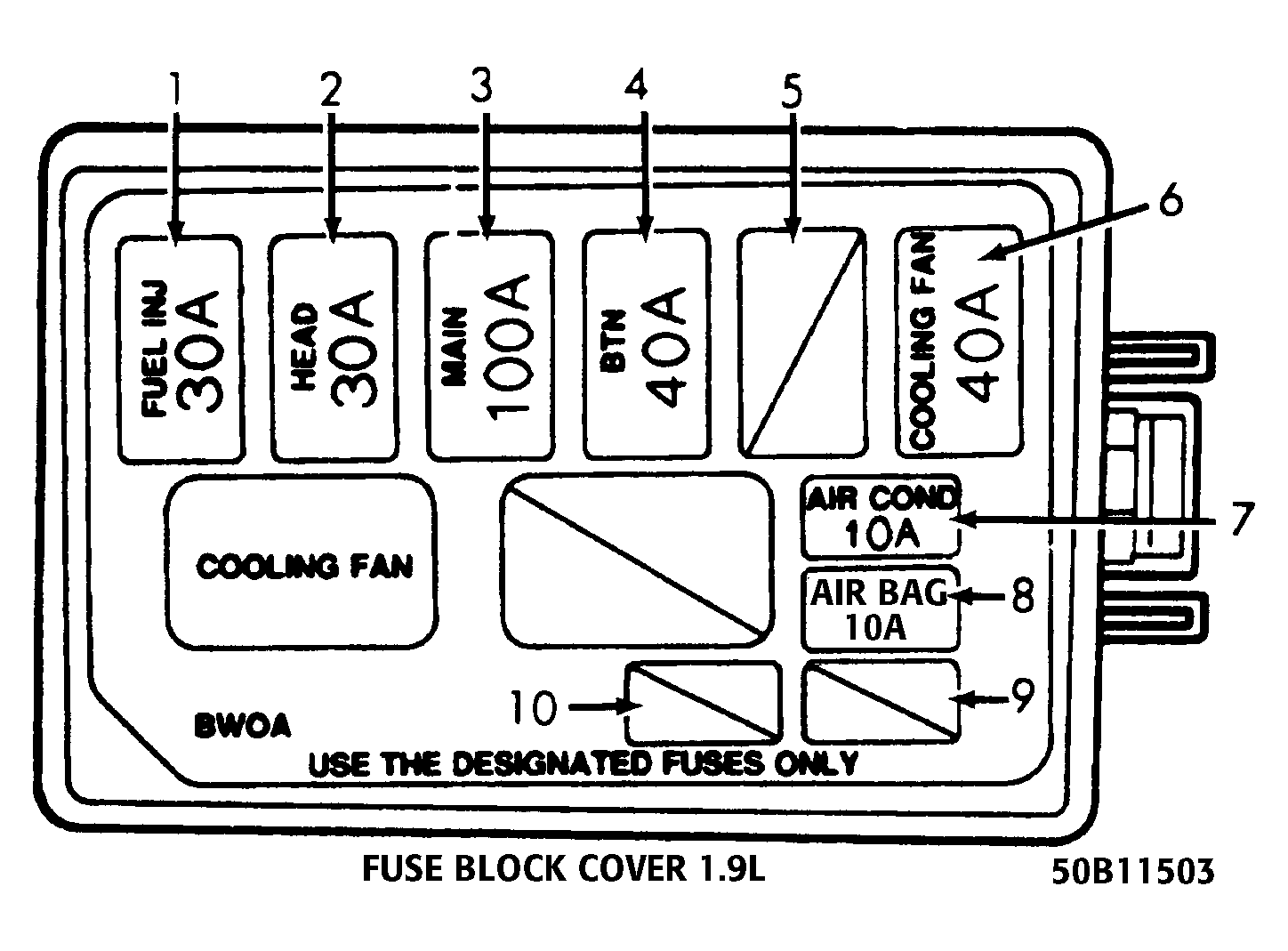

Fig 2: Underhood Main Fuse Block Identification (1.9L Engine)

Courtesy of FORD MOTOR CO.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
