Pin Voltage/PID Value Charts
Pin Voltage/PID Value Charts

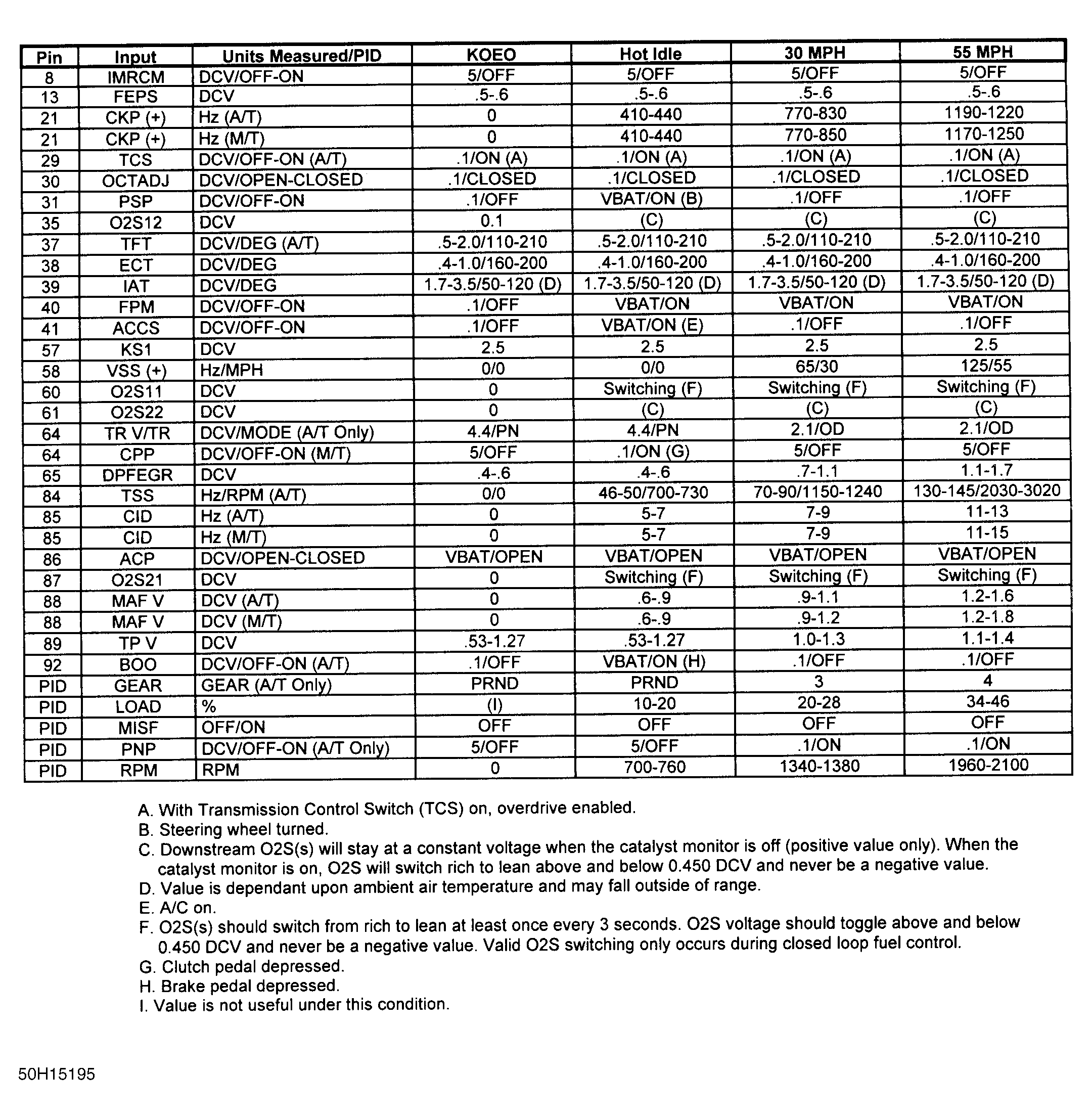

Fig 1: Pin Voltage/PID Values (Contour & Mystique - 2.0L - 1 Of 2)

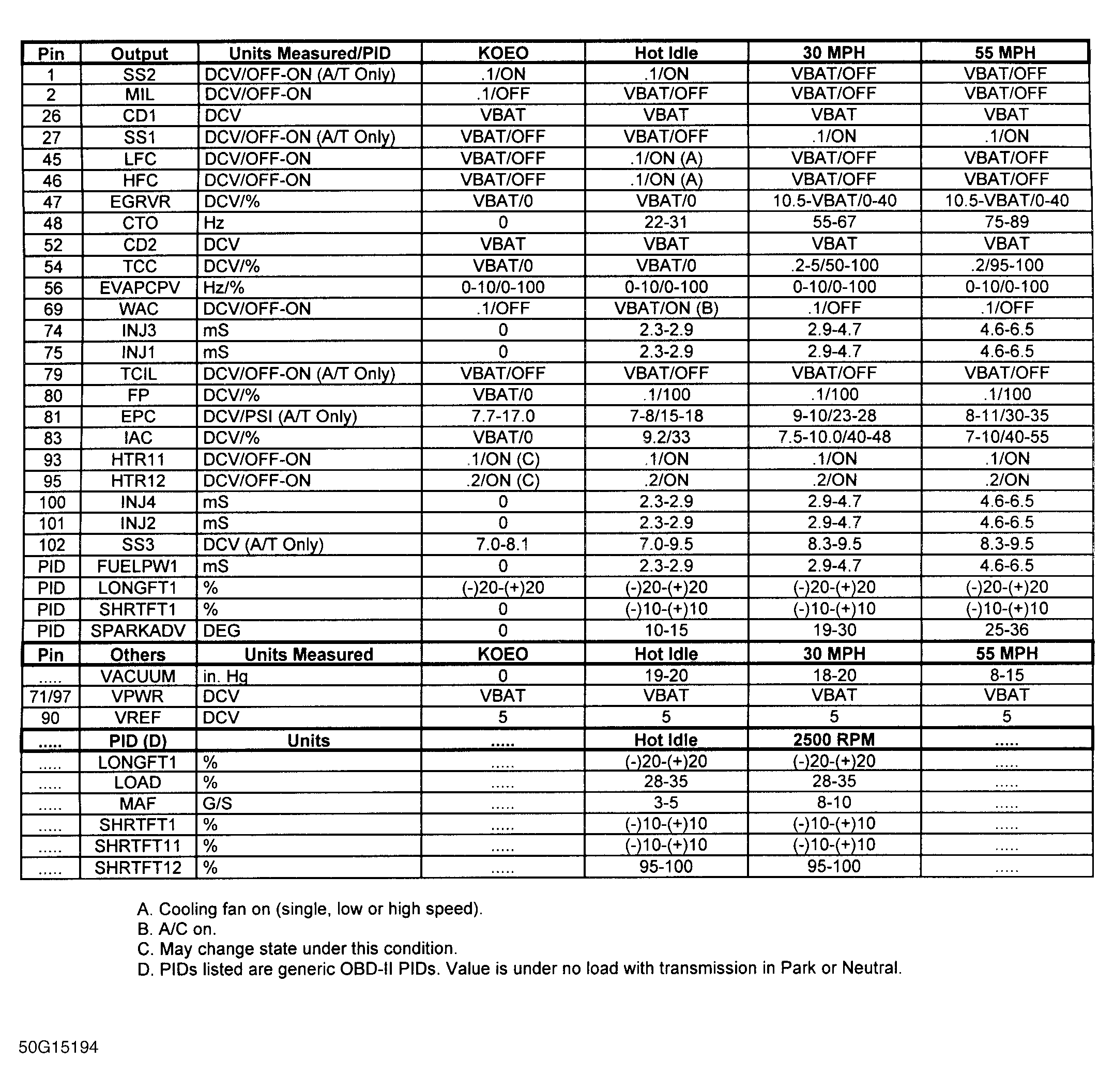

Fig 2: Pin Voltage/PID Values (Contour & Mystique - 2.0L - 2 Of 2)

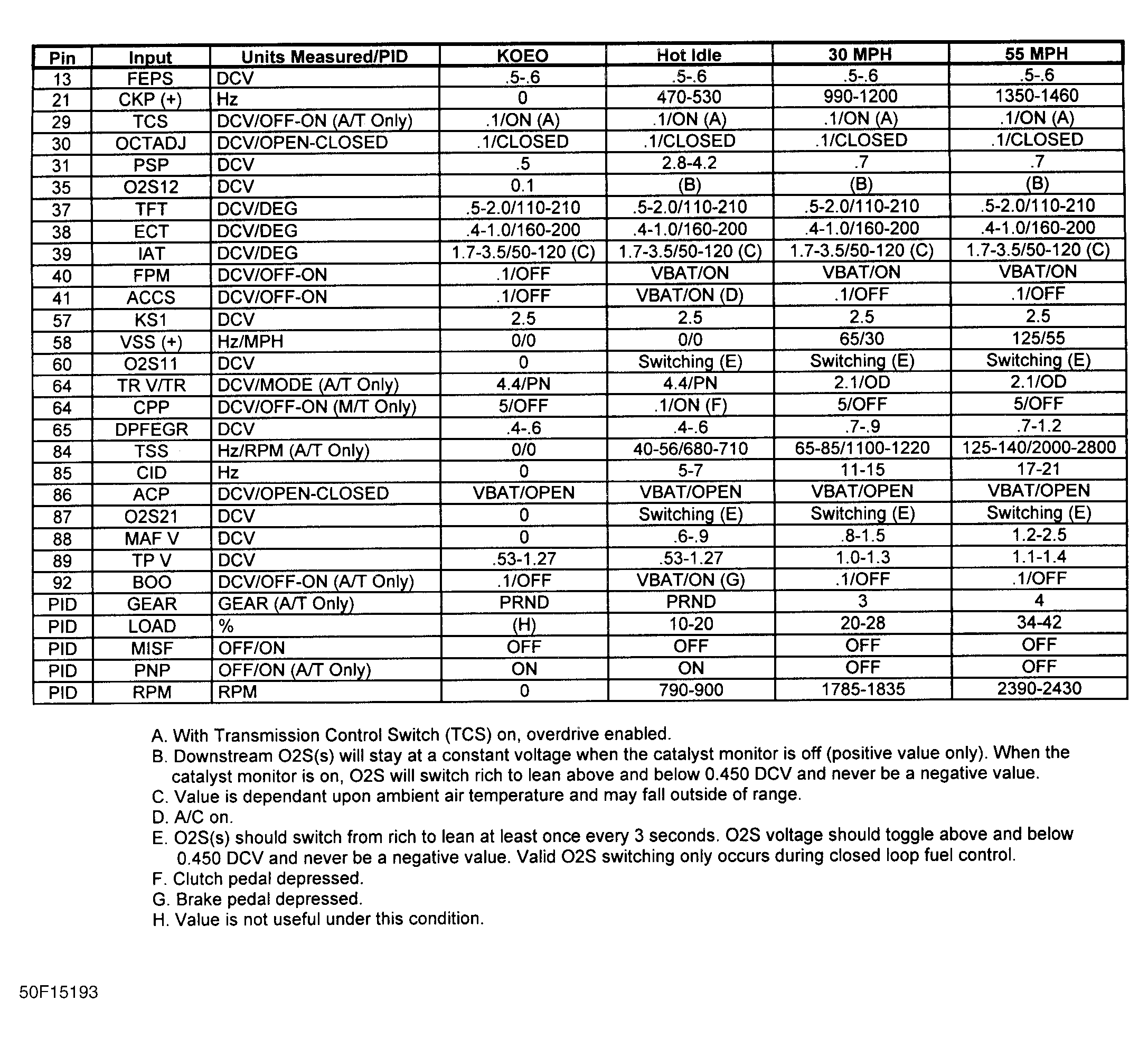

Fig 3: Pin Voltage/PID Values (Contour & Mystique - 2.5 M/T - 1 Of 2)

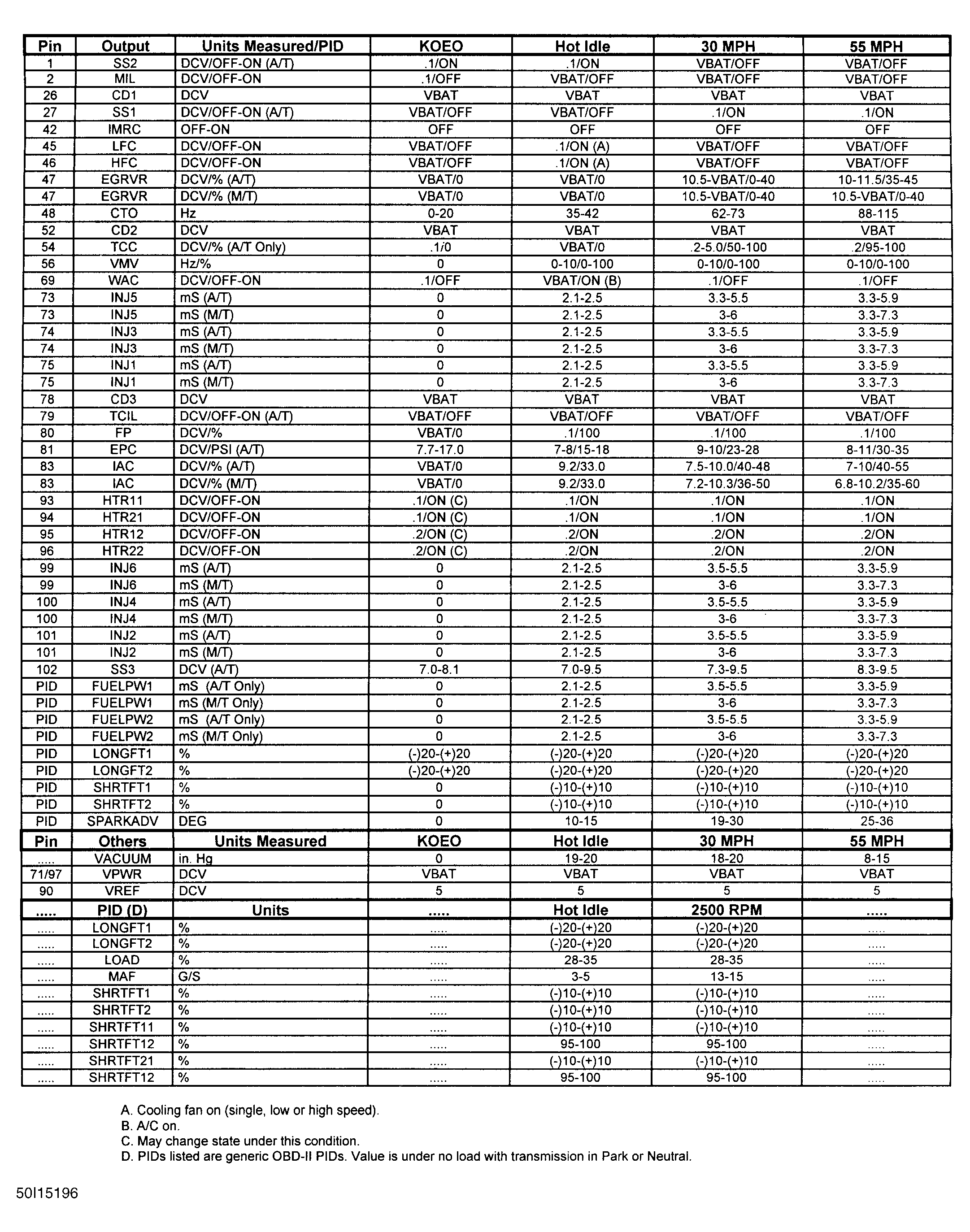

Fig 4: Pin Voltage/PID Values (Contour & Mystique - 2.5L M/T - 2 Of 2)
