Constant Control Relay Module

NOTE: Constant control relay module (CCRM) is located in right front of engine compartment, mounted to upper radiator support. See Fig 1 or Fig 2 .

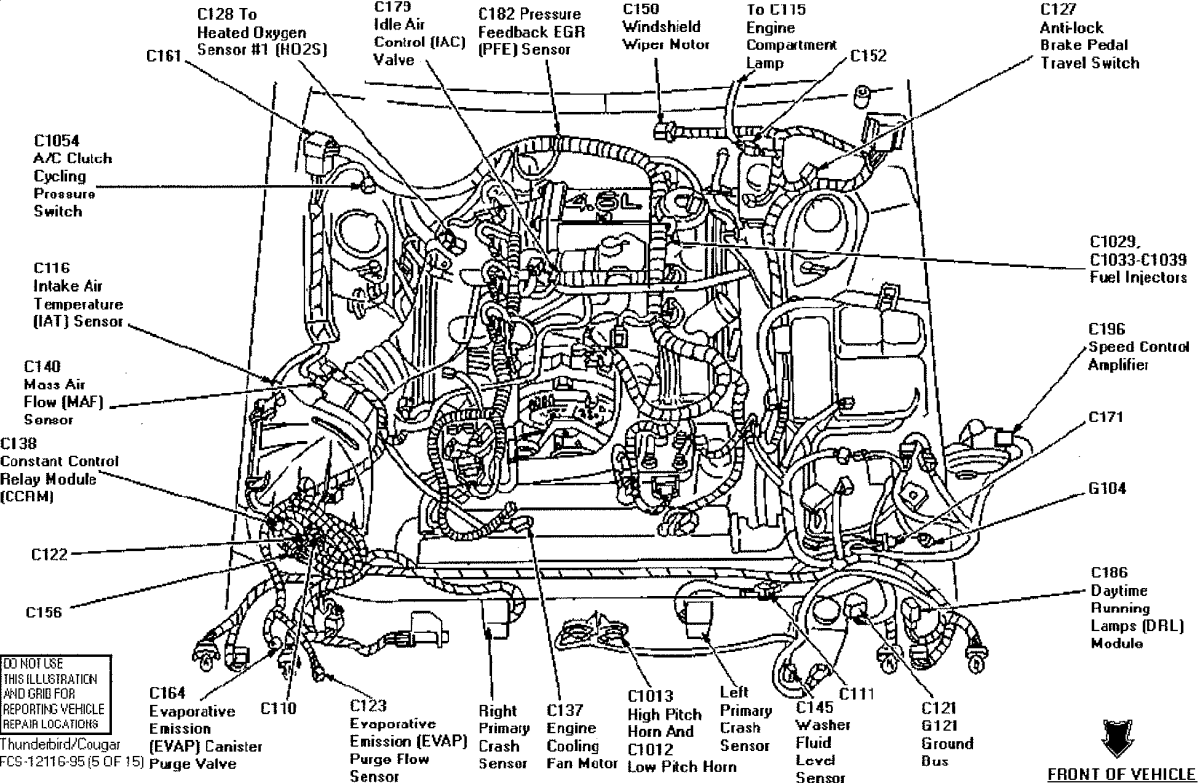

Fig 1: Locating Engine Compartment Electrical Components (3.8L)

Courtesy of FORD MOTOR CO.

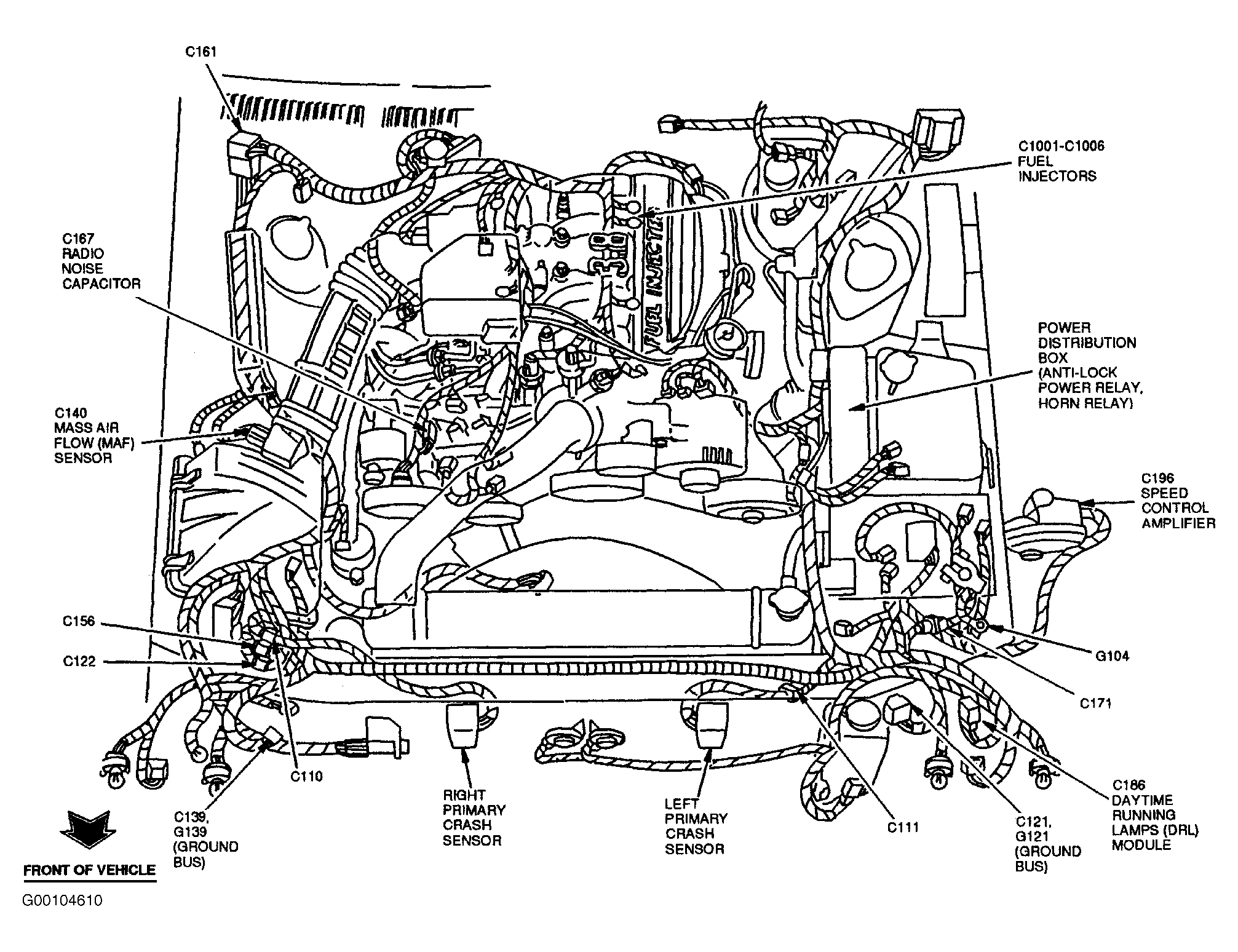

Fig 2: Locating Engine Compartment Electrical Components (4.6L)

Courtesy of FORD MOTOR CO.
