Hub/Bearing Assembly: Reassembly

  1. Use a press and Dust Shield Replacer T87C-1175-B to press the bearing into the hub with Pinion Bearing Cup Replacer T80T-4000-E. See Fig 3 .
  2. Install the snap ring in the hub/bearing assembly. See Fig 1 .
  3. Install the hub/bearing assembly. See HUB/BEARING ASSEMBLY  under REMOVAL & INSTALLATION.

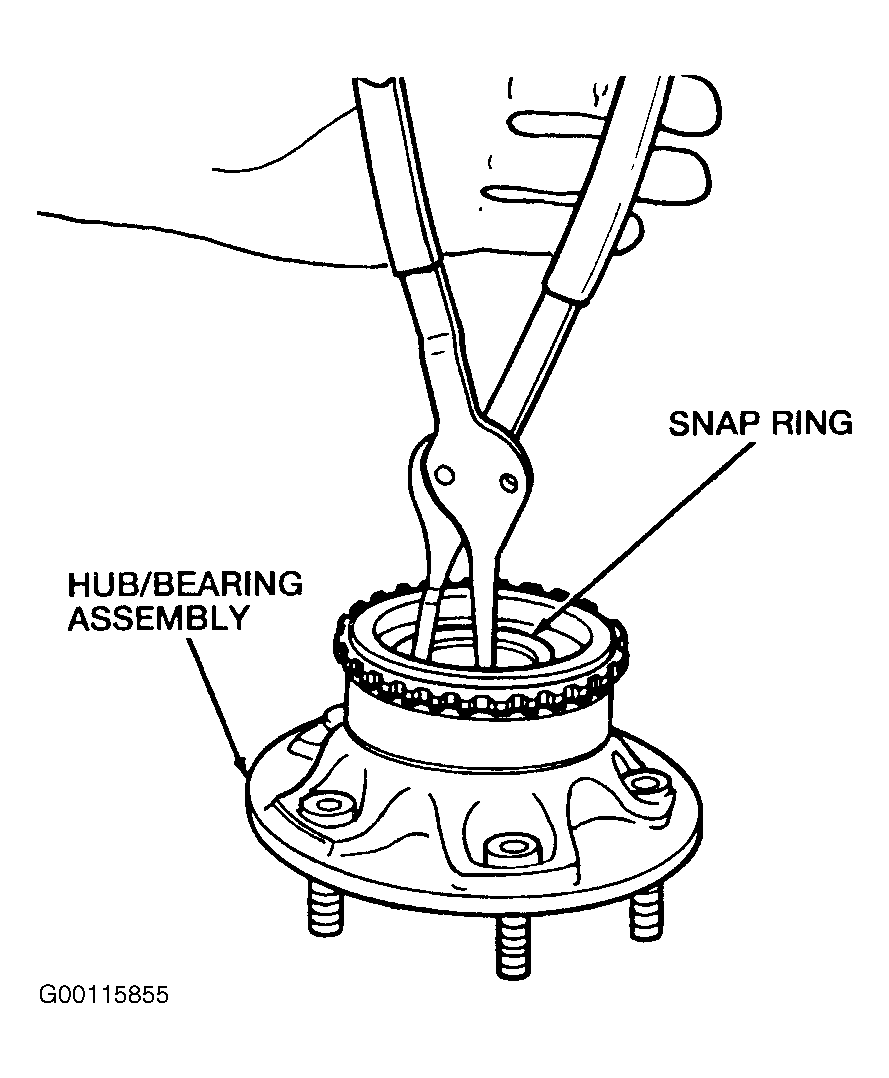

Fig 1: Hub/Bearing Snap Ring Replacement
G00115855Courtesy of FORD MOTOR CO.

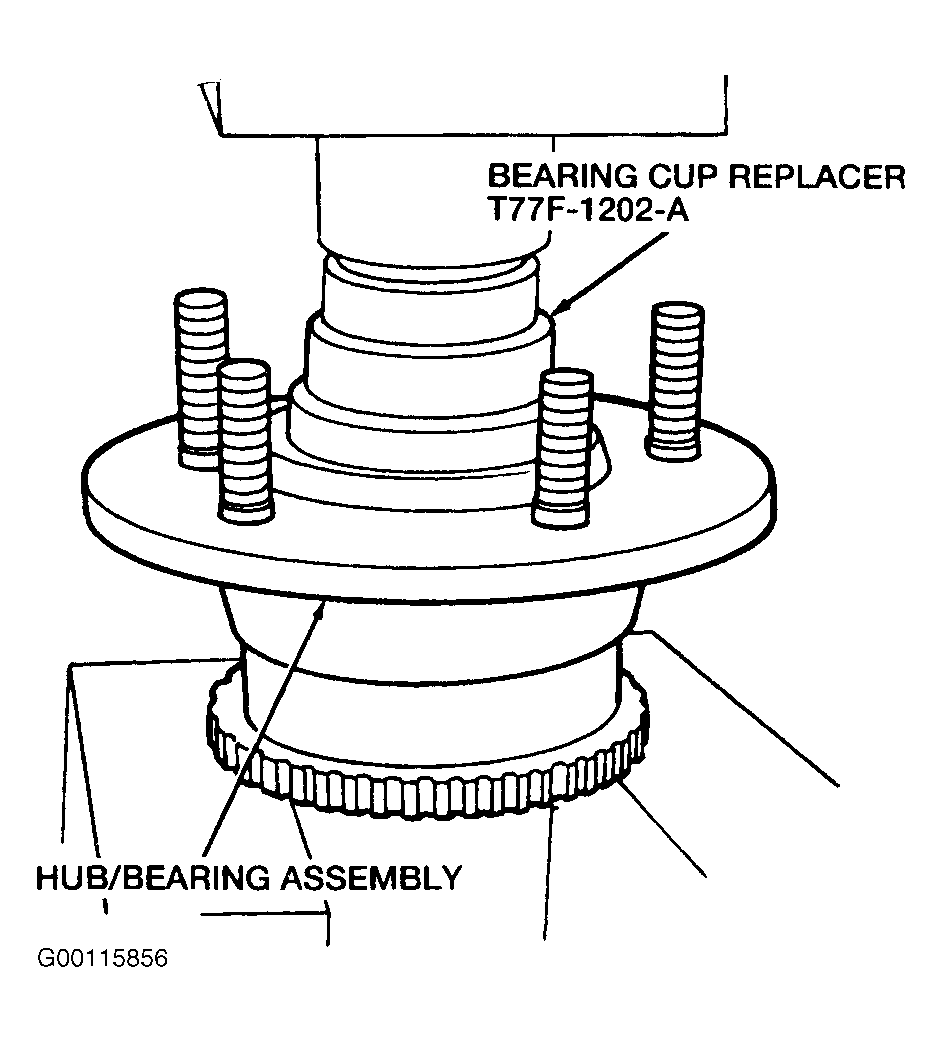

Fig 2: Pressing Bearing From Hub
G00115856Courtesy of FORD MOTOR CO.

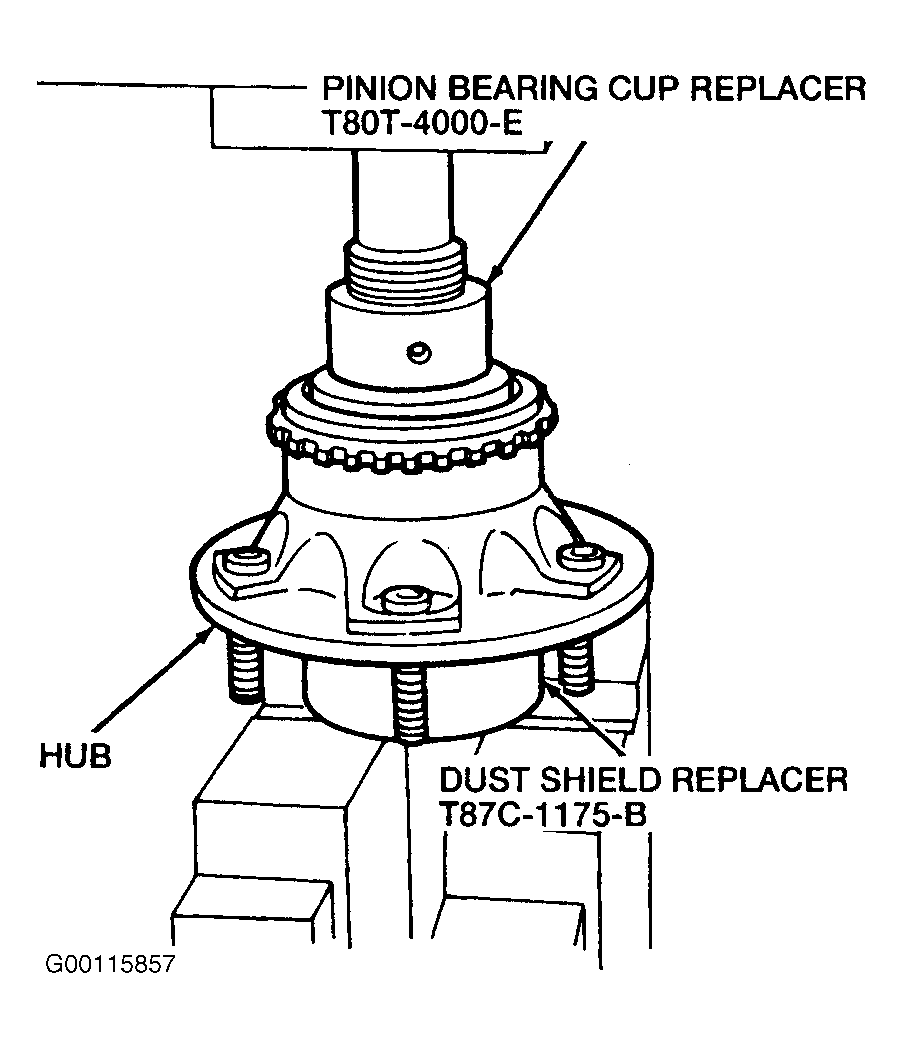

Fig 3: Pressing Bearing Into Hub
G00115857Courtesy of FORD MOTOR CO.
