Seat Back Control Switch
- Remove the left hand seat back control switch.

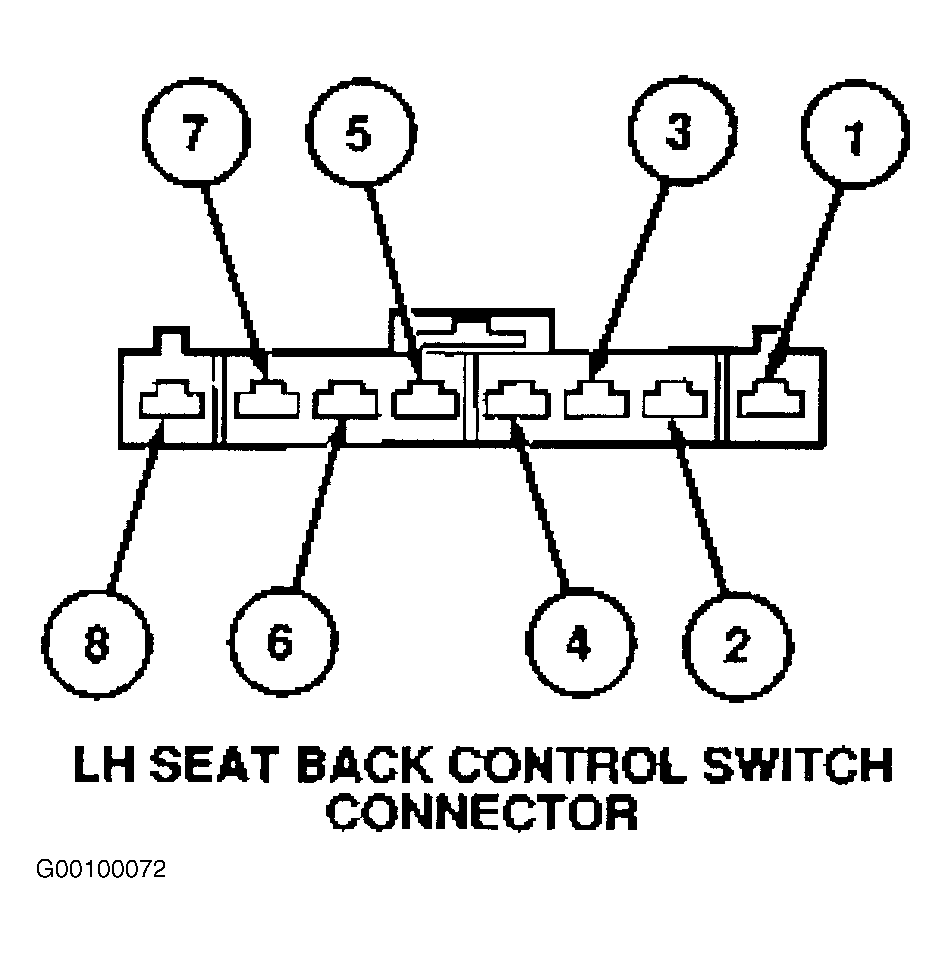

- Measure the resistance between the terminals on the left hand seat back control switch as indicated. See SEAT BACK CONTROL SWITCH TEST . See Fig 1 .
- If the resistances are not specified, replace the left hand seat control switch. Otherwise, return to the SYMPTOM INDEX .
SEAT BACK CONTROL SWITCH TEST
| Switch | Position | Terminals | Resistance (Ohms) |
|---|---|---|---|
| Sliding | Forward | 8-3, 7-6 | Less Than 5 |
| Sliding | Neutral | 8-6, 7-6 | Less Than 5 |
| Sliding | Reverse | 7-3, 8-6 | Less Than 5 |
| Lifting | Up | 4-3, 6-5 | Less Than 5 |
| Lifting | Neutral | 6-4, 6-5 | Less Than 5 |
| Lifting | Down | 5-3, 6-4 | Less Than 5 |
| Reclining | Up | 3-2, 6-1 | Less Than 5 |
| Reclining | Neutral | 6-2, 6-1 | Less Than 5 |
| Reclining | Down | 3-1, 6-2 | Less Than 5 |
