Component Locations

COMPONENT LOCATIONS

Component Location
Diode Junction Box Behind Top Left Hand Side Of Instrument Panel, Taped To Main Harness. See Fig 1 .
Ground G200 Top Of Left Hand Cowl, Near Door Grommet. See Fig 2 .
Instrument Fuse/Relay Panel Behind Left Hand Side Of Instrument Panel, Left Of Steering Column. See Fig 1 .
Left Power Mirror Top Front Of Left Hand Front Door
Right Power Mirror Top Front Of Right Hand Front Door
Power Mirror Switch Left Hand Side Of Instrument Panel, Left Of Steering Column

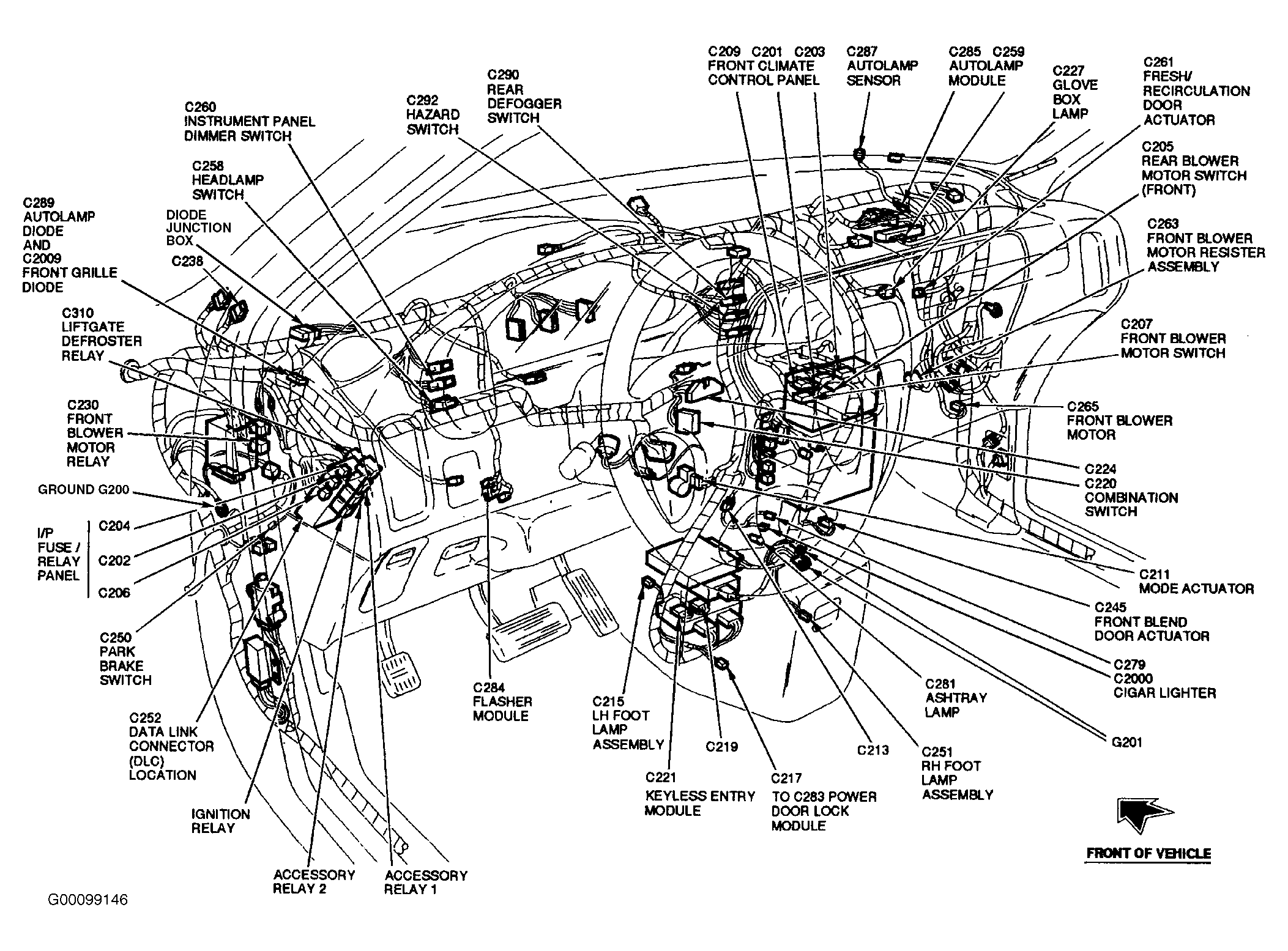

Fig 1: Locating Power Mirror Switch, Diode Junction Box & I/P Fuse/Relay Panel
G00099146Courtesy of FORD MOTOR CO.

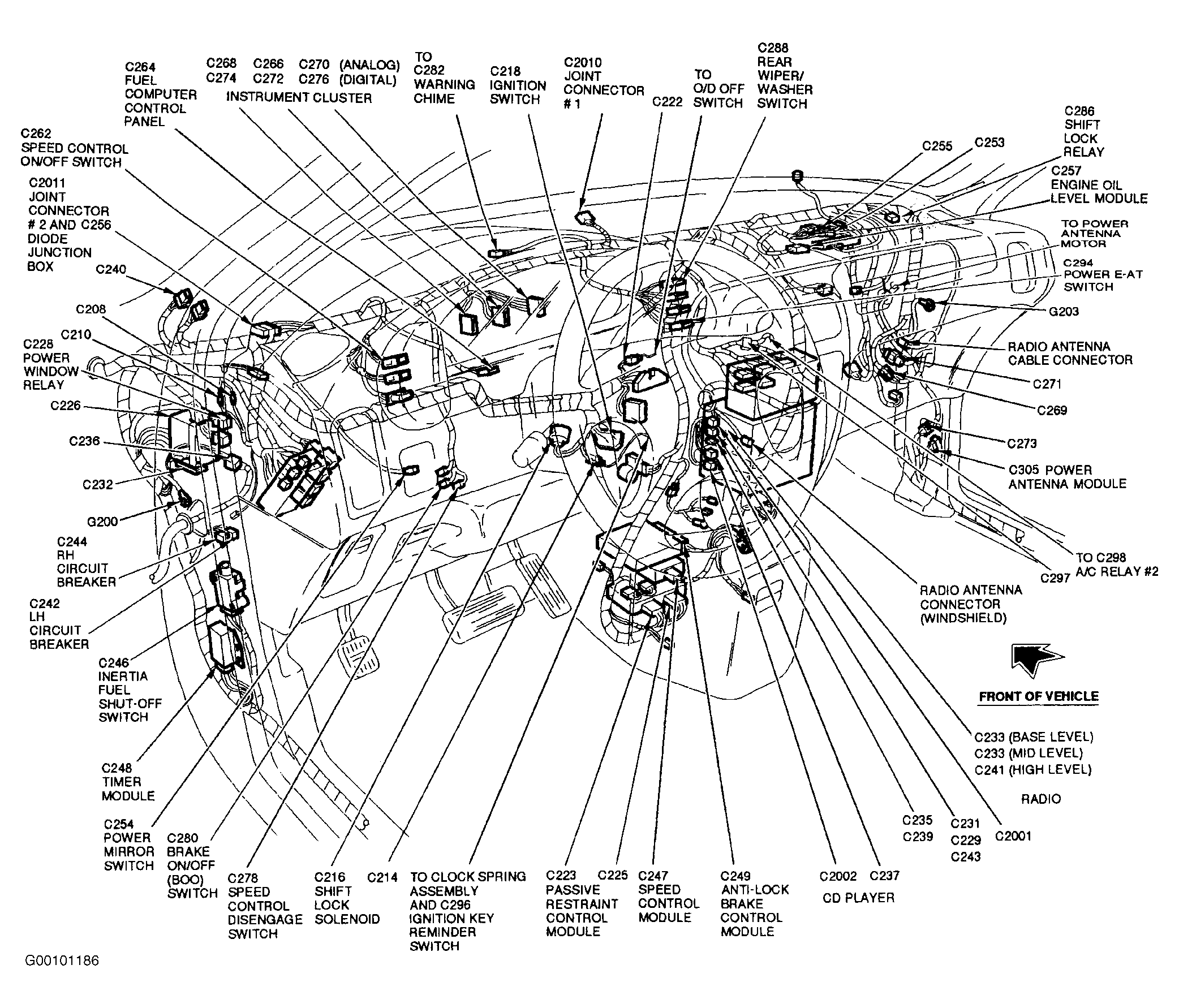

Fig 2: Locating Ground G200
G00101186Courtesy of FORD MOTOR CO.
