Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| In-Line Fuse | ||

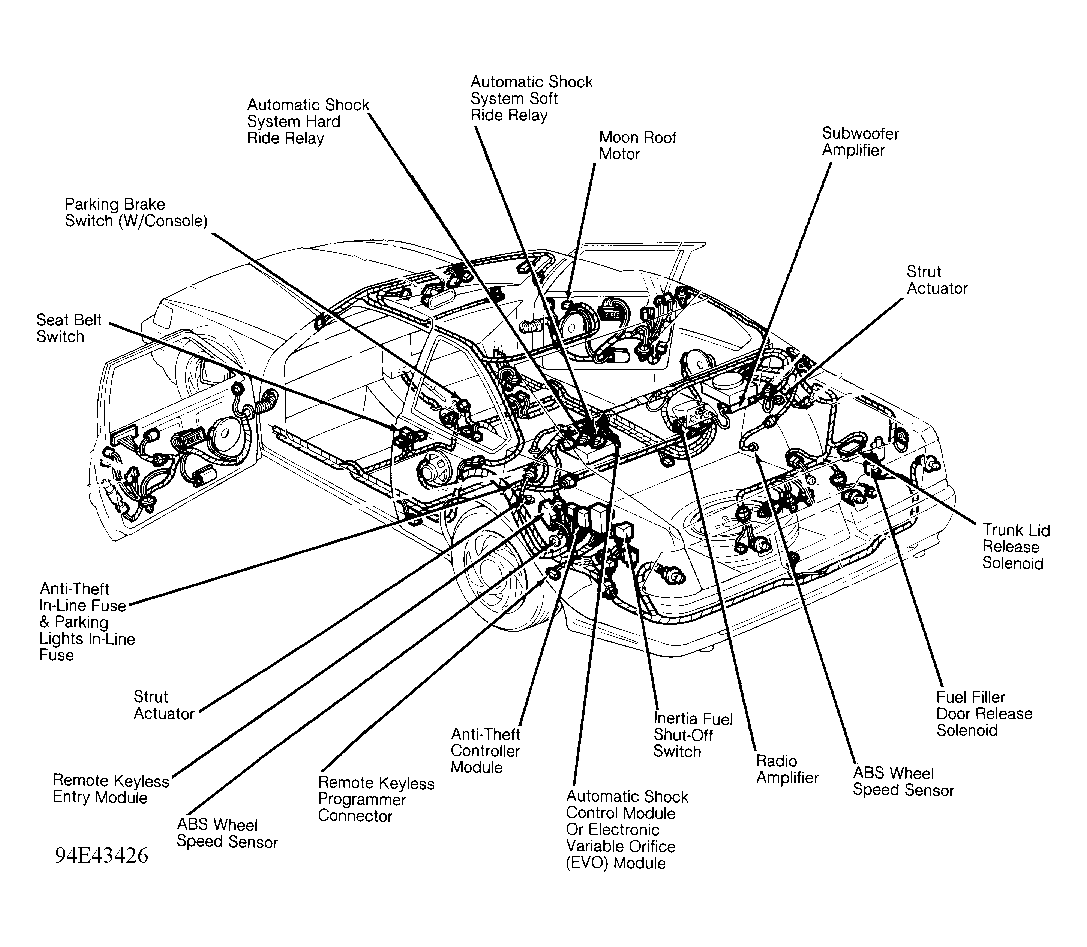

| Anti-Theft Or Parking Lights | In left front of trunk, taped to window regulator jumper harness. See Figure. | |

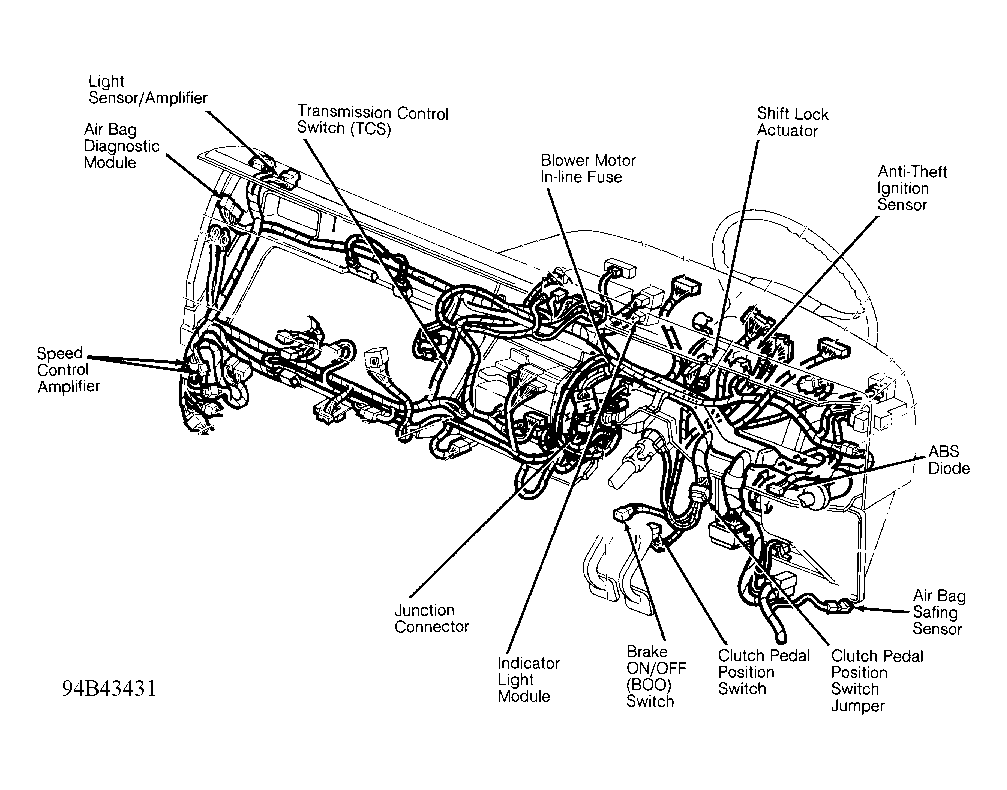

| Blower Motor | Behind left side of dash, taped to wiring harness. See Figure. | |
| Cooling Fan (4.6L) | In engine control sensor harness, at tie-off to IRCM. | |
| Junction Blocks | ||

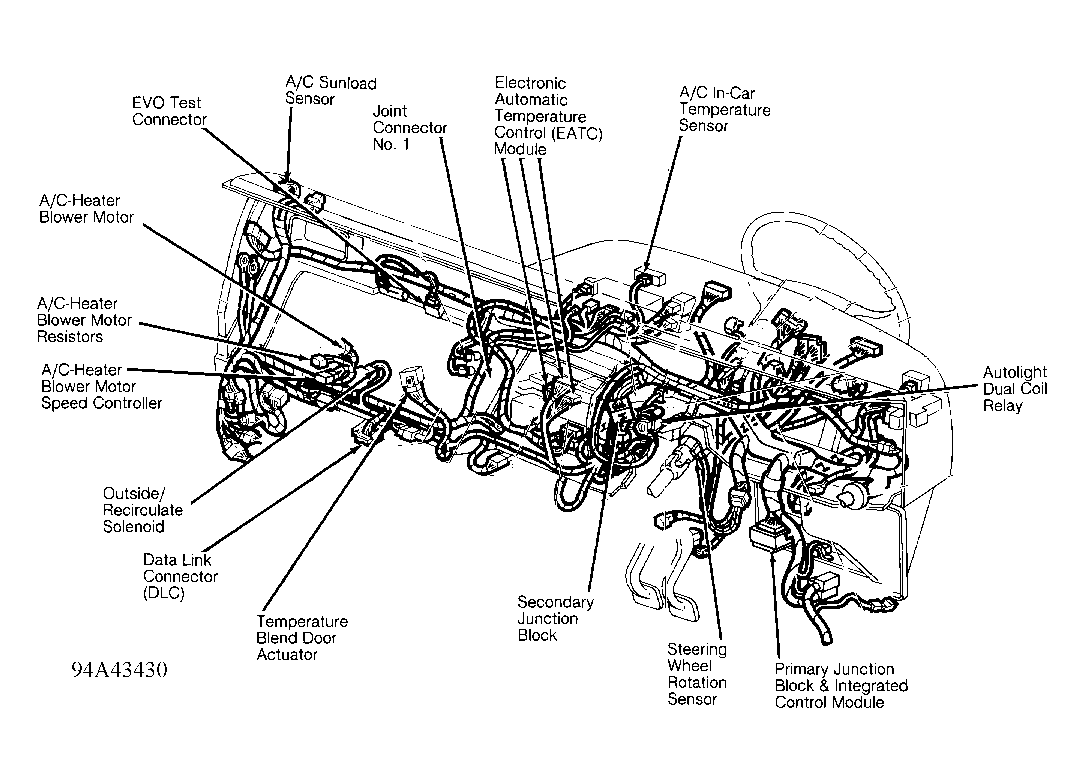

| Primary | Behind dash, left of steering column. See Figure. | |
| Secondary | Behind dash, right of steering column. See Figure. | |
| Power Distribution Block | ||

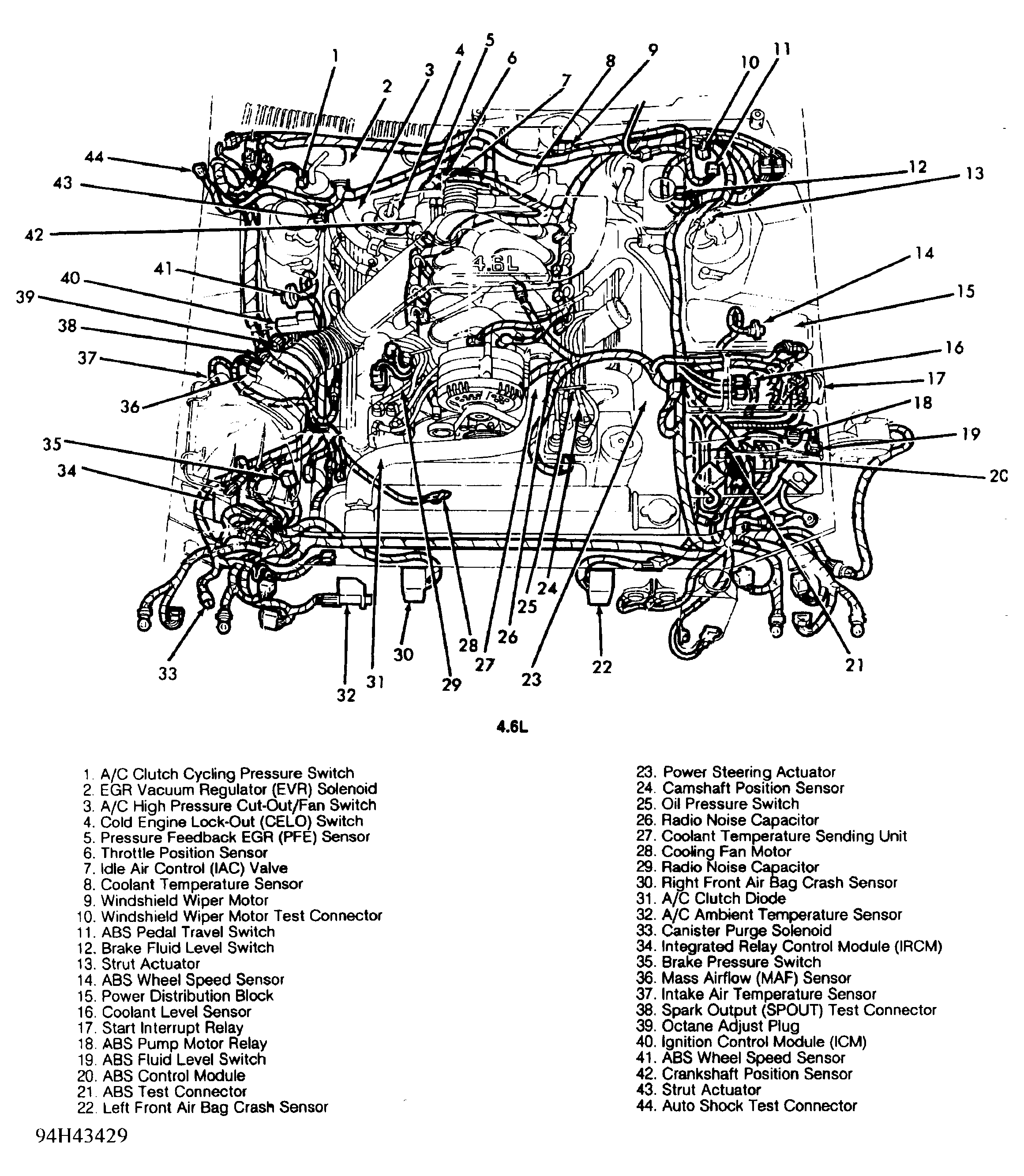

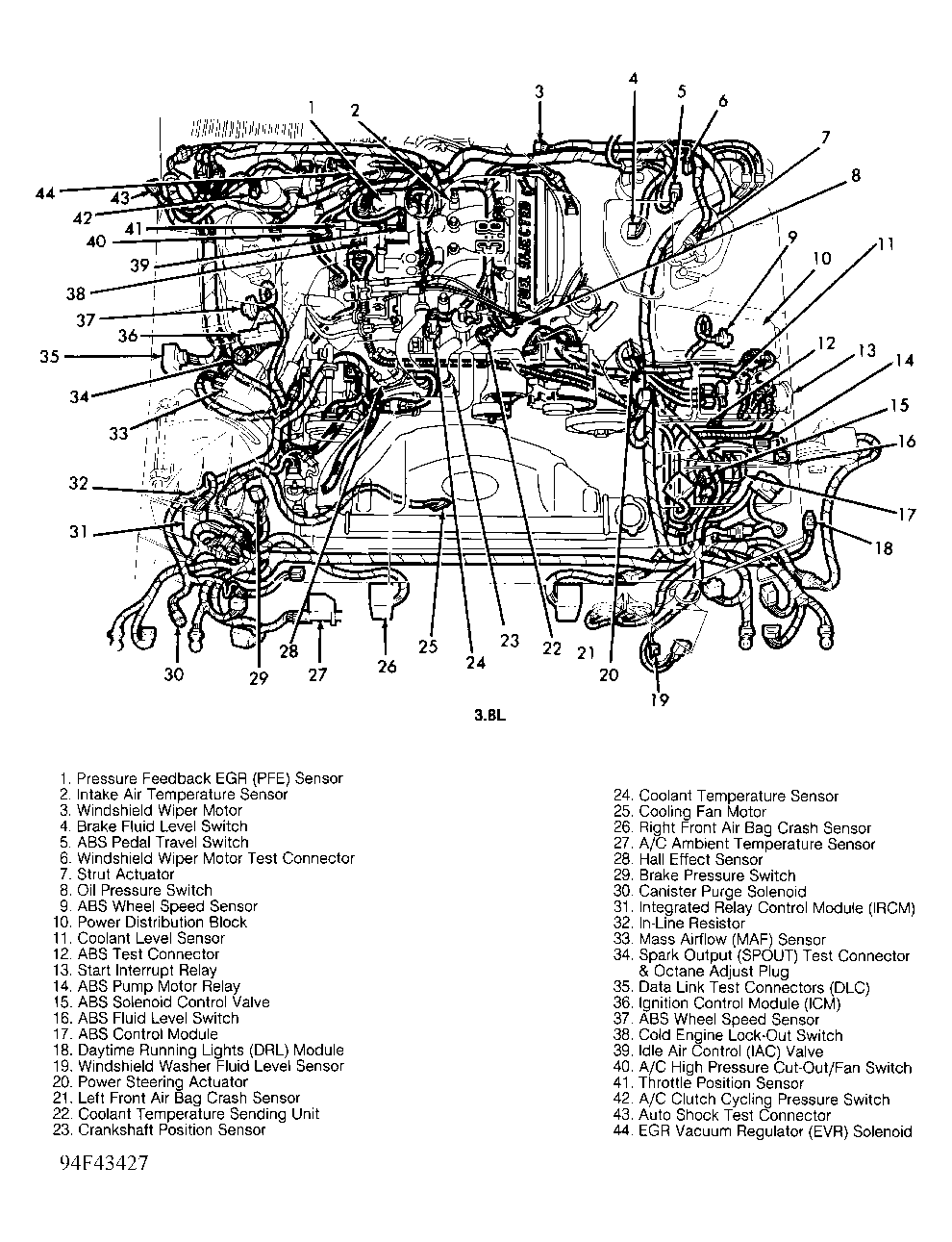

| 3.8L | On left front inner fender panel, behind battery. See Figure. | |

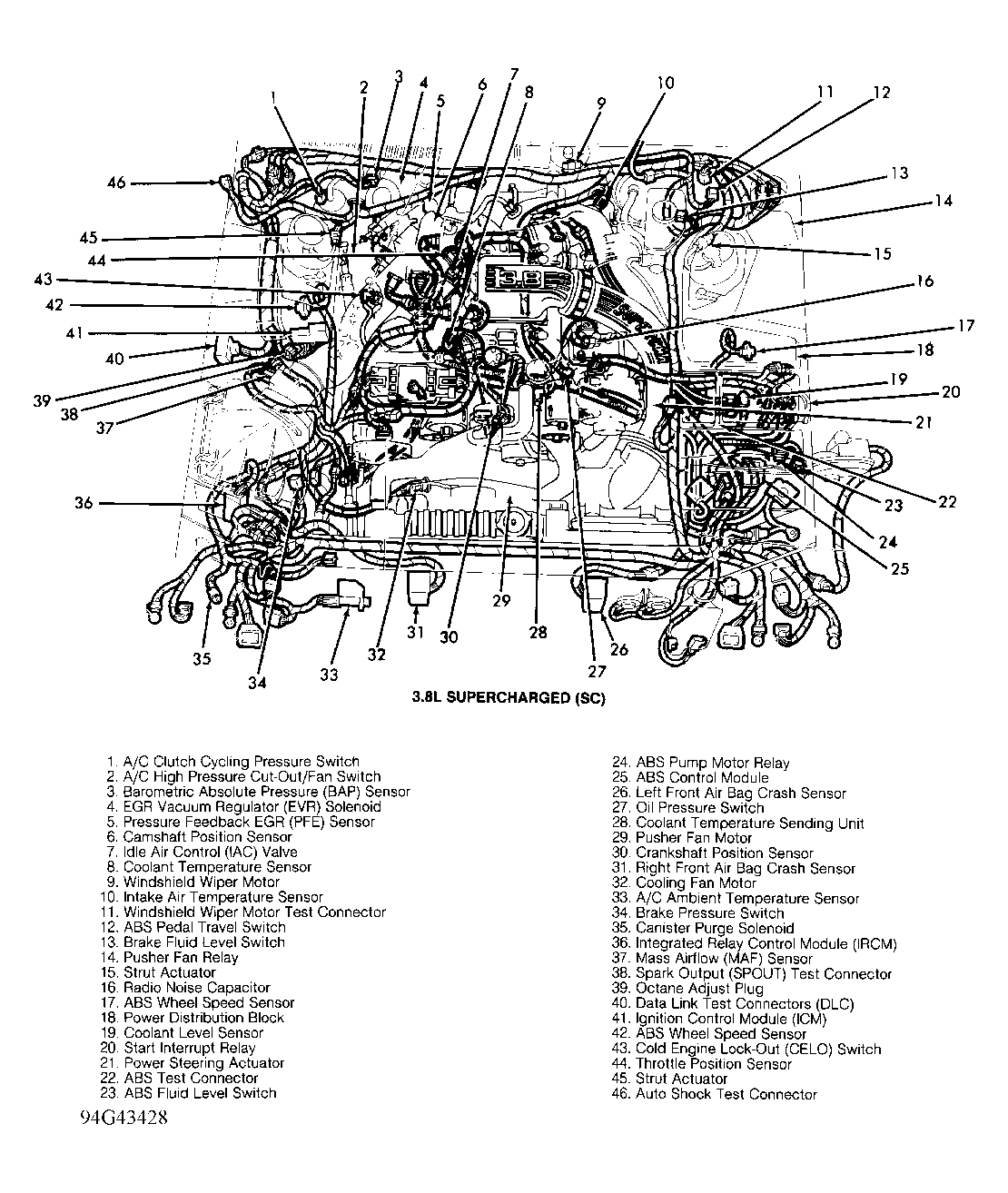

| 3.8L Supercharged (SC) | On left front inner fender panel, behind battery. See Figure. | |
| 4.6L | On left front inner fender panel, behind battery. See Figure. | |
