Interior Fuse Panel Identification: Notes

On all models, the fuse panel is located under the instrument panel, left of the steering column.

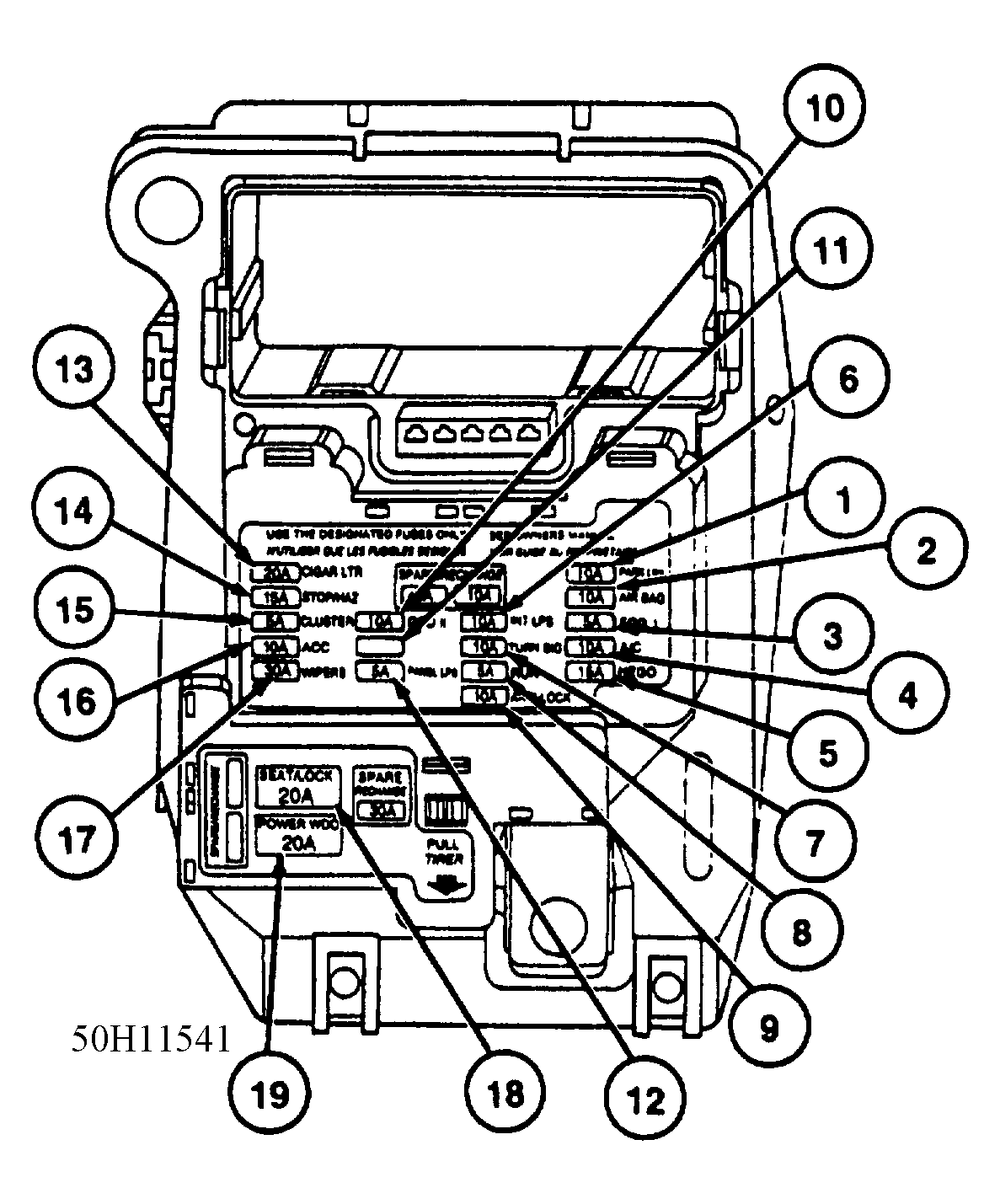

Fig 1: Interior Fuse Panel Identification
G50H11541Courtesy of FORD MOTOR CO.
