Alternator & Regulator: Overhaul

NOTE: Use illustration for exploded view of alternator. See Fig 1 .

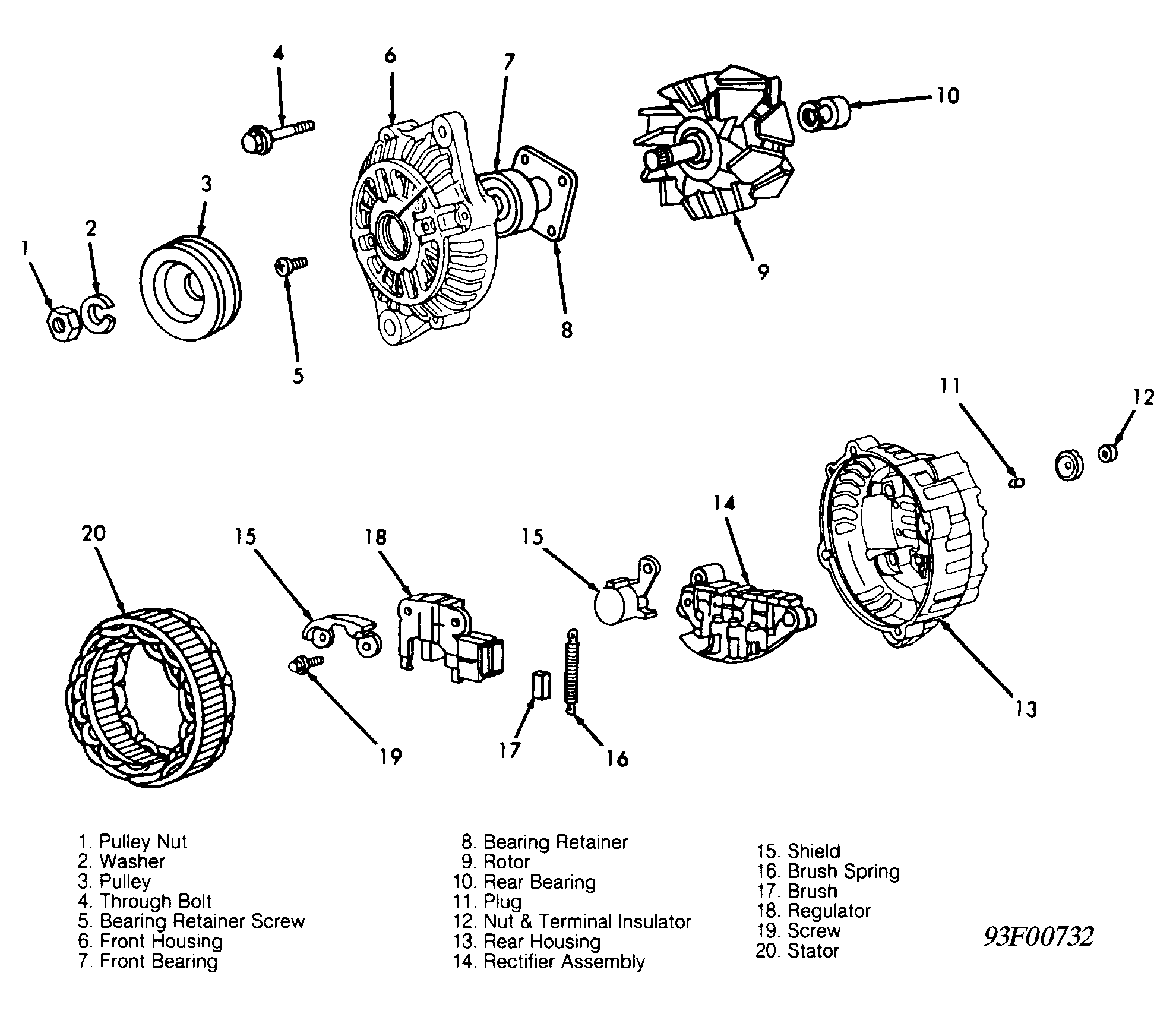

Fig 1: Exploded View Of Mitsubishi Alternator

G93F00732

Courtesy of FORD MOTOR CO.
