Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

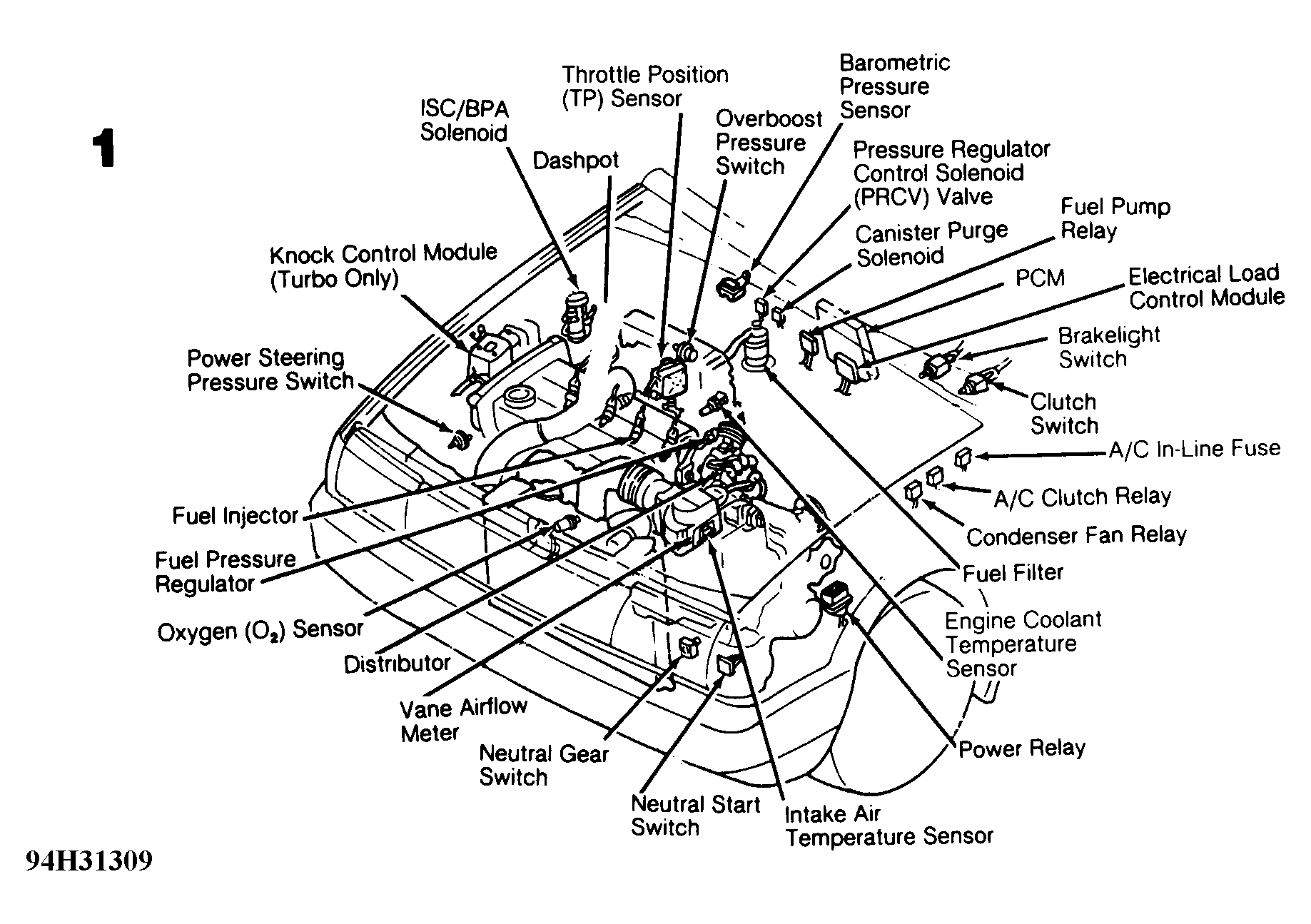

A/C In-Line Fuse On left rear corner of engine bay, on fender panel. See Figure .

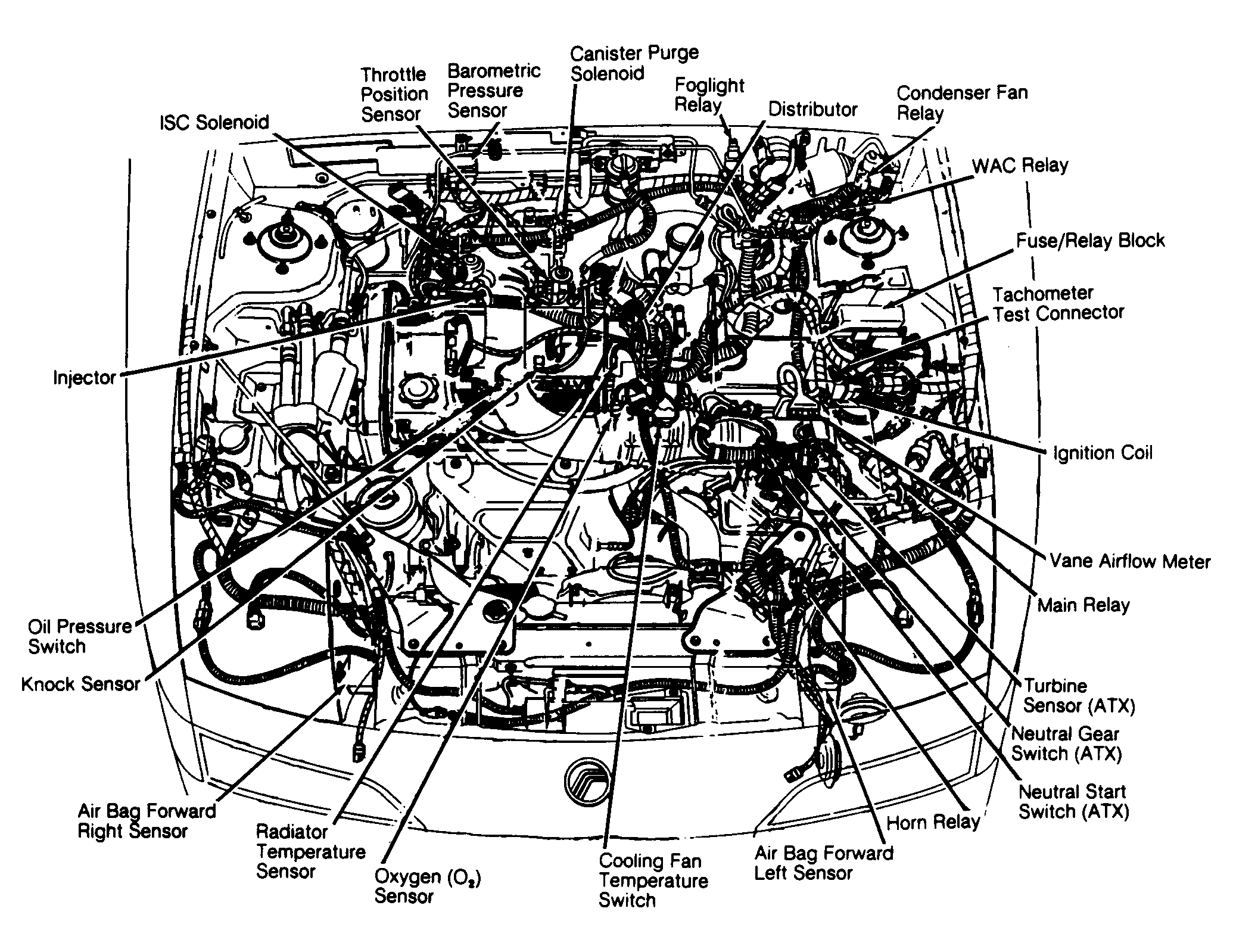

Engine Compartment Fuse Block On left side of engine bay, on strut tower. See Figure .
Passenger Compartment Fuse Block Behind left side of instrument panel.
Relay Block Behind left side of instrument panel, above fuse block.
