Speed Control Module: Installation

Install speed control module. Install cable end into pulley slot. Insert cable cap locking tabs into slots. Rotate cap clockwise until cap locking arm engages locking tab. Connect wiring. Adjust cable. See SPEED CONTROL CABLE  under ADJUSTMENTS. Check for proper speed control operation.

Fig 1: Removing Actuator Cap

Courtesy of FORD MOTOR CO.

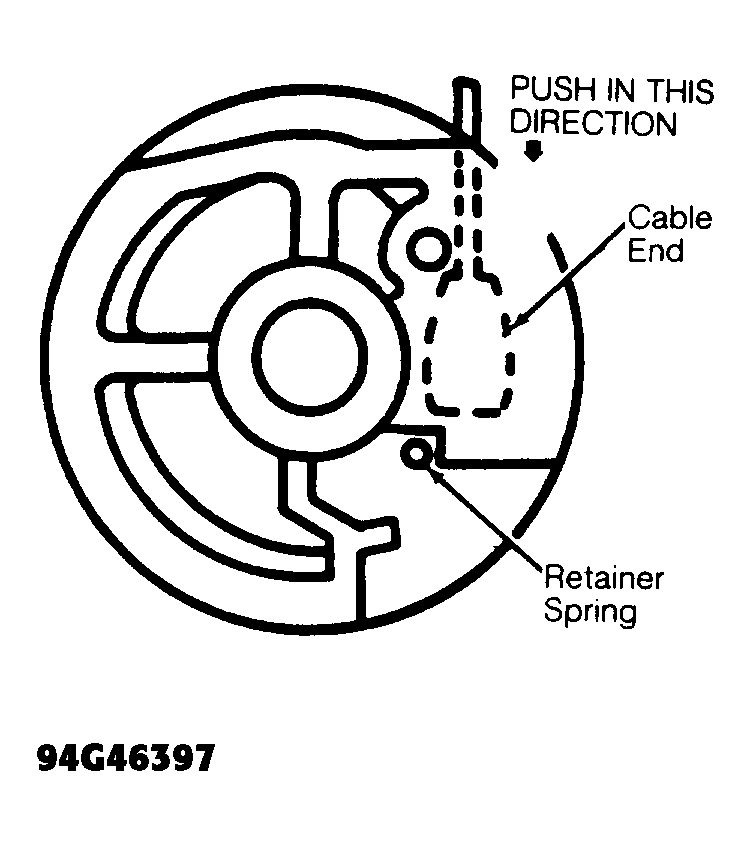

Fig 2: Disengaging Speed Control Cable From Pulley

Courtesy of FORD MOTOR CO.
