Trim Panel: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place sliding door trim panel in position on vehicle.
  2. Align locating pins on backside of trim panel to mating holes in the inner door panel.

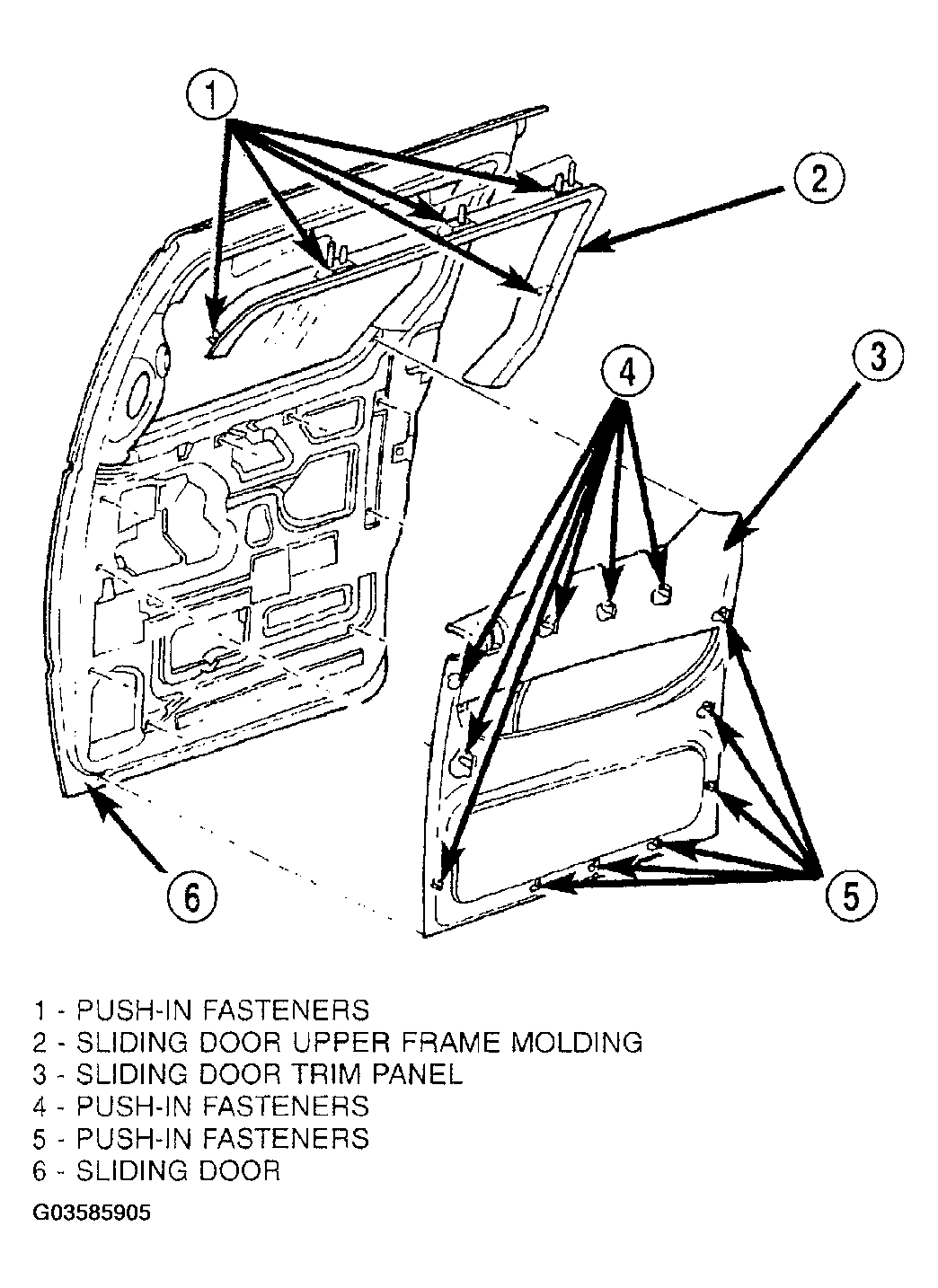

  3. Engage push-in fasteners to hold trim to door panel around perimeter and upper edge of door (Figure ).
  4. Install pull cup screw.
  5. If necessary, install screw from inside ash receiver bezel on left sliding door trim panel.
  6. Install sliding door upper frame molding.
