Section 401 (Door System - Sliding): Stabilizer: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open sliding door.
  2. Remove screws attaching stabilizer to door end frame (Fig 1 ).

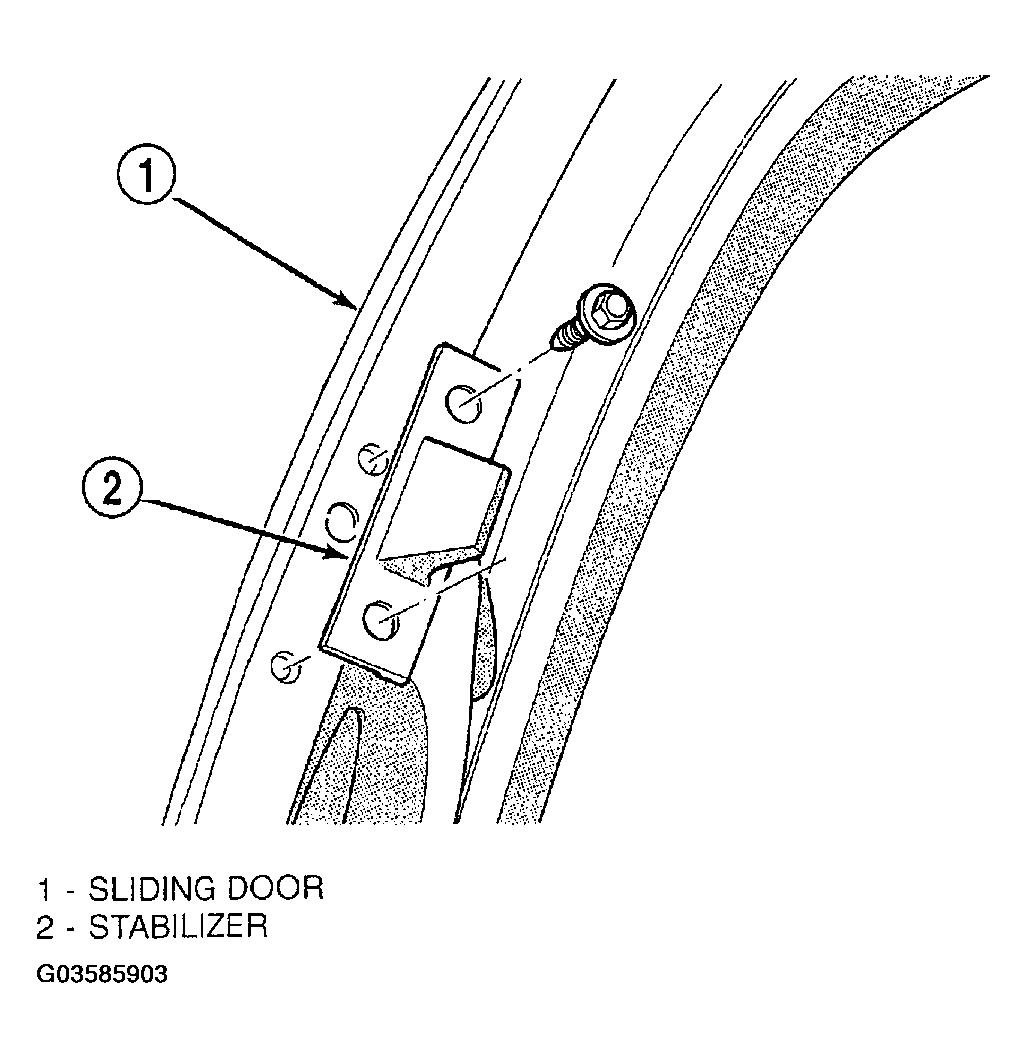

    Fig 1: Identifying Sliding Door Stabilizer
    G03585903Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove stabilizer from vehicle.
