Stabilizer Socket: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open sliding door.
  2. Remove screws holding stabilizer socket to B-pillar (Fig 1 ).

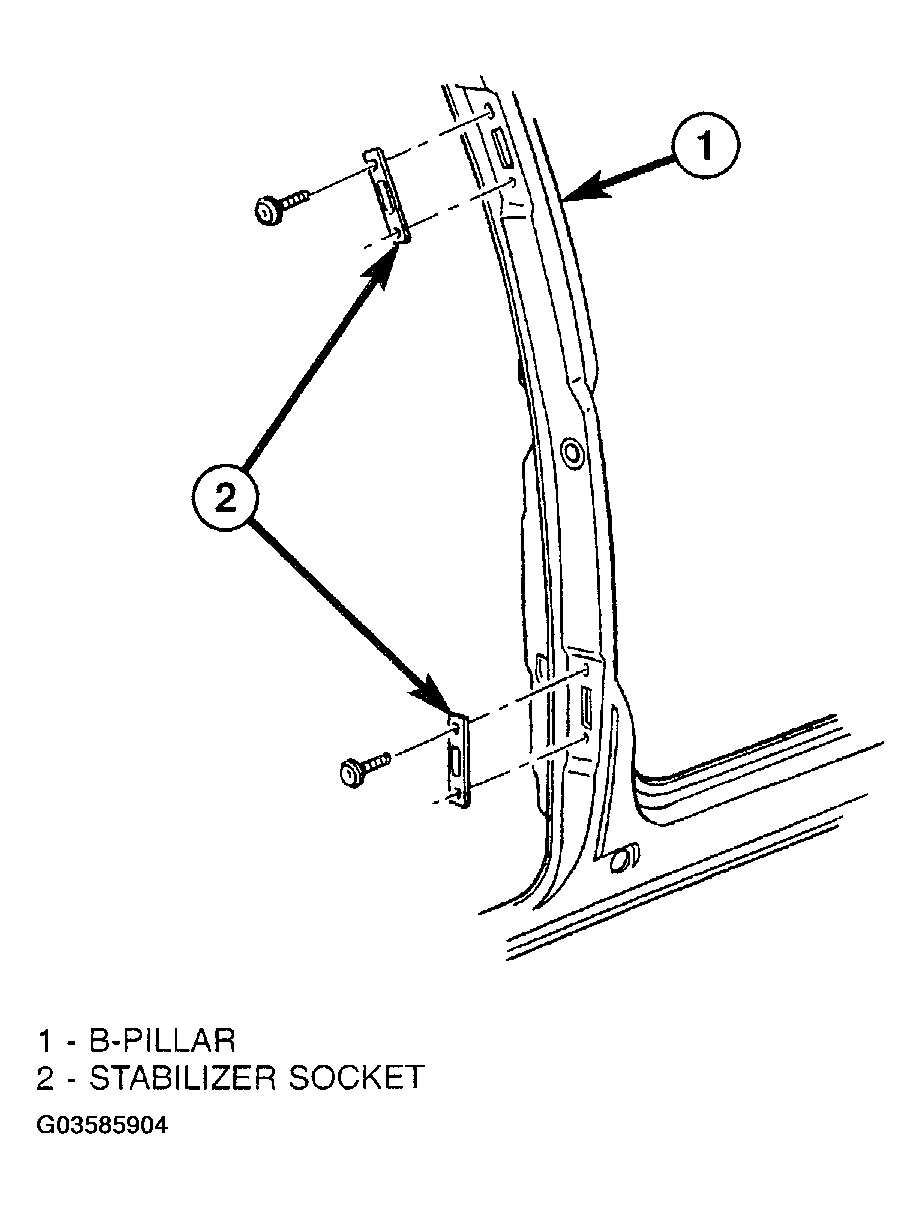

    Fig 1: Identifying Sliding Door Stabilizer Socket
    G03585904Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove stabilizer socket from vehicle.
