Lower Hinge: Installation
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For power sliding door procedures refer to POWER SLIDING DOOR
.

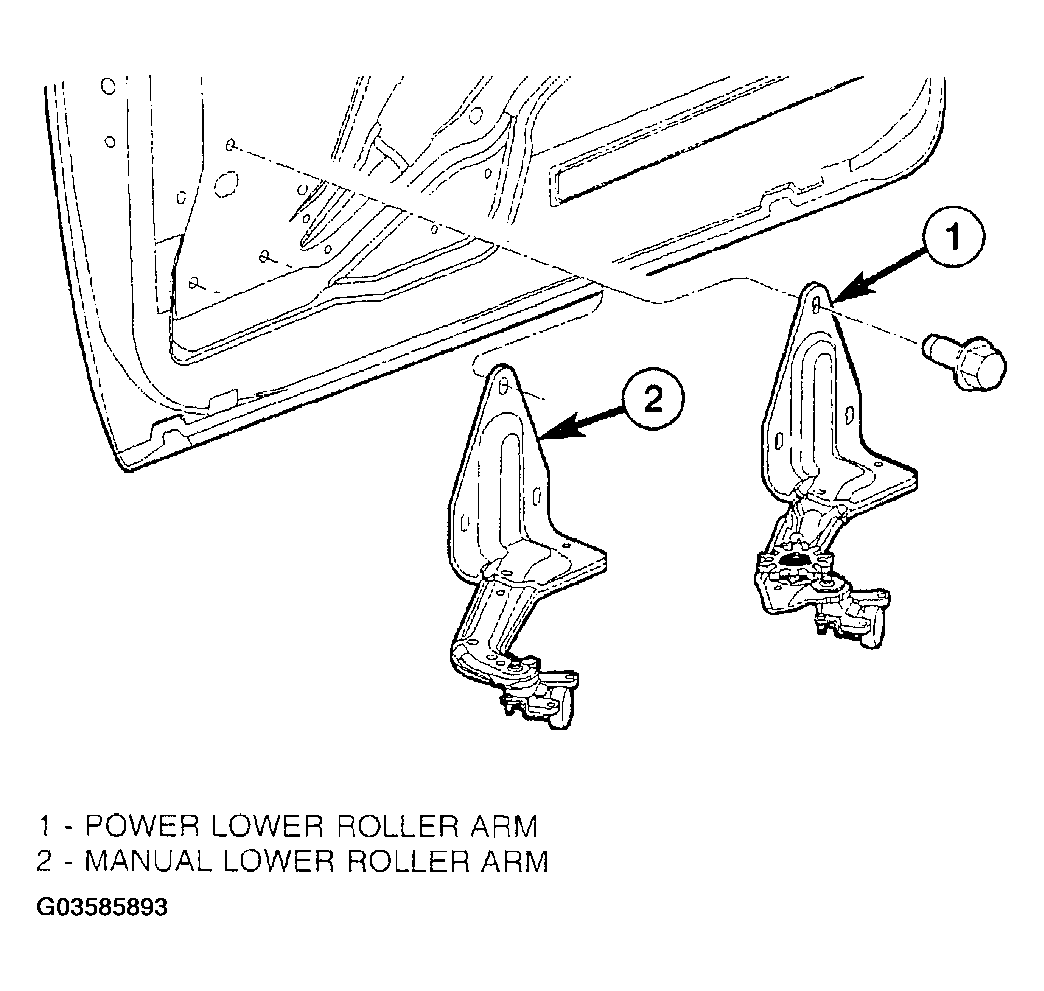

- Place roller arm into position (Figure ).
- Engage roller arm to lower channel.
- Install roller arm to sliding door.
- Install bolts attaching lower roller arm to sliding door.
- Install hold open latch striker.
- Install screws attaching open latch to lower roller arm.
- Install sliding door sill plate. (Refer to SLIDING DOOR SILL PLATE )
- Check sliding door for proper operation.
