Section 401 (Door System - Sliding): BELLCRANK: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position bellcrank on vehicle.
  2. Rotate bellcrank into position.

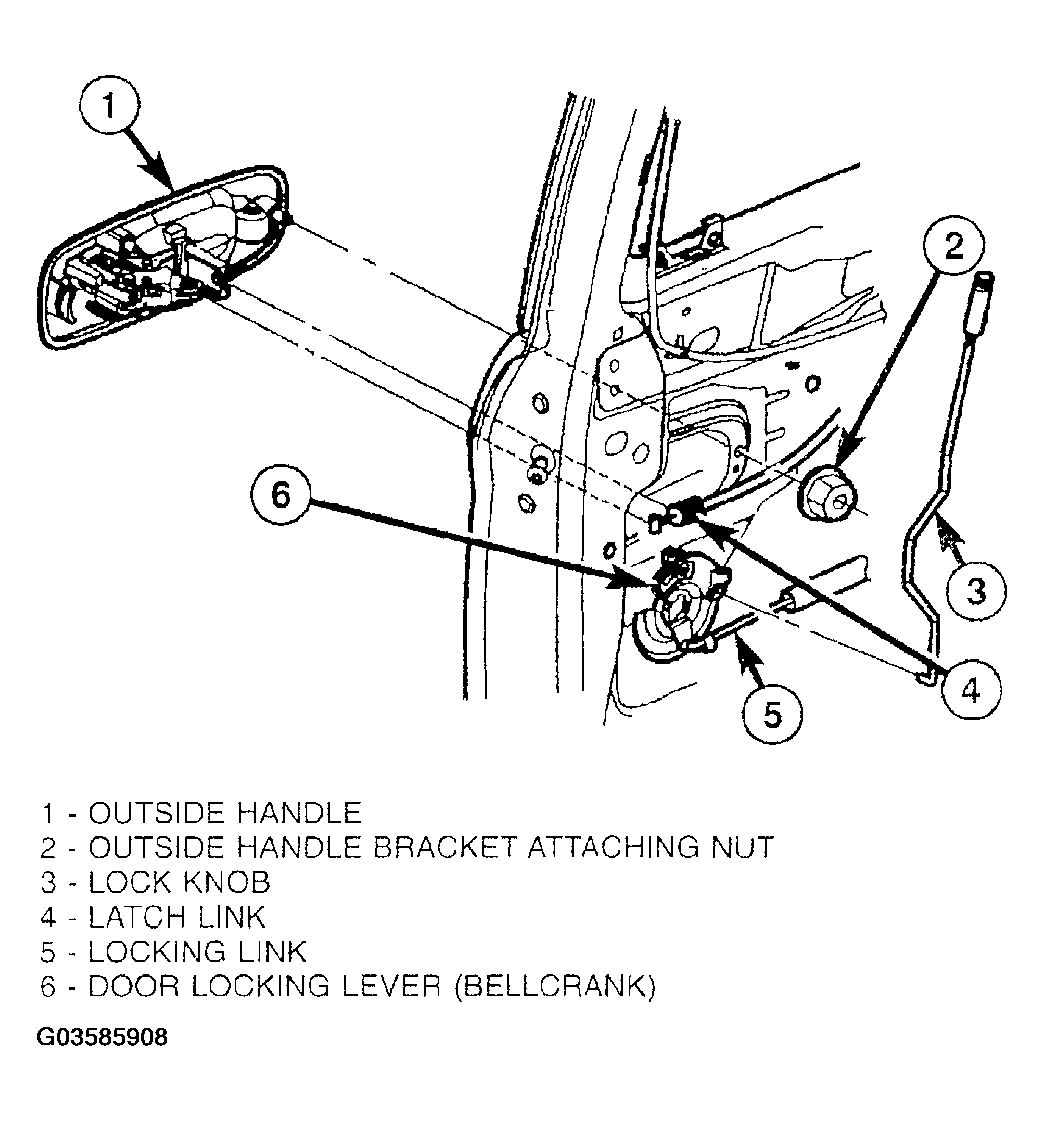

  3. Place lock link into position and engage clip (Figure ).
  4. Place link and sleeve into position and engage clip.
  5. Place the watershield into position and press securely to adhesive making sure to properly route wiring and linkages.
  6. Install sliding door trim panel (Refer to TRIM PANEL  ).
  7. Install stop bumper (Refer to STOP BUMPER  ).
