Blower Motor Resistor Block: Removal

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Depress resistor block locking tab and remove resistor block from the ventilation housing by sliding the resistor block inboard (Fig 1 ).
  3. Depress two locking tabs and unplug the wire harness connector from the blower motor resistor block.
  4. Remove the blower motor resistor from the engine compartment.

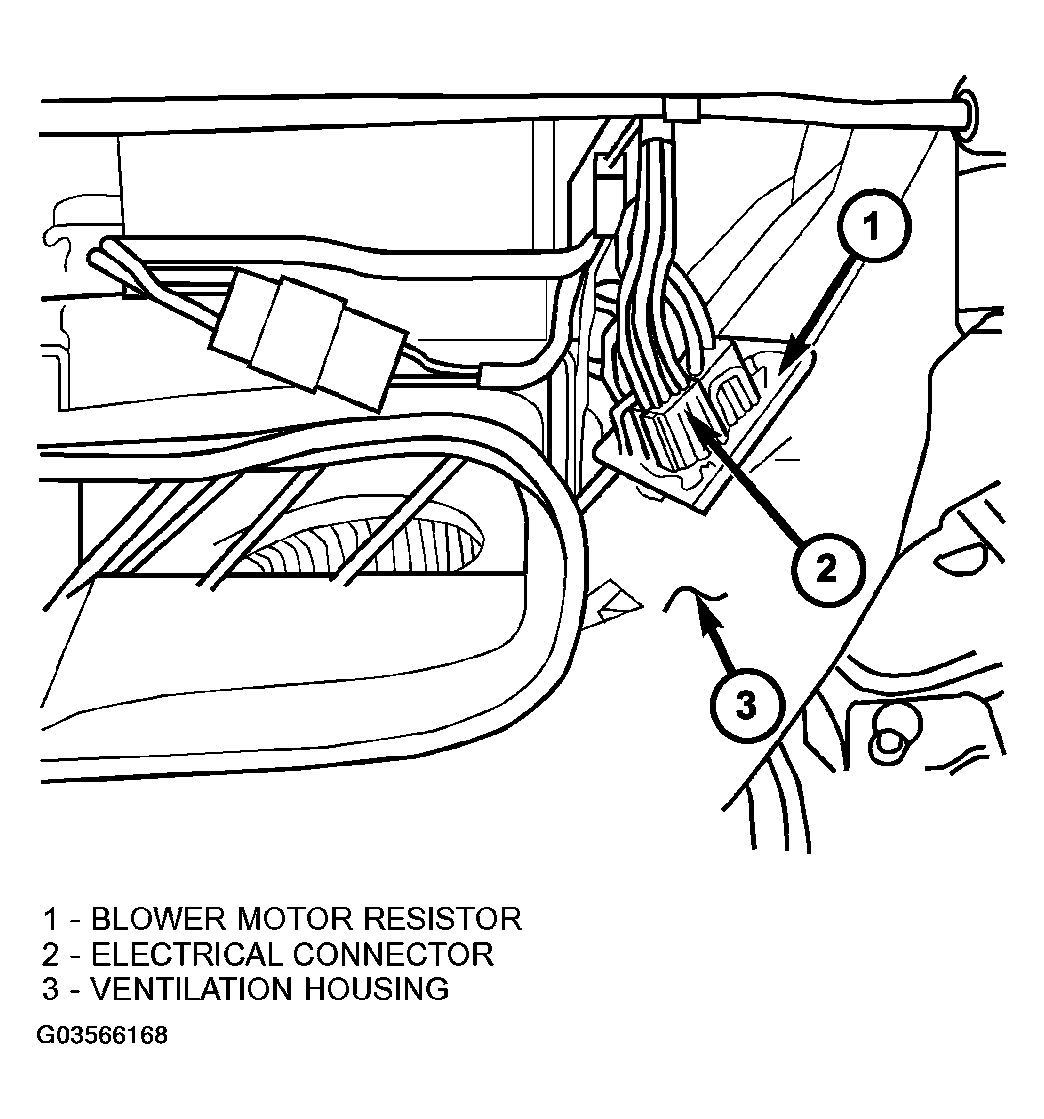

    Fig 1: Locating Blower Motor Resistor Block
    G03566168Courtesy of DAIMLERCHRYSLER CORP.
