A/C Heater Control: Removal

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN AN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the center bezel from the instrument panel. (Refer to INSTRUMENT PANEL CENTER BEZEL ).
  3. Remove the two screws that secure the A/C-heater control to the instrument panel (Fig 1 ).
  4. Pull the A/C-heater control away from the instrument panel far enough to access the connections on the back of the control.
  5. Mark and disconnect the two control cables from the A/C-heater control.
  6. Disconnect the two wiring harness connectors from the A/C-heater control.
  7. If A/C-heater control is to be replaced, remove the two mounting brackets from the A/C-heater control.

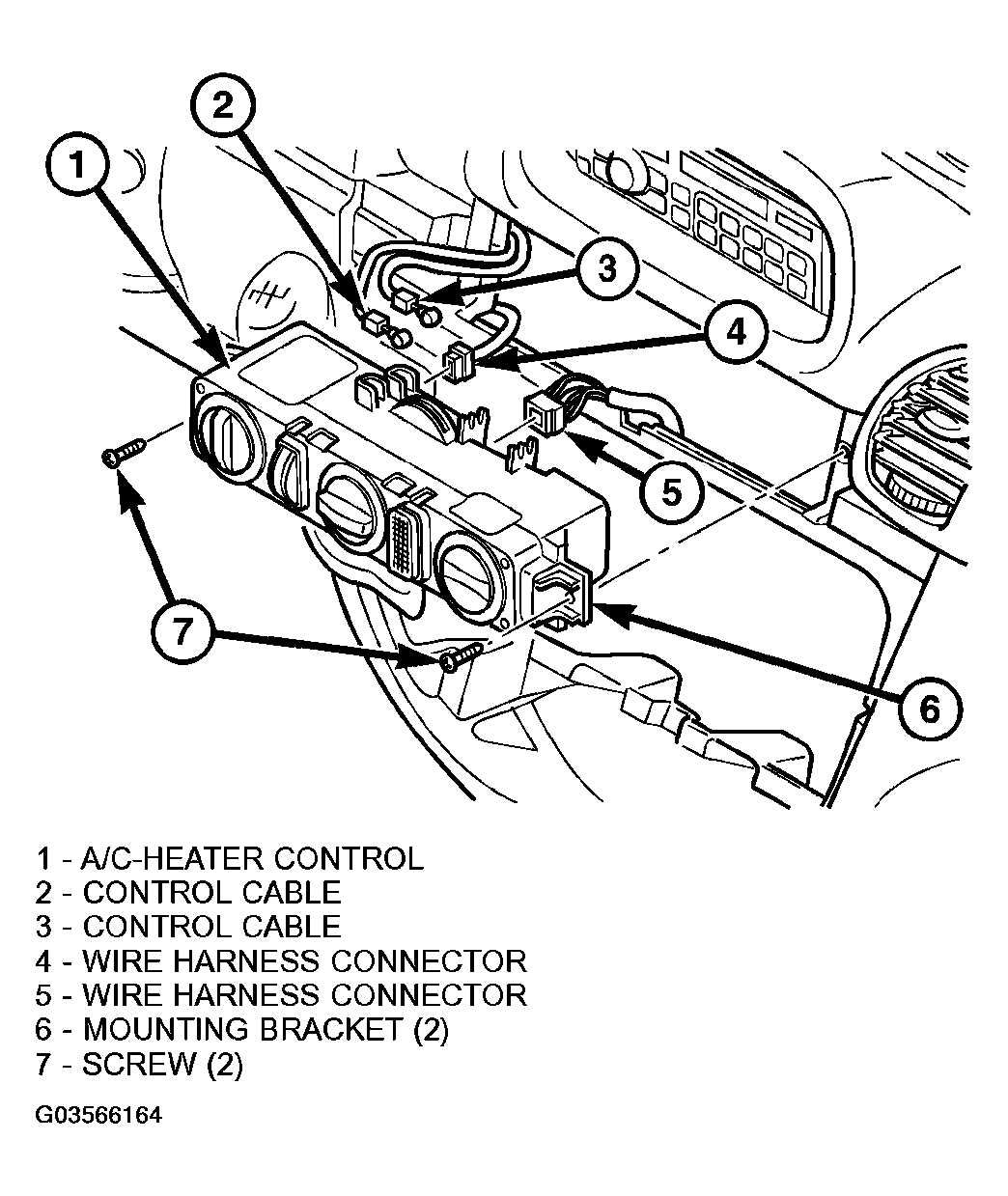

Fig 1: Removing/Installing A/C-Heater Control
G03566164Courtesy of DAIMLERCHRYSLER CORP.
