O2 Sensor: Installation
WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

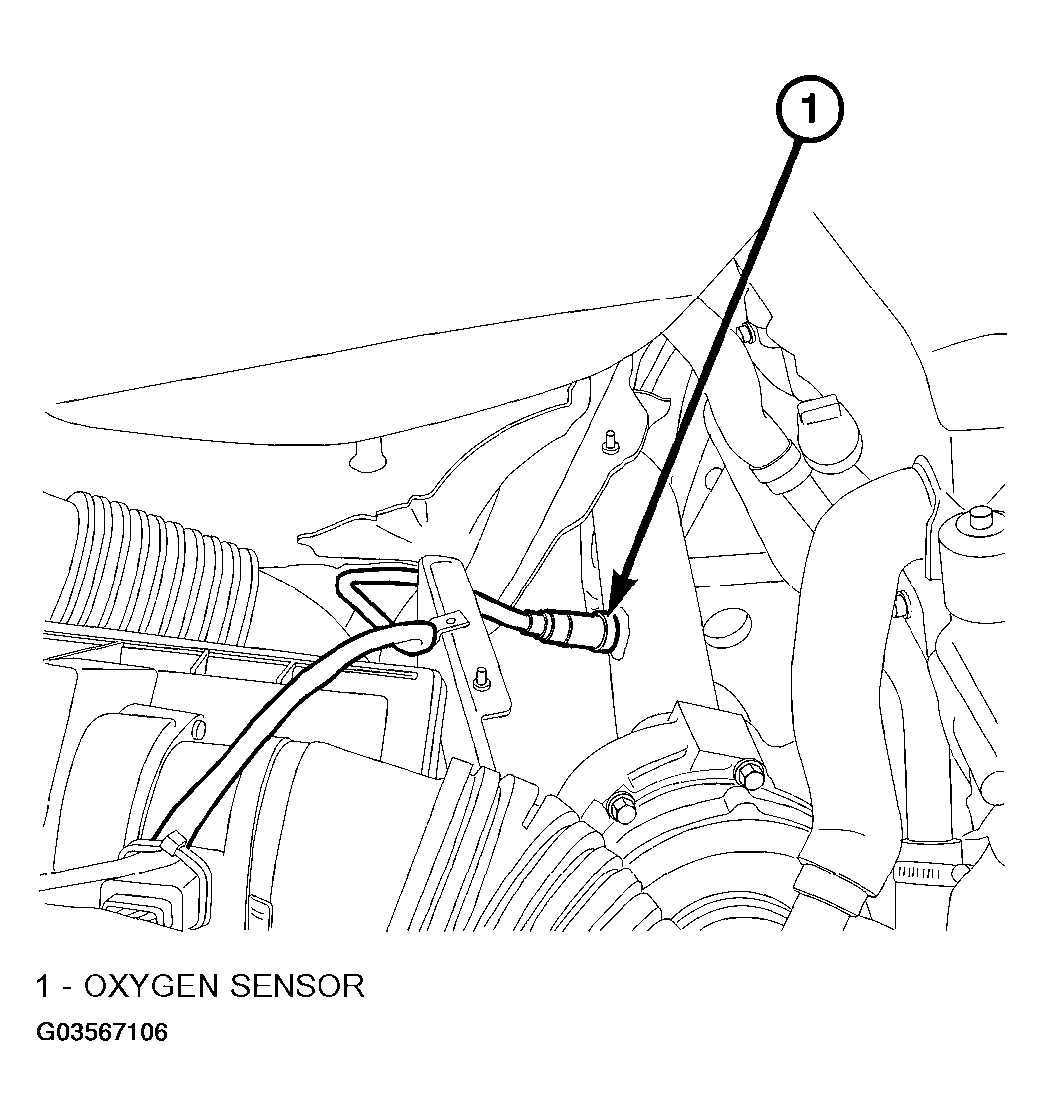

- Install the oxygen sensor (Figure
).

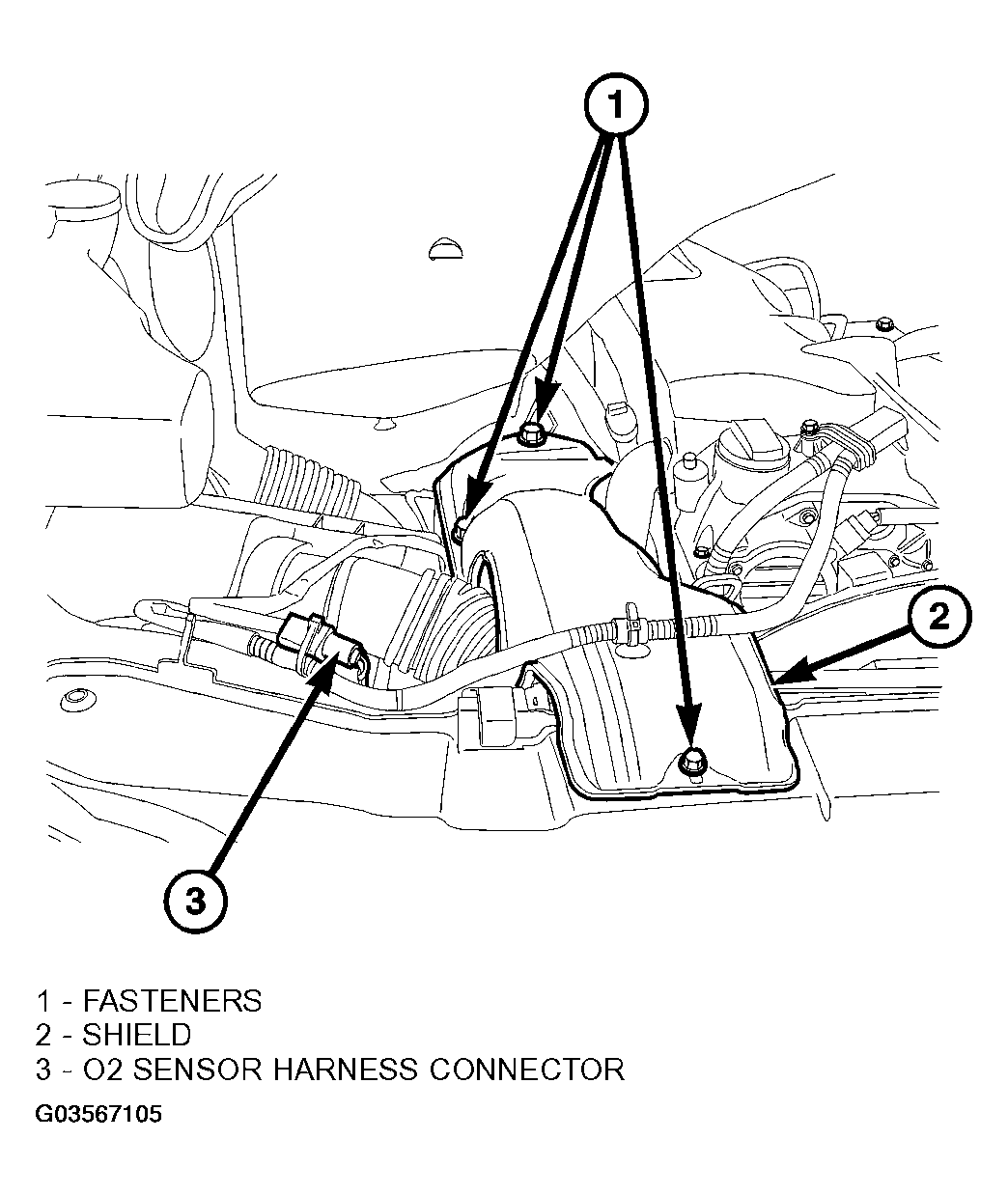

- Install the heatshield and tighen fasteners to 9N.m (80 lbs. in.) (Figure
).
- Properly position the oxygen sensor wiring harness and connect the electrical connector (Figure
)
- Connect the negative battery cable.
