Fuel Temperature Sensor: Installation
WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
- Clean sealing surfaces.
- Install new seal on sensor.

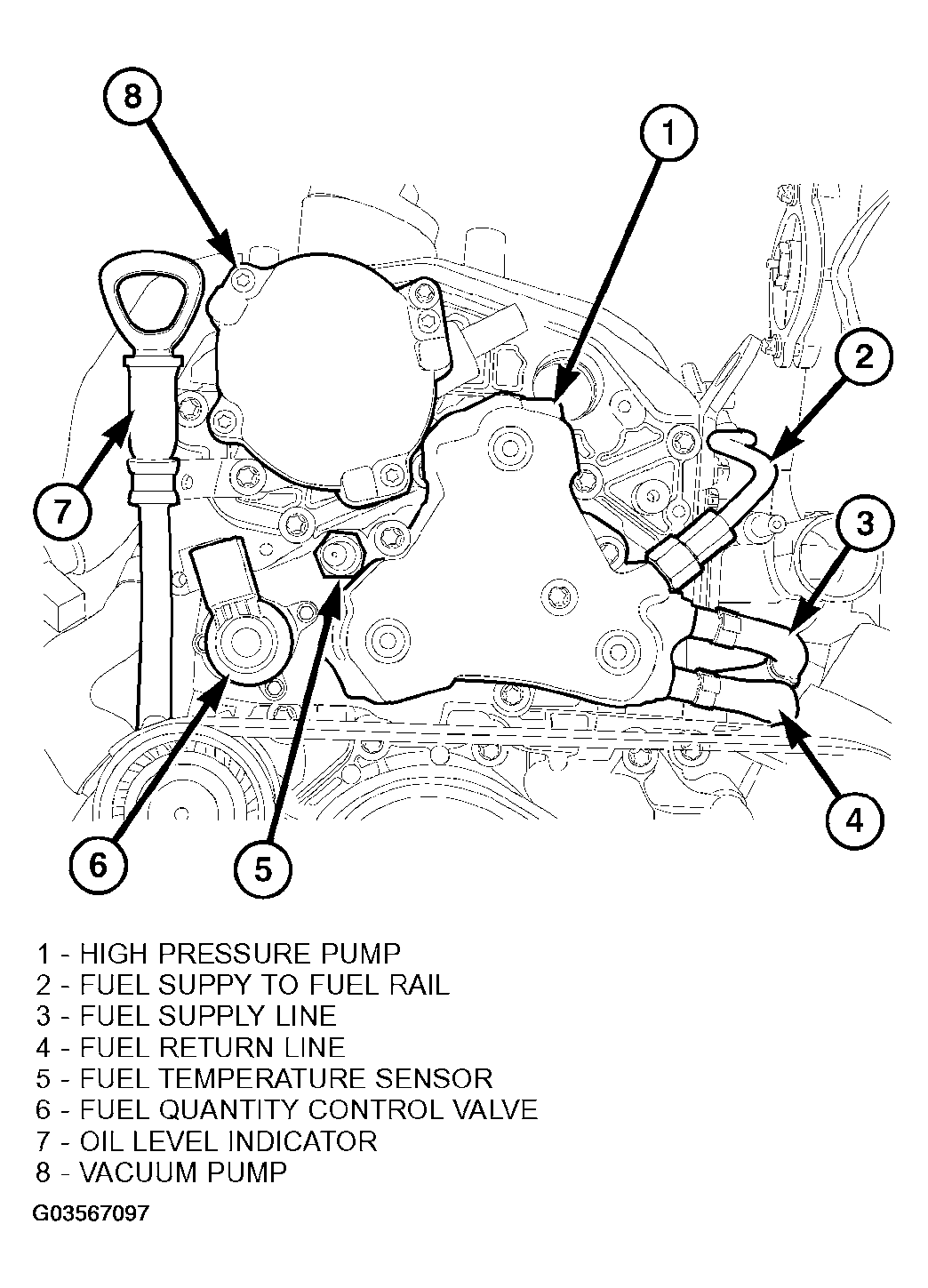

- Screw the sensor into the high pressure pump and tighten to 18 lbs.ft. (25 N.m) (Figure
)
- Connect negative battery cable.
- Start engine, allow to warm, shut engine off and inspect for leaks (Refer to WARNING
).
