Component Locations

COMPONENT LOCATIONS

Component	Location
Engine Compartment Fuse Panel	Driver's Side Of Engine Compartment. See Fig 2 .
Ground G200	Above Left Kick Panel. See Fig 1 .
Inline Circuit Breaker	Behind Left Side Of Instrument Panel. See Fig 2 .

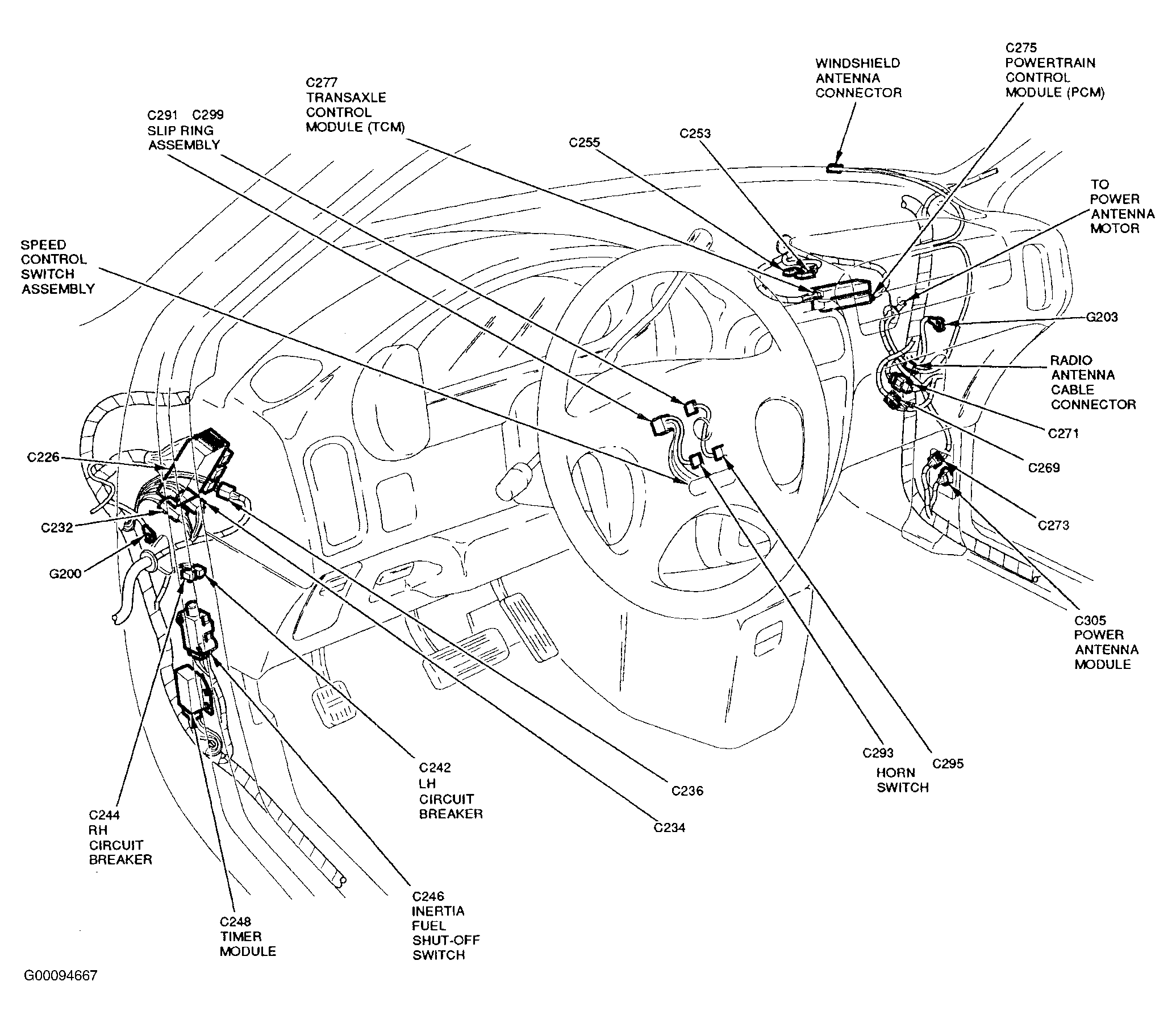

Fig 1: Locating Circuit Breakers & Ground G200

Courtesy of FORD MOTOR CO.

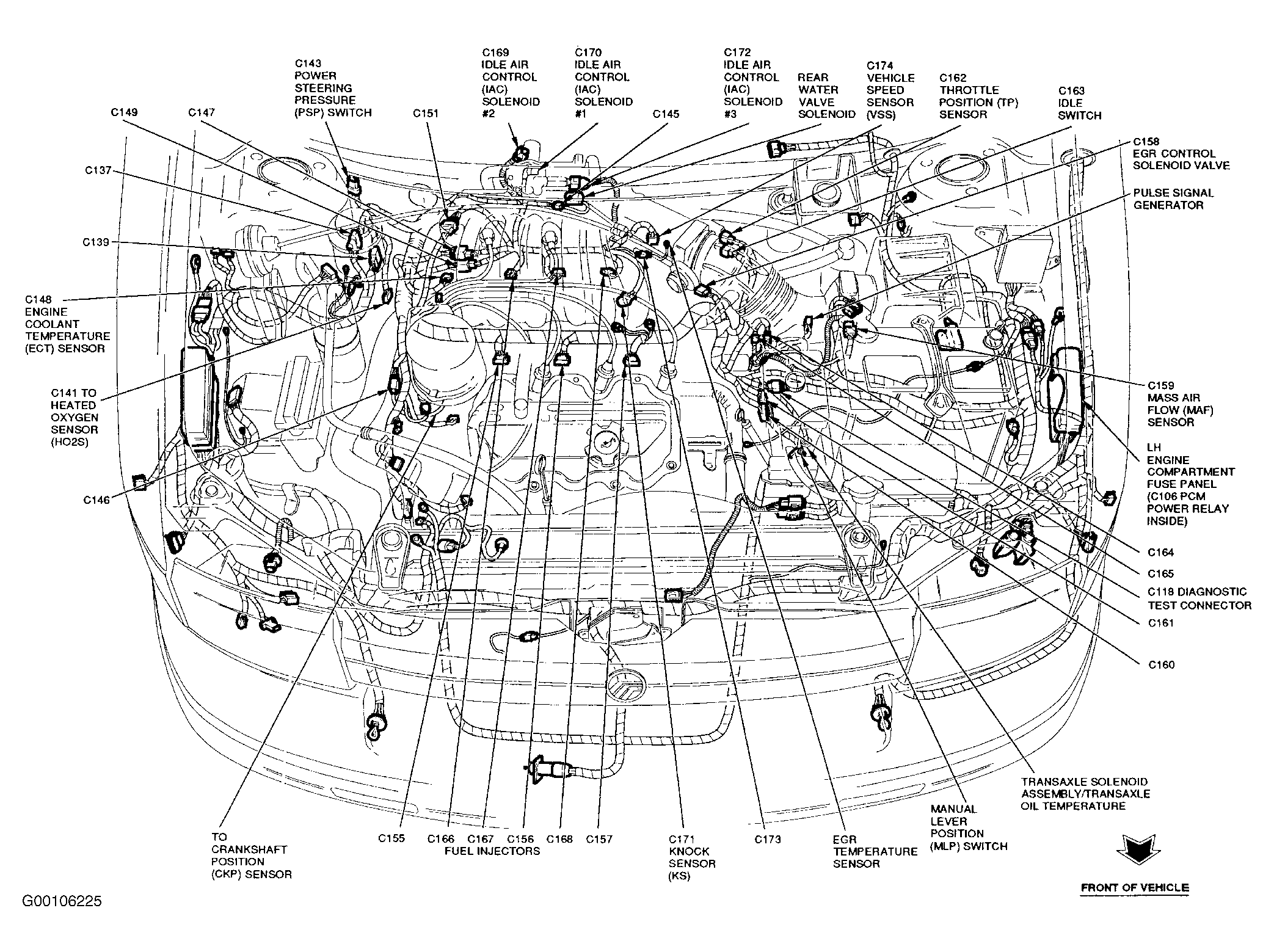

Fig 2: Locating Engine Compartment Fuse Panel

Courtesy of FORD MOTOR CO.
