Home >> Mercury >> 1993 >> Villager LS >> Repair and Diagnosis >> Body & Frame >> Power Mirrors >> Wiring Diagram

Power Mirrors: Wiring Diagram

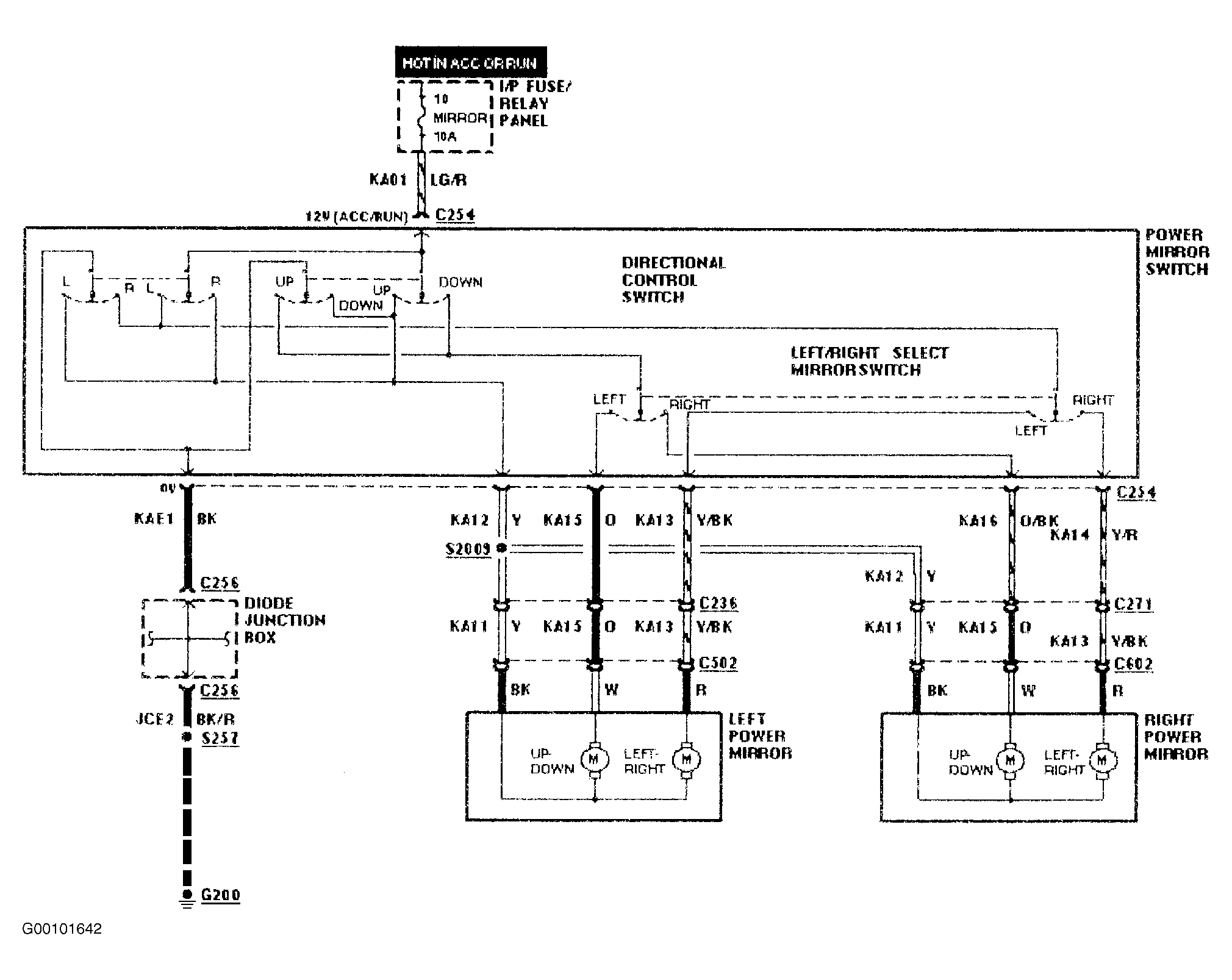

Fig 1: Villager Power Mirror Wiring Diagram

G00101642

Courtesy of FORD MOTOR CO.
