Component Locations

COMPONENT LOCATIONS

Component Location
Diode Junction Box Behind Top Left Hand Side Of Instrument Panel Taped To Main Harness. See Fig 2 .
Ground G200 Behind Far Left Side of Instrument Panel. See Fig 1 .
Instrument Panel Fuse/Relay Panel Behind Left Hand Side Of Instrument Panel, Left Of Steering Column. See Fig 2 .
Left Power Mirror Top Front Of Left Front Door
Power Mirror Switch Left Side Of Instrument Panel, Left Of Steering Column. See Fig 3 .
Right Power Mirror Top Front Of Right Front Door
Fig 1: Locating Ground G200
G00094667Courtesy of FORD MOTOR CO.
Fig 2: Locating Power Mirror Components
G00099146Courtesy of FORD MOTOR CO.

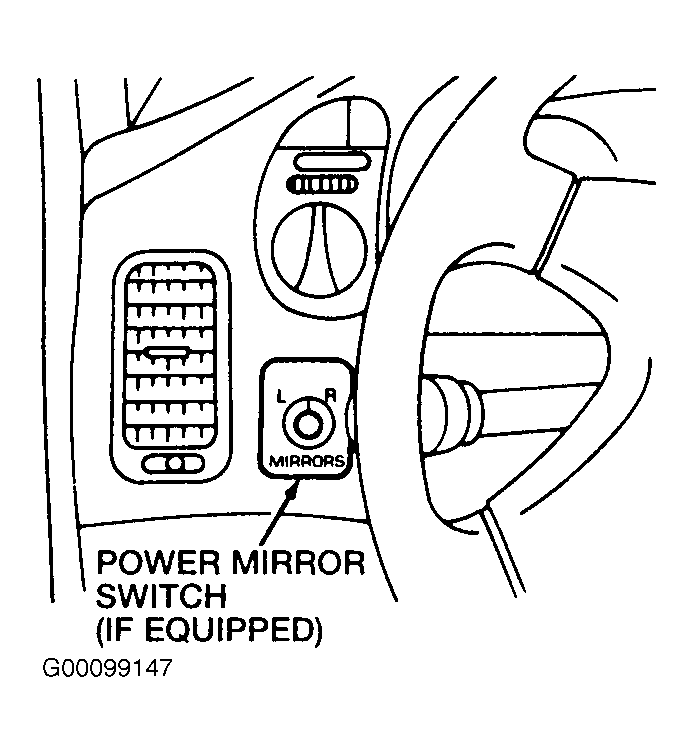

Fig 3: Locating Power Mirror Switch
G00099147Courtesy of FORD MOTOR CO.
