Engine Control System Wiring Diagrams
>>
1.8L W/ Manual Transaxle
1.8L W/ Manual Transaxle

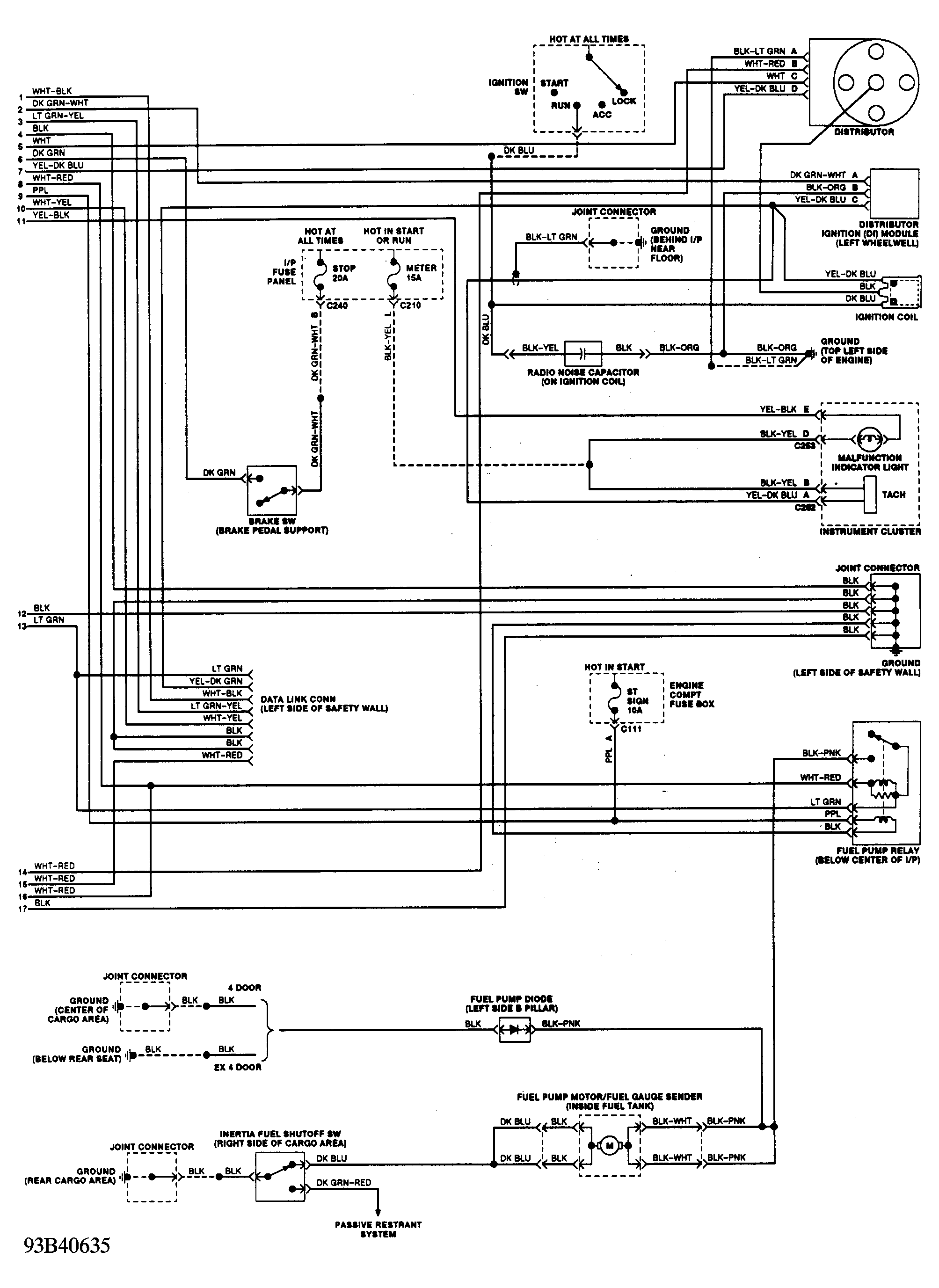

Fig 1: EEC Wiring Diagram (Escort/Tracer 1.8L M/T - 1 of 2)

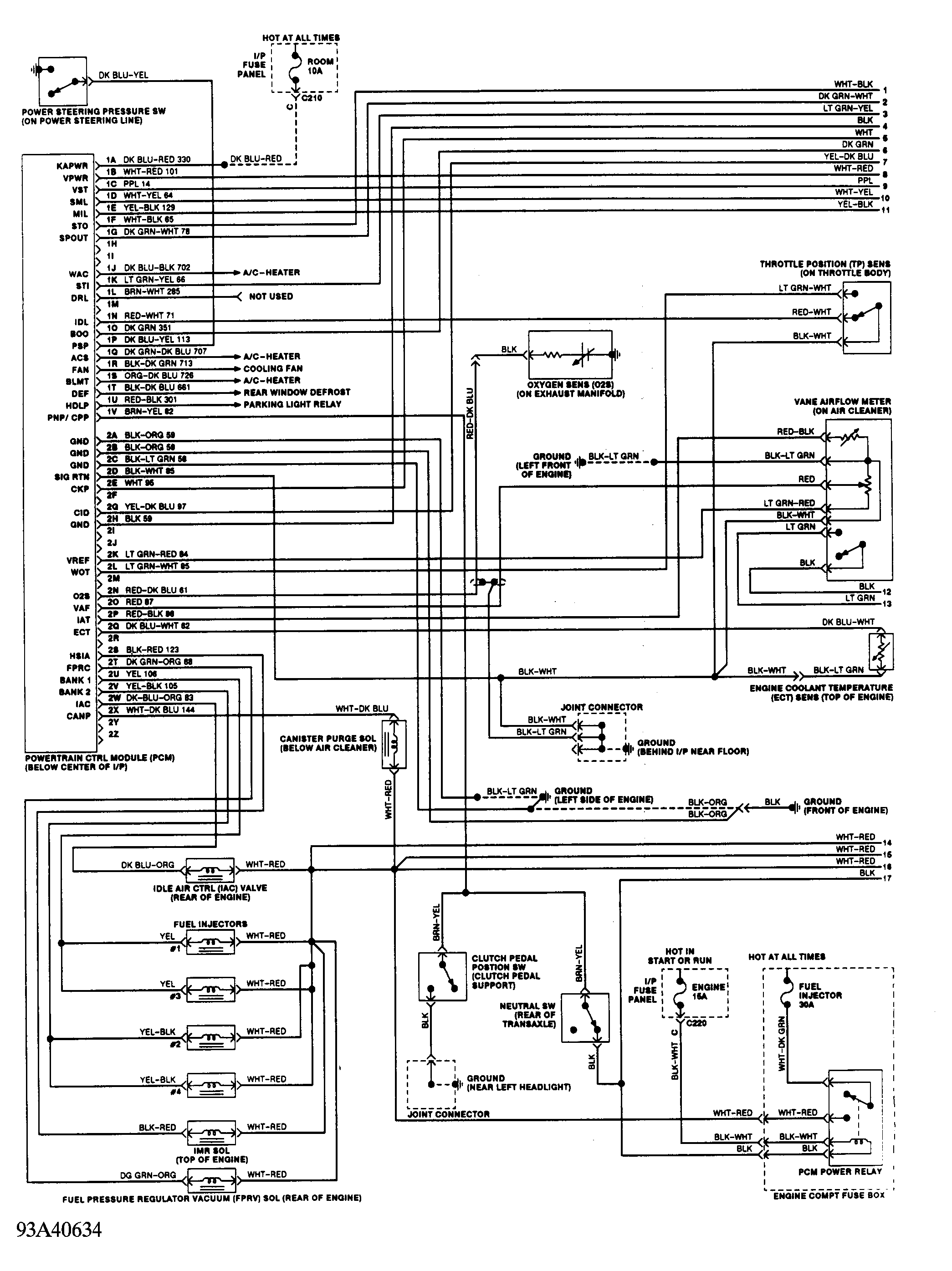

Fig 2: EEC Wiring Diagram (Escort/Tracer 1.8L M/T - 2 of 2)
