Fuel Pump Relay

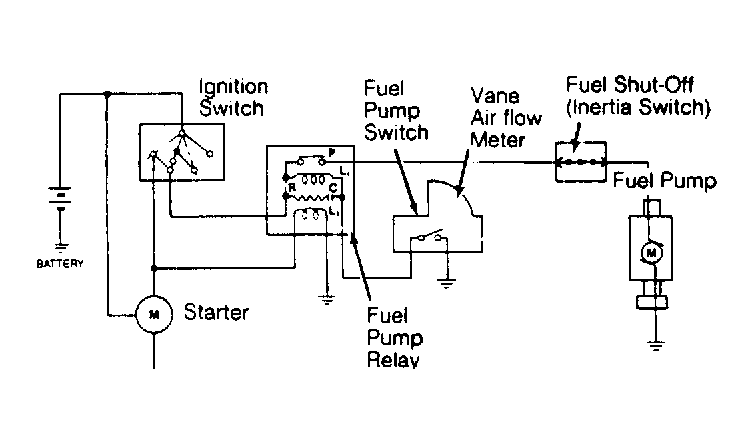

This relay prevents fuel pump operation unless the engine is cranking or when a signal from the Vane Airflow (VAF) Meter confirms the engine is running. See Fig 1. Internal circuitry holds the relay contacts closed during momentary loss of the VAF meter signal during rapid deceleration. The fuel pump relay is located under the center of the instrument panel, between the panel and the floor.
