Removal (Switch)

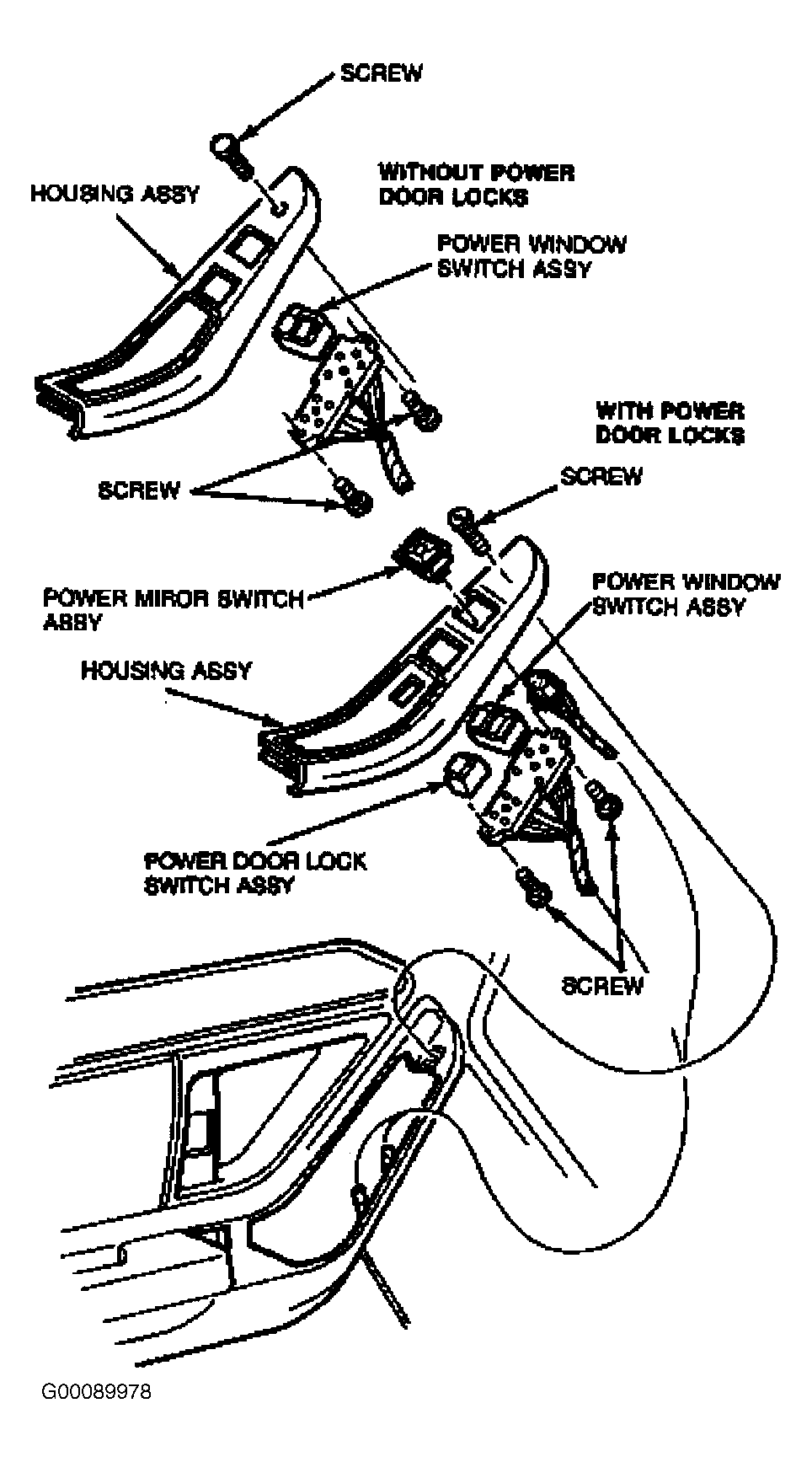

- Remove screw retaining switch housing assembly. Rotate housing up and out of armrest to remove. See Fig 1 .
- Remove two connector retaining screws from bottom of switch housing.
- The switch is held in place by the electrical contact pins. To remove the switch, carefully pry the switch from the connector with a small screwdriver.
