Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

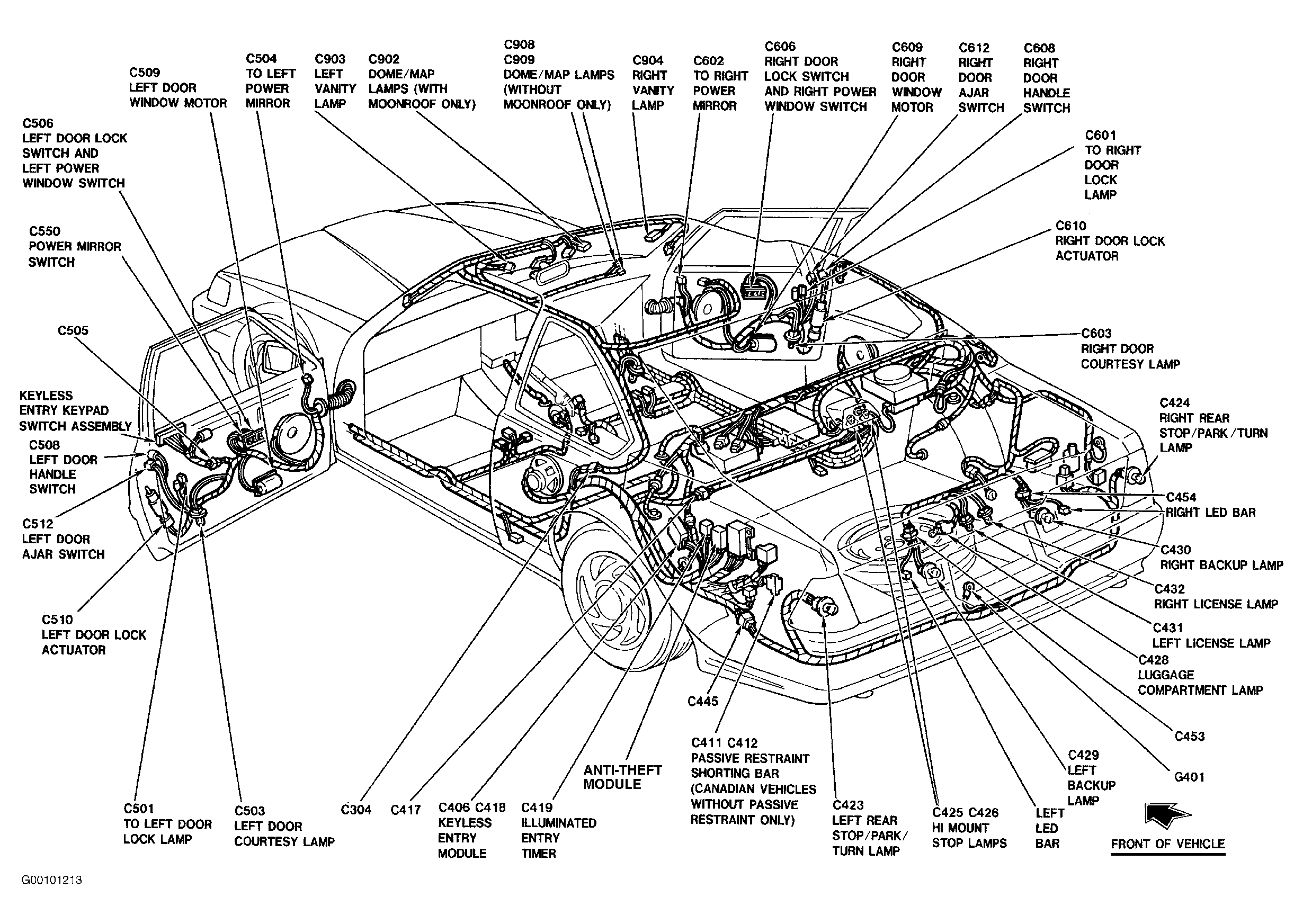

| Anti-Theft Module | Left Side Of Trunk, Above Wheelwell, In Trim Panel. See Fig 1 . |
| Backup Lamp Switch (Man. Trans.) | On Left Side Of Transmission |
| Backup/Neutral Safety Switch (Auto. Trans.) | On Left Side Of Transmission |

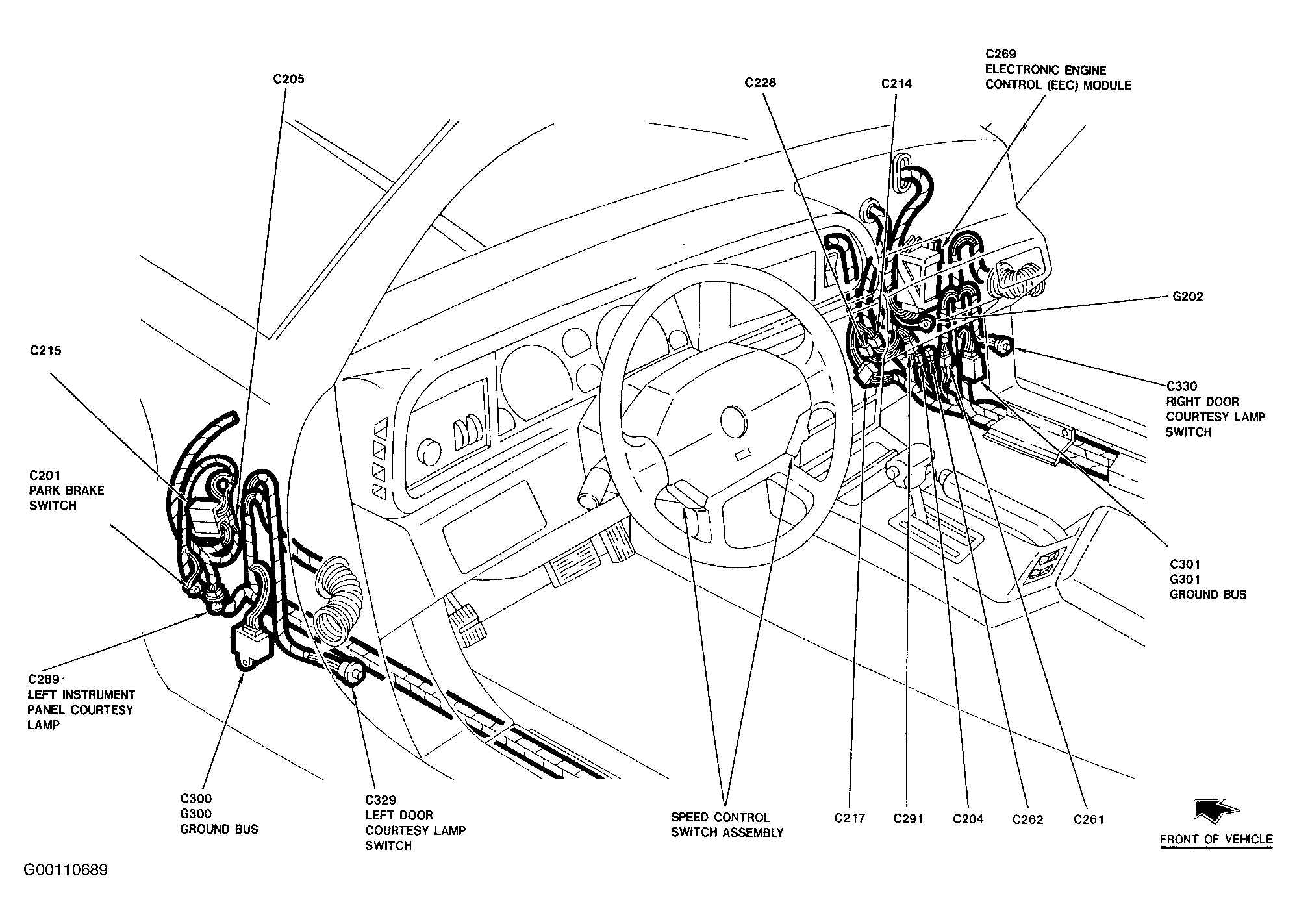

| Ground G300 | Behind Left Cowl Panel, Near Front Of Door Sill. See Fig 2 . |
| Ground G301 | Behind Right Cowl Panel, Near Front Of Door Sill. See Fig 2 . |
| Keyless Entry Module | Left Side Of Trunk, Above Wheelwell, In Trim Panel. See Fig 1 . |
| Primary Junction Block | Behind Left Side Of Instrument Panel, Left Of Steering Column |
