Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

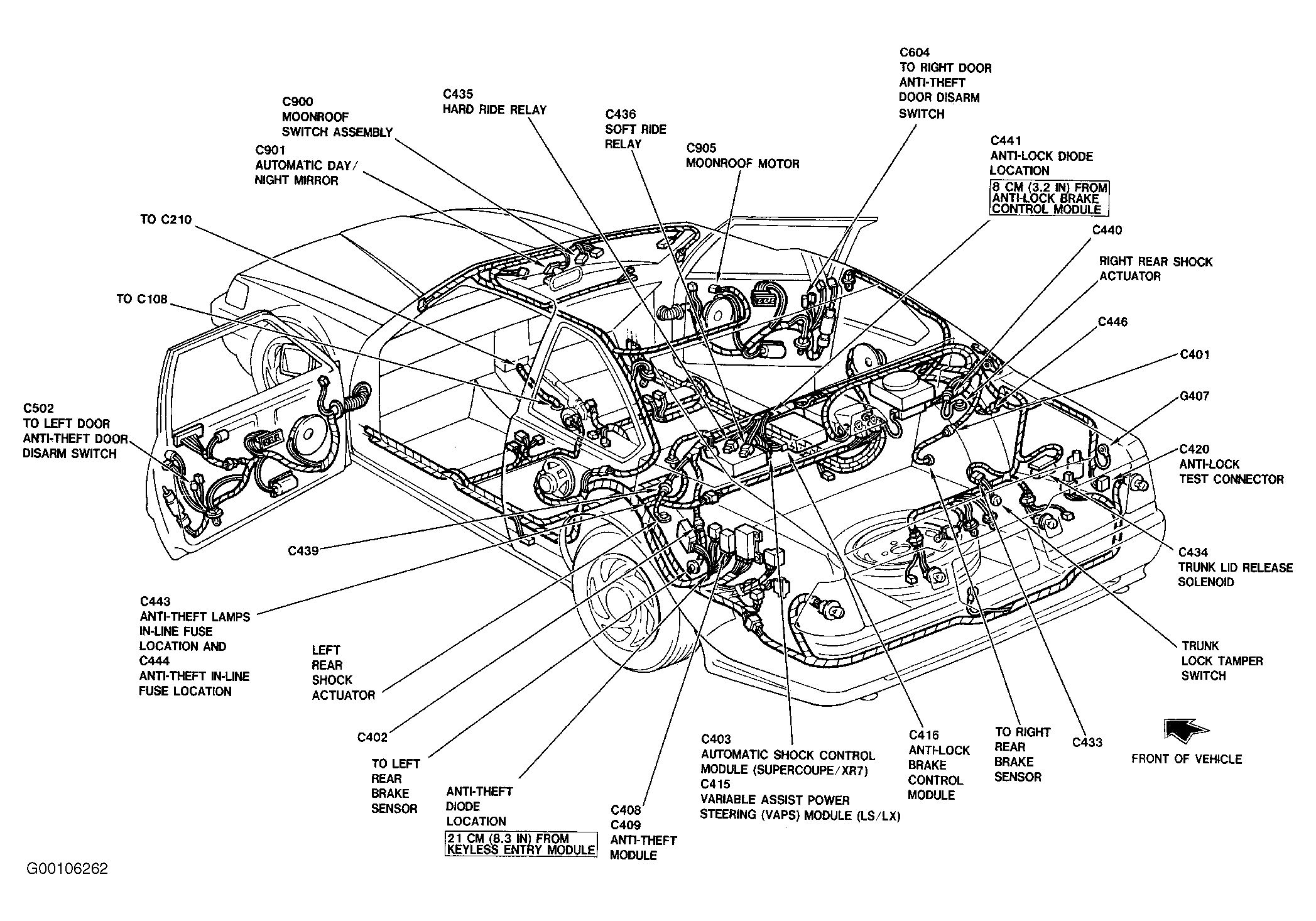

| Anti-Theft Diode | Left Side Of Trunk, Taped In Window Regulator Jumper Harness, Near Anti-Theft Module. See Fig 1 . |
| Anti-Theft In-Line Fuse | Left Side Of Trunk, Taped In Window Regulator Jumper Harness. See Fig 1 . |
| Anti-Theft Module | Left Side Of Trunk, Behind Trim Panel. See Fig 1 . |
| Door Ajar Diodes | Left Side Of Trunk, Taped To Wiring Harness, Near Inertia Switch. See Fig 1 . |
| Door Ajar Switches | In Top Rear Of Door, On Door Latch Assembly. See Fig 1 . |
| Ground G300 | Behind Left Cowl Panel, Near Front Of Door Sill. See Fig 3 . |
| Ground G301 | Behind Right Cowl Panel, Near Front Of Door Sill. See Fig 3 . |
| Horn Relay | Left Side Of Engine Compartment, Inside Power Distribution Box |

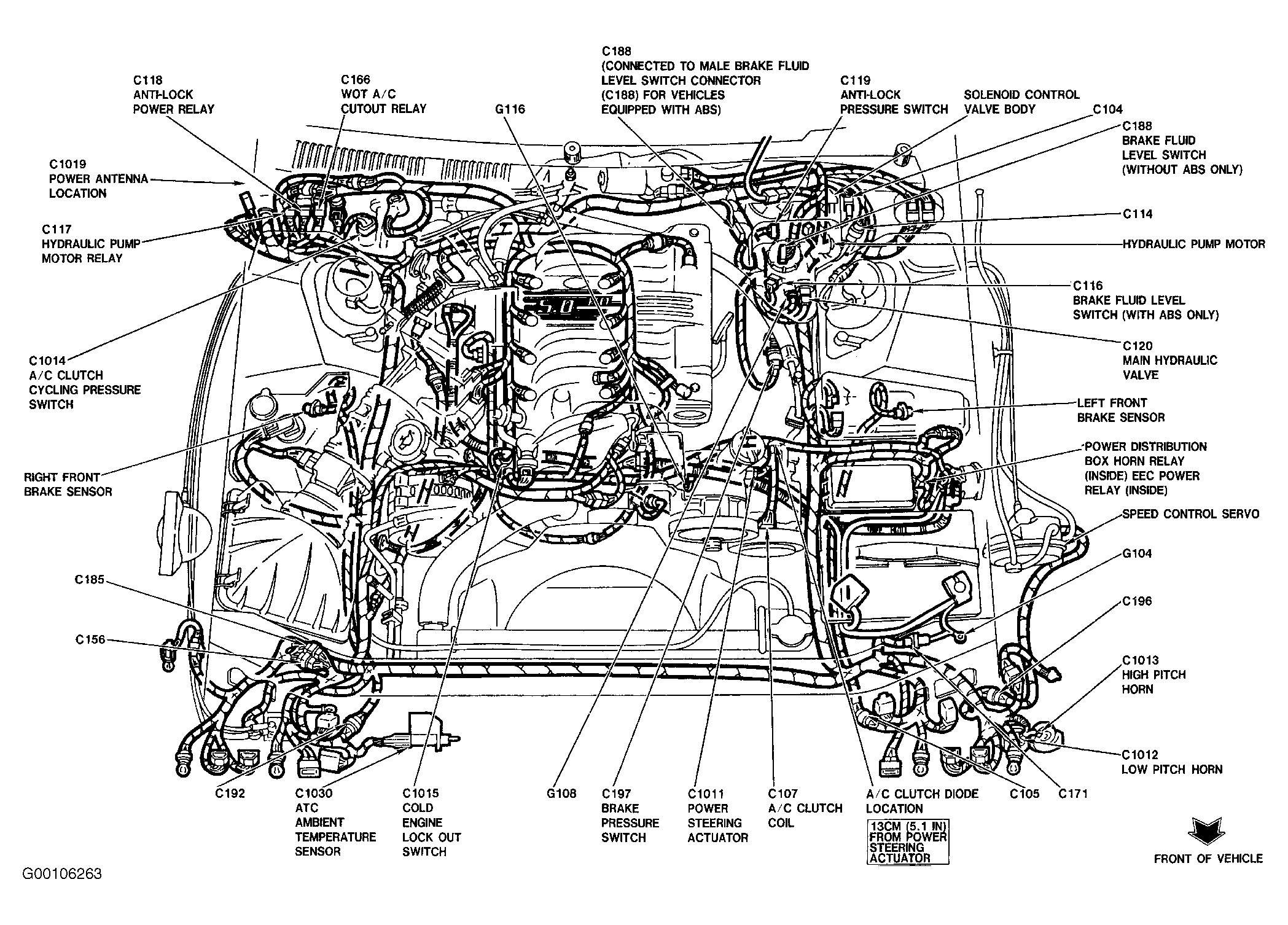

| Power Distribution Box | Left Side Of Engine Compartment, Behind Battery. See Fig 2 . |

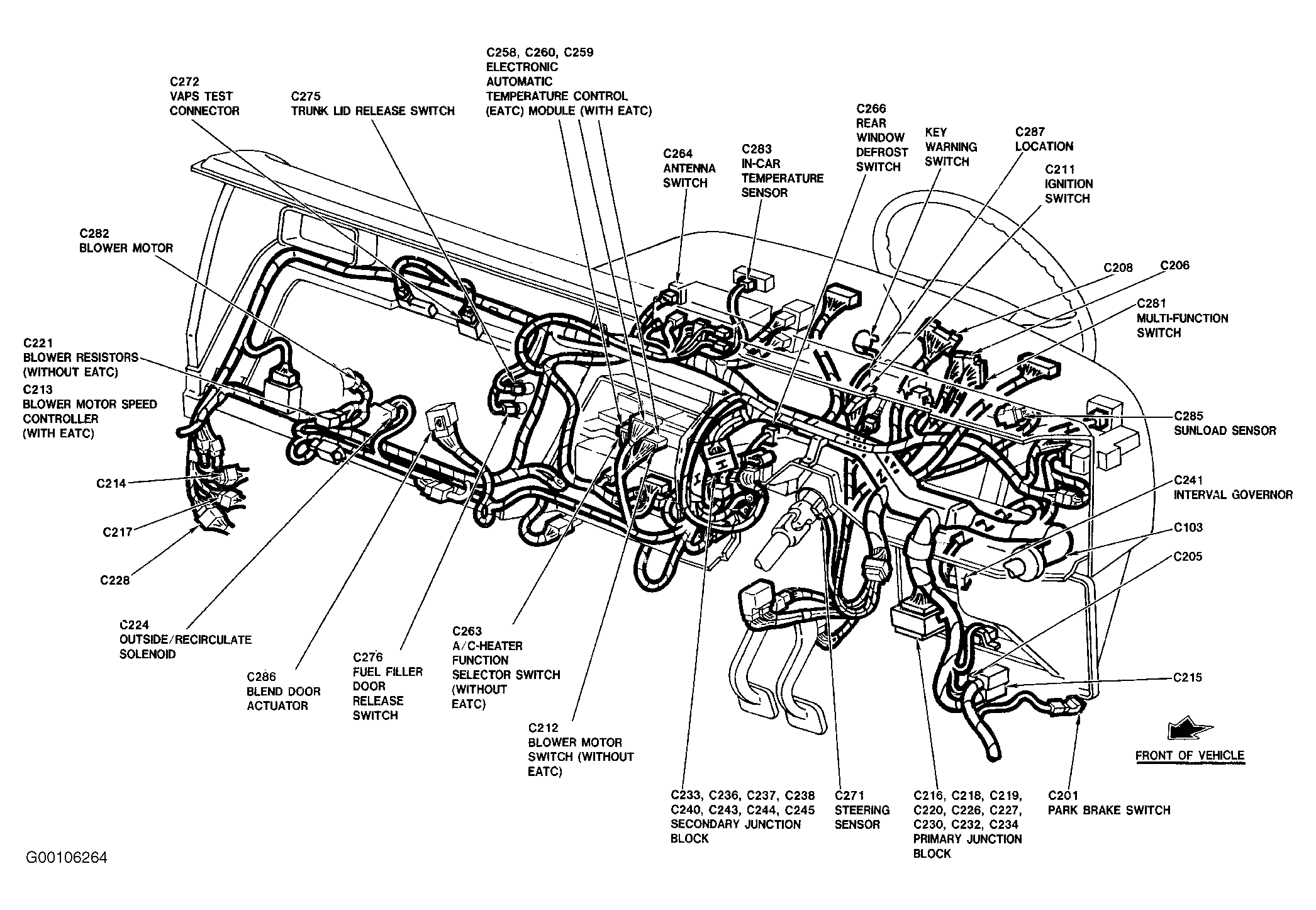

| Primary Junction Block | Behind Left Side Of Instrument Panel, Left Of Steering Column. See Fig 4 . |
