Body & Frame
>>
Power Mirrors
>>
Wiring Diagrams
Wiring Diagrams

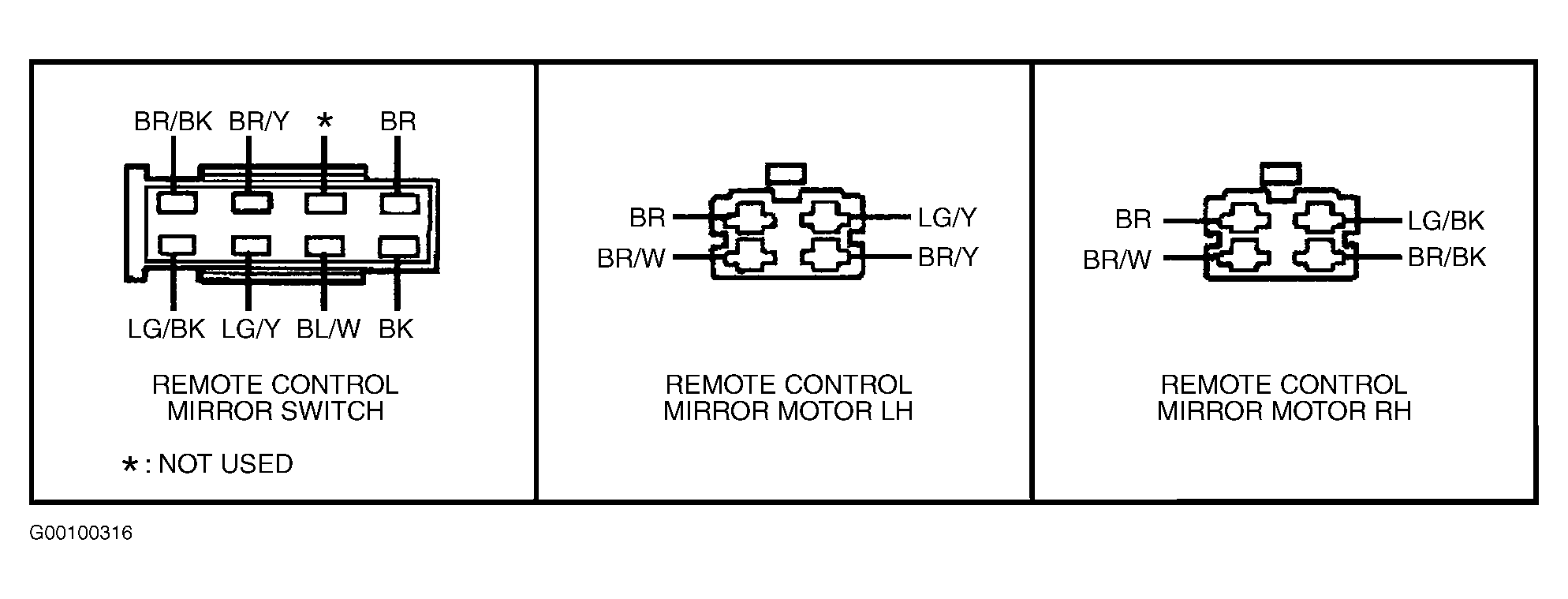

Fig 1: Identifying Power Mirror System Connector Terminals
Courtesy of FORD MOTOR CO.
Fig 2: Power Mirror Circuit
Courtesy of FORD MOTOR CO.
