Wiring Diagrams

Fig 1: Wiring Diagram (Capri 1.6L Non-Turbo)

G92G25268

Fig 2: Wiring Diagram (Capri 1.6L Turbo)

G92H25269

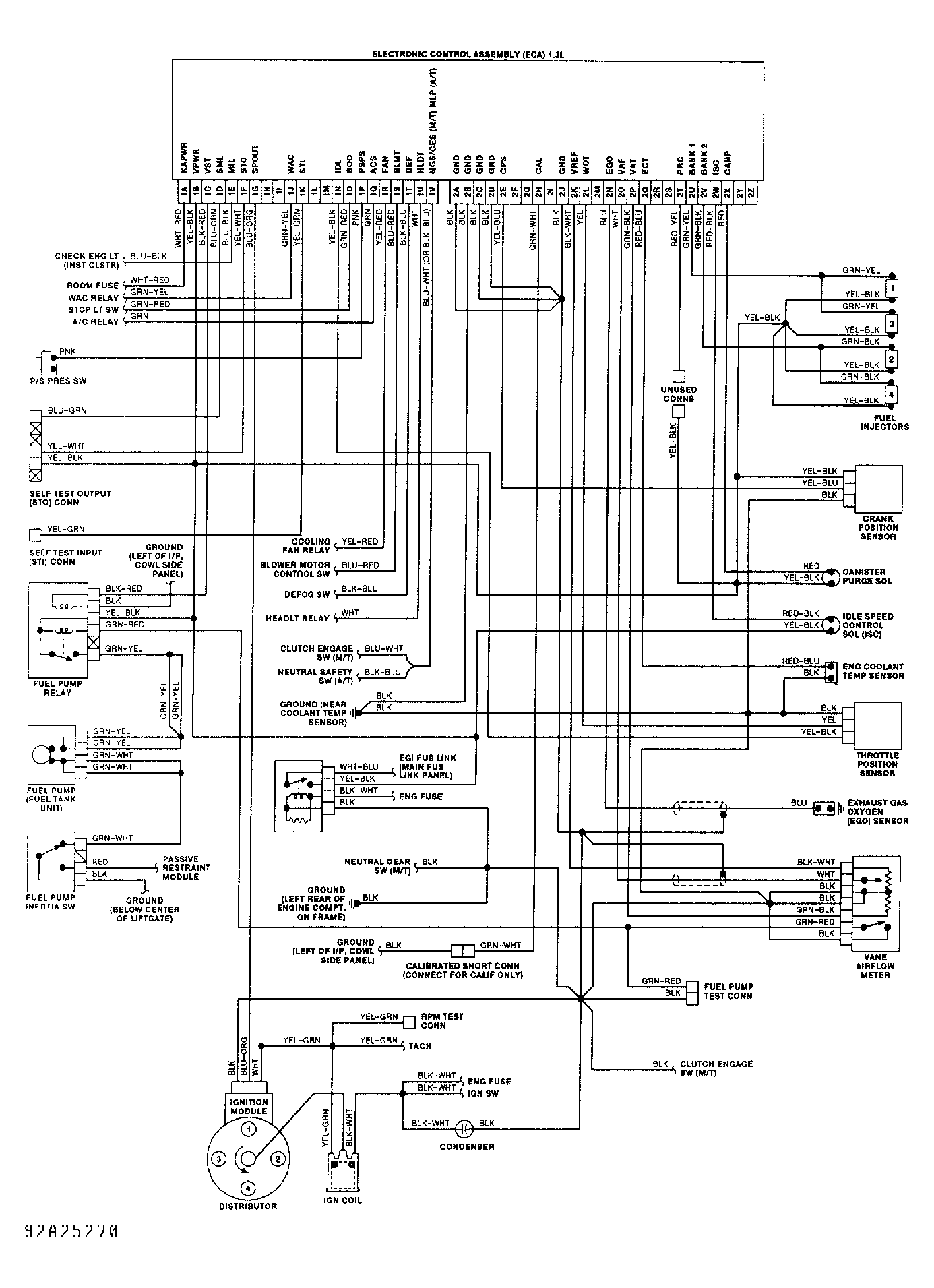

Fig 3: Wiring Diagram (Festiva 1.3L)

G92A25270
