Publication date: 1992-07-15Reference number: 92-15-2
POWER LOCK CONTROLLER STUCK - IMPROVED CONTROLLER
TECHNICAL SERVICE BULLETIN
Reference Number(s): 92-15-2
LOCKS - POWER DOOR - CONTROLLER STICKS IN UP OR DOWN POSITION - VEHICLES BUILT BEFORE 12/1/90
Model FORD: 1991 ESCORT
LINCOLN-MERCURY: 1991 TRACER Group Accessories & Electrical Bulletin No. 92-15-2 Date July 15, 1992 Symptom Power Door Lock Controller Sticks
ISSUE:
The power door lock controller may stick in the up or down
position. This occurs because of the internal components in
the original door lock controllers.
ACTION:
Check the operation of the power door lock controller.
If it sticks, replace it with an improved door lock
controller. Refer to the following procedure for service
details.
- Confirm that the door lock controller is sticking.
- Remove the sticking door lock controller.

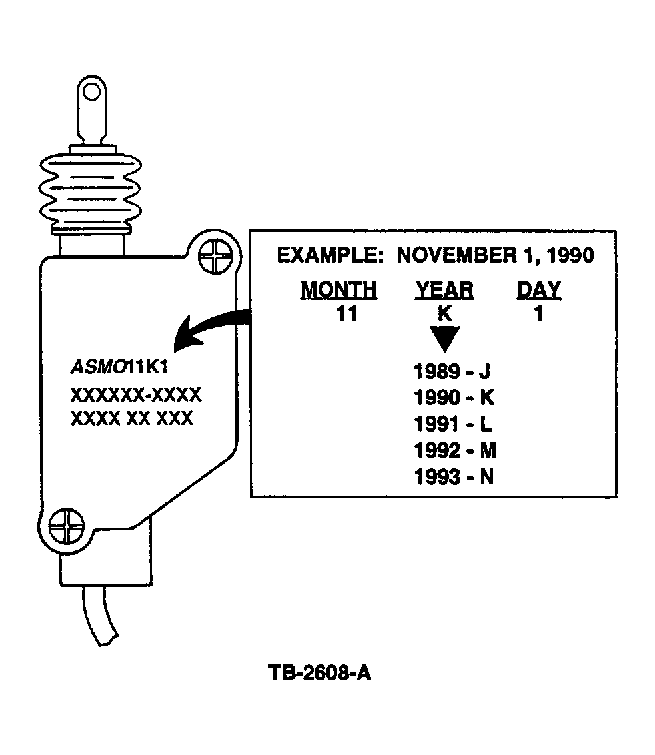

- Check the build date code on the controller. See Fig 1 .
- Check the internal door linkages. Make sure they are not binding and are properly lubricated.
- If the power door lock is still sticking and the controller was built within the specified build dates, replace the door controller.
NOTE:
Use controllers marked "11KI" or later. Check the parts
stock to make sure that earlier built controllers are not
installed.
PARTS INFORMATION
| PART NUMBER | PART NAME | CLASS |
|---|---|---|
| F1CZ-58218A42-A | Right Front Door Lock Controller | C |
| F2CZ-5826594-A | Right Rear Door Lock Controller | C |
| F2CZ-5826595-A | Left Rear Door Lock Controller | C |
