Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

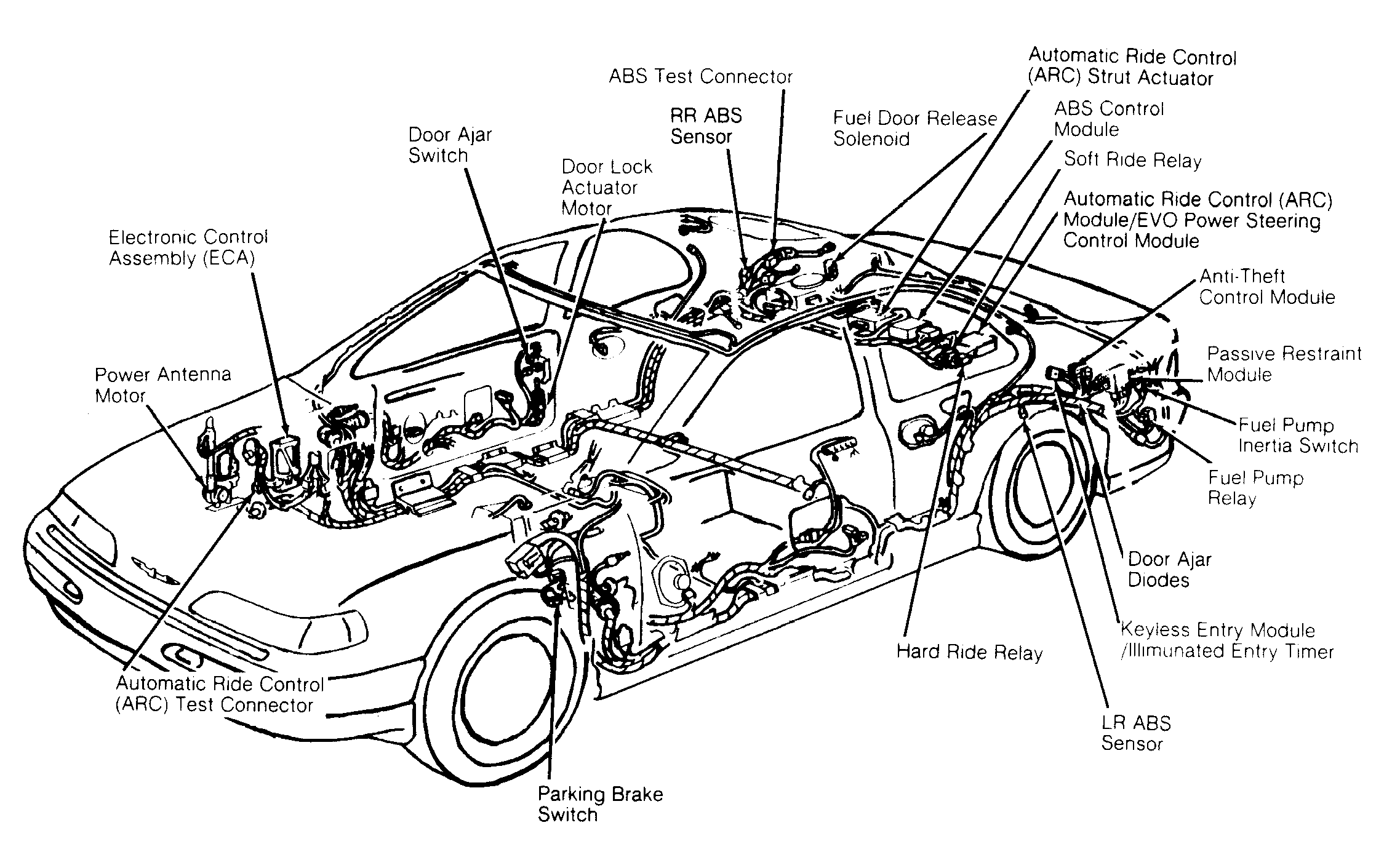

| ABS Control Module | In luggage compartment, below center of package tray. See Figure . | |
| Anti-Theft Control Module | On left rear quarter panel, behind wheelwell. See Figure . | |
| Automatic Ride Control (ARC) Module | In luggage compartment, below center of package tray. See Figure . | |
| Distributorless Ignition System (DIS) Module | On top right front of engine. See Figure . | |
| Electronic Control Assembly (ECA) | Right kick panel. See Figure . | |
| Electronic Variable Orifice (EVO) Power Steering Control Module | In luggage compartment, below center of package tray. See Figure . | |
| Integrated Relay Control Module | On right front of engine bay. See Figure . | |
| Keyless Entry Module | On left rear quarter panel, behind wheelwell. See Figure . | |
| Passive Restraint Module | On left rear quarter panel, behind wheelwell. See Figure . | |
| TFI Ignition Module (EEC-IV) | ||

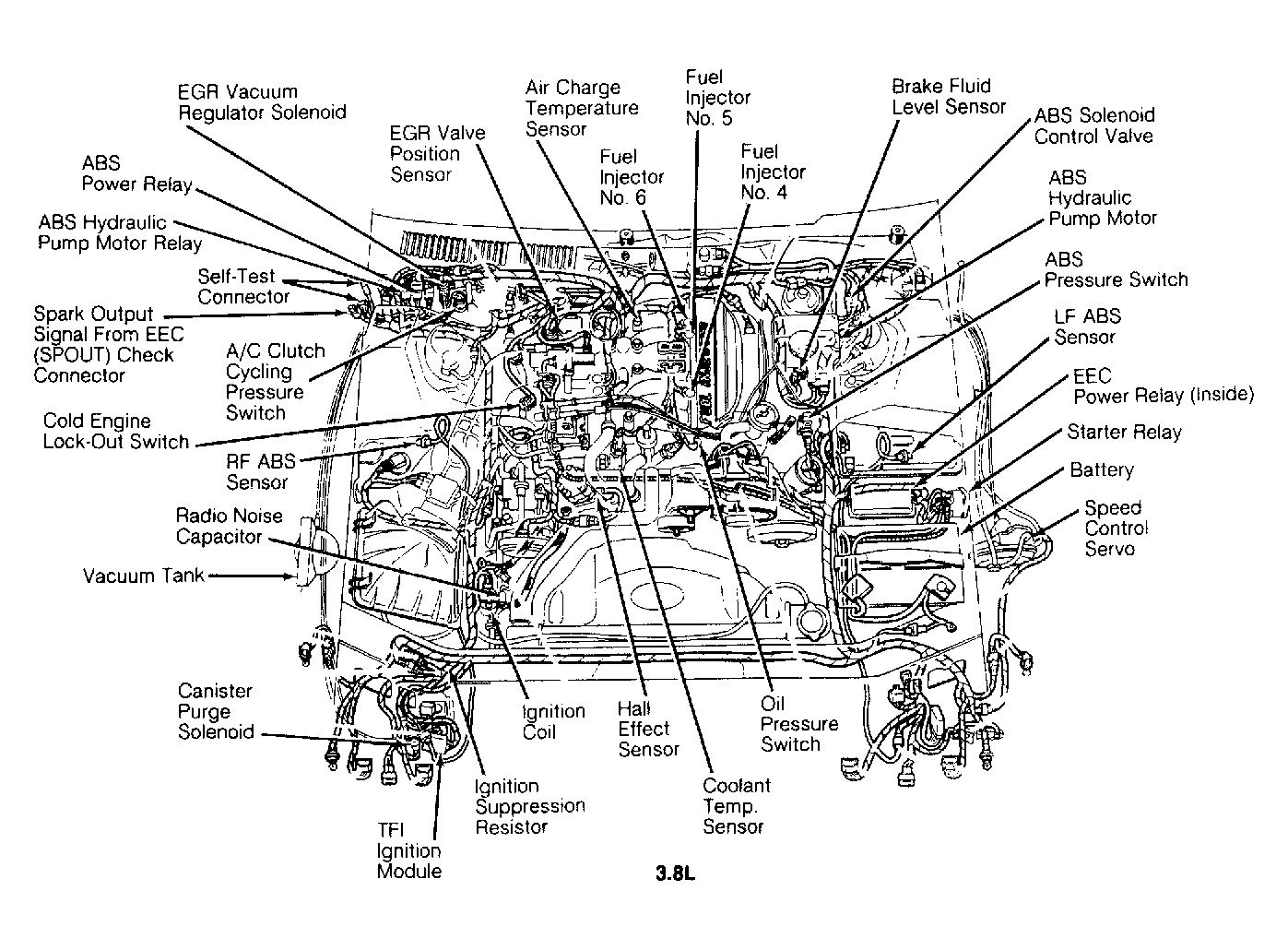

| 3.8L | On right front of engine bay. See Figure . | |
| 5.0L | On right front of engine bay. See Figure . | |
| Warning Chime Module | Behind right side of dash, below glove box. See Figure . | |
