Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Anti-Theft In-Line Fuses | In wiring harness, at left rear of luggage compartment. | ||
| Circuit Breakers | In interior fuse block. | ||
| Fuse Blocks | |||
| Engine Compartment | |||

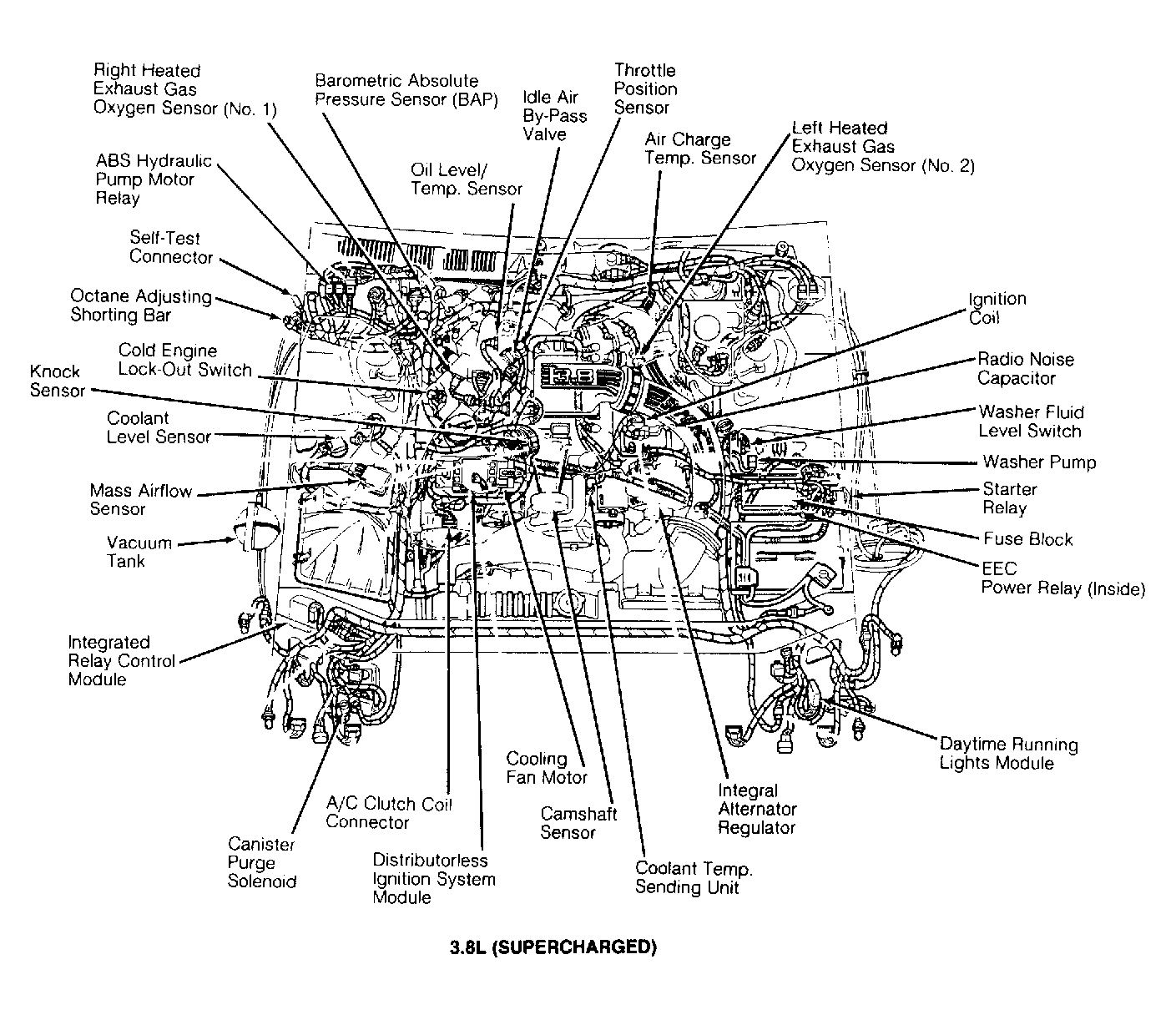

| 3.8L Supercharged | On left front fender panel, behind battery. See Figure . | ||

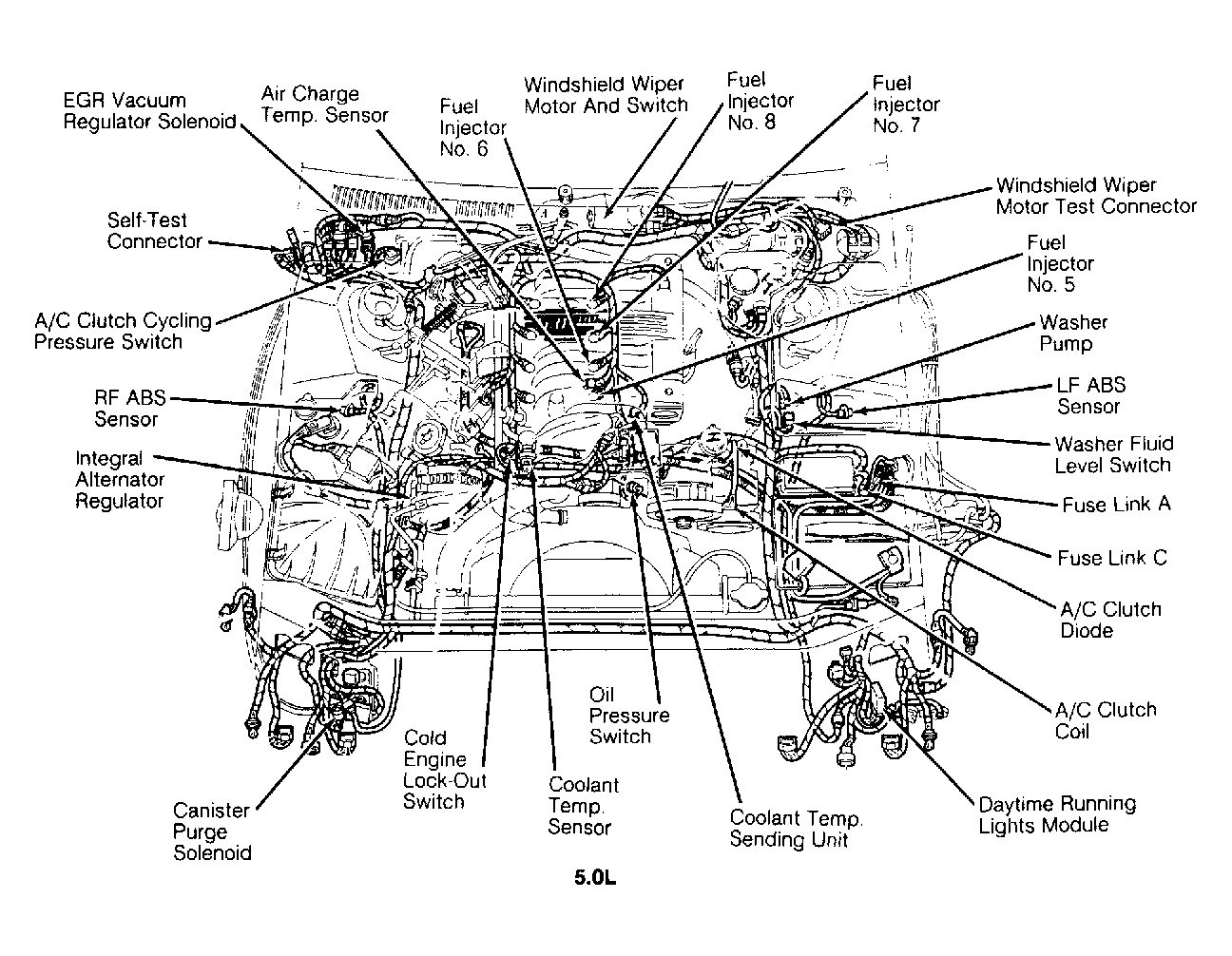

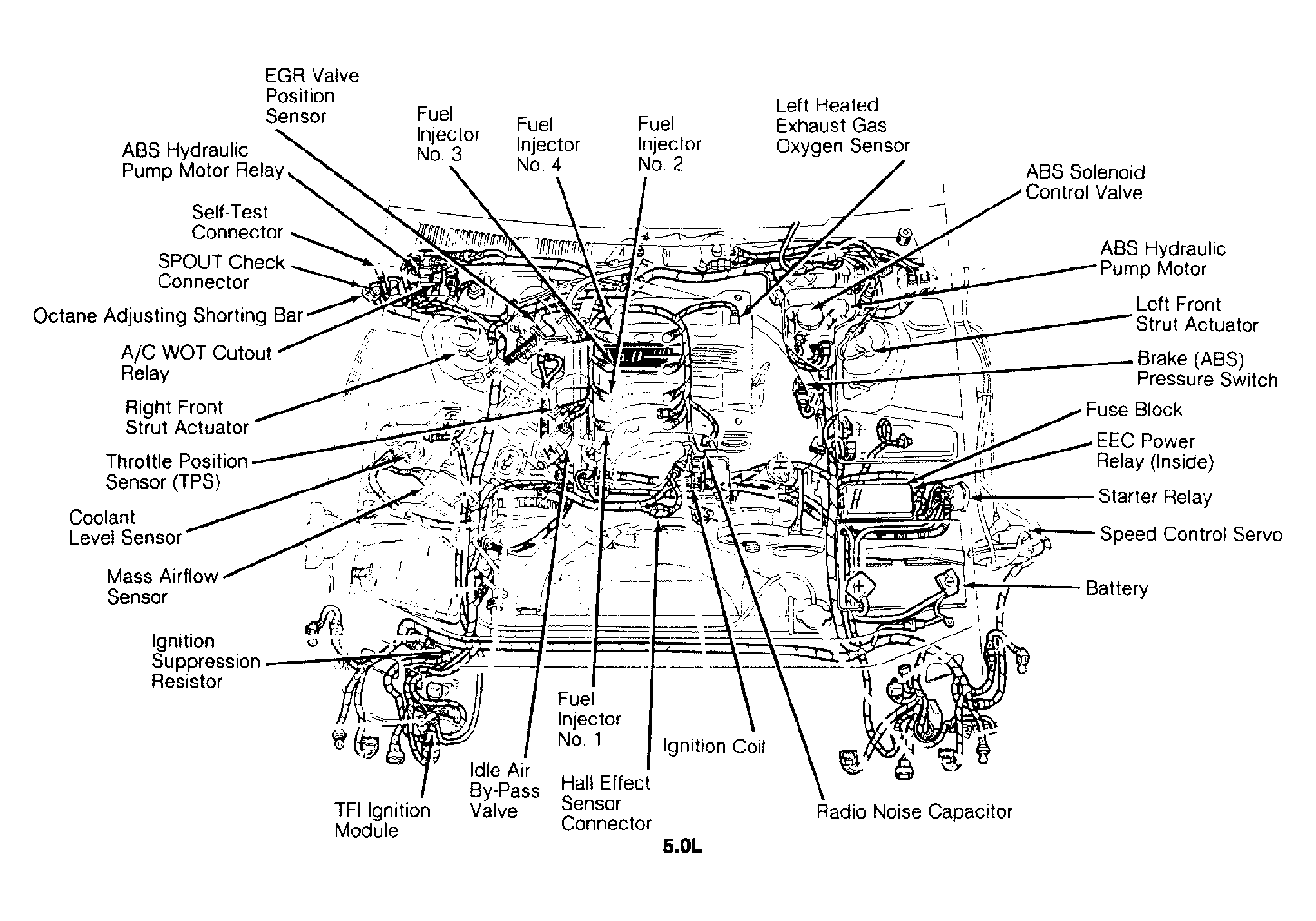

| 5.0L | On left front fender panel, behind battery. See Figure . | ||

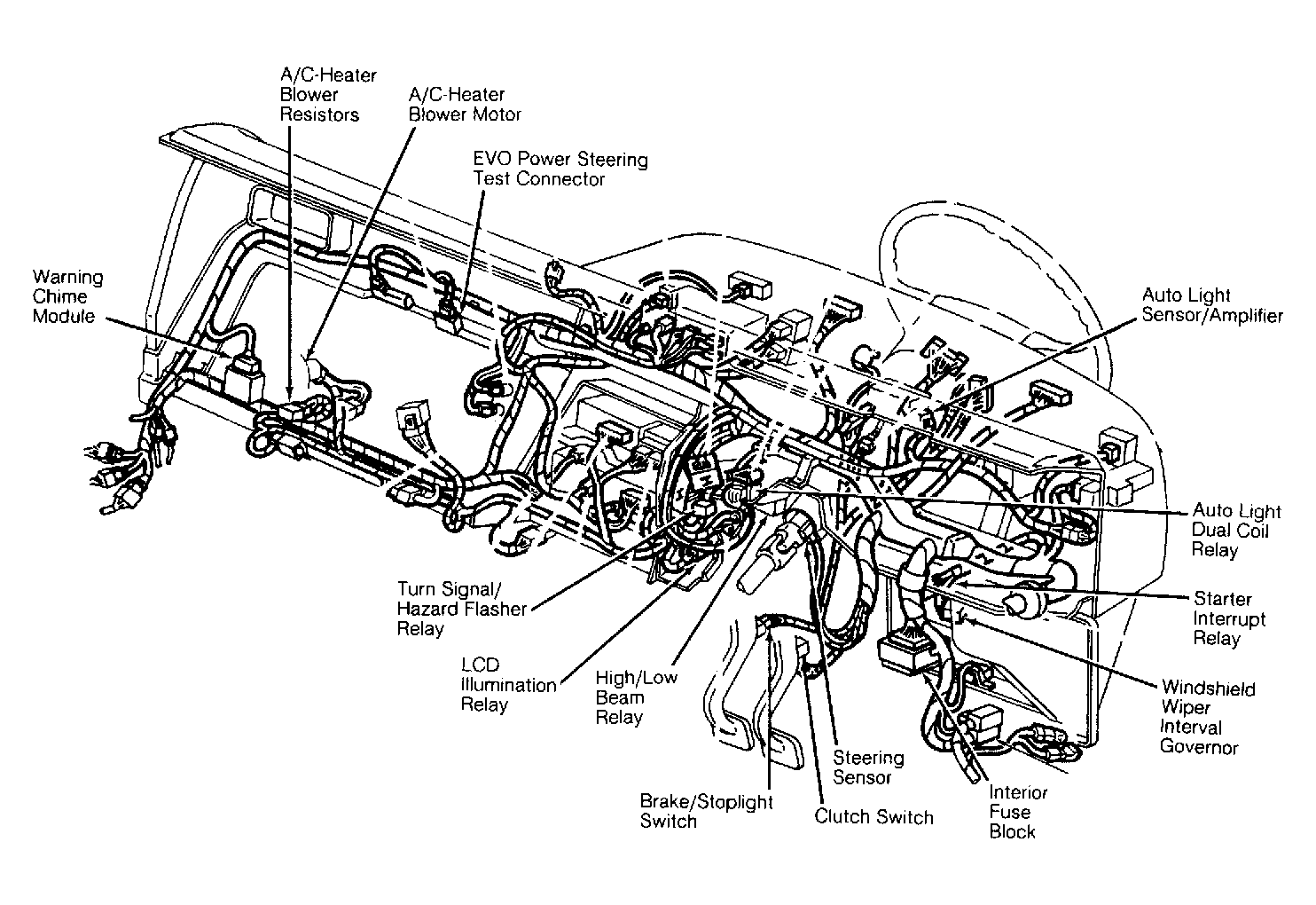

| Interior | Behind lower left side of dash. See Figure . | ||
| Fusible Links | |||
| Charging System (Dk. Green) A | Near starter relay. See Figure . | ||
| Charging System (Dk. Blue) C | Near starter relay. See Figure . | ||
| Cooling Fan Motor (Black) B | Near starter relay. | ||
| Relay Block | On right side of firewall. | ||
