Wiring Diagrams

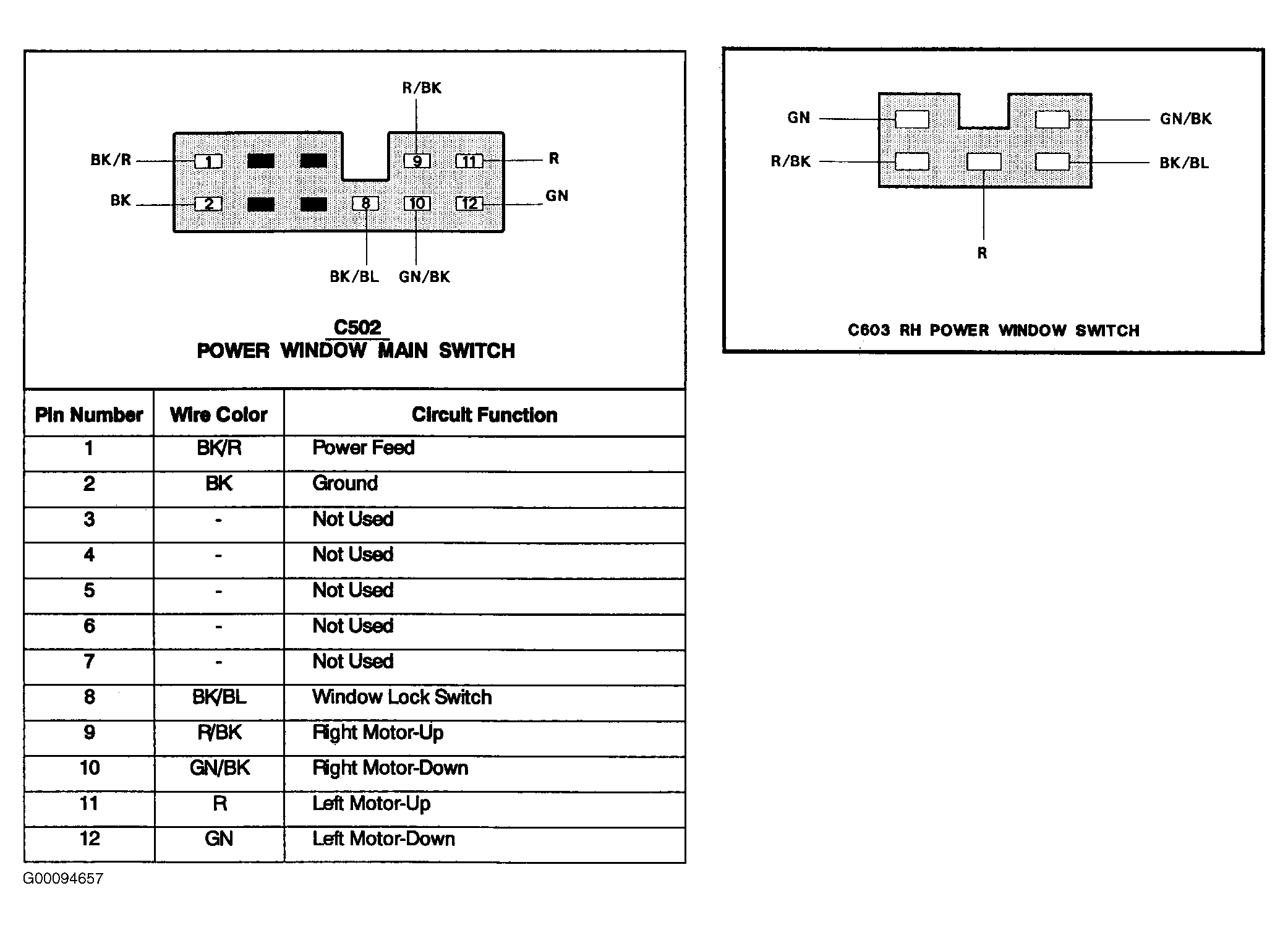

Fig 1: Power Window Connector Identification
Courtesy of FORD MOTOR CO.

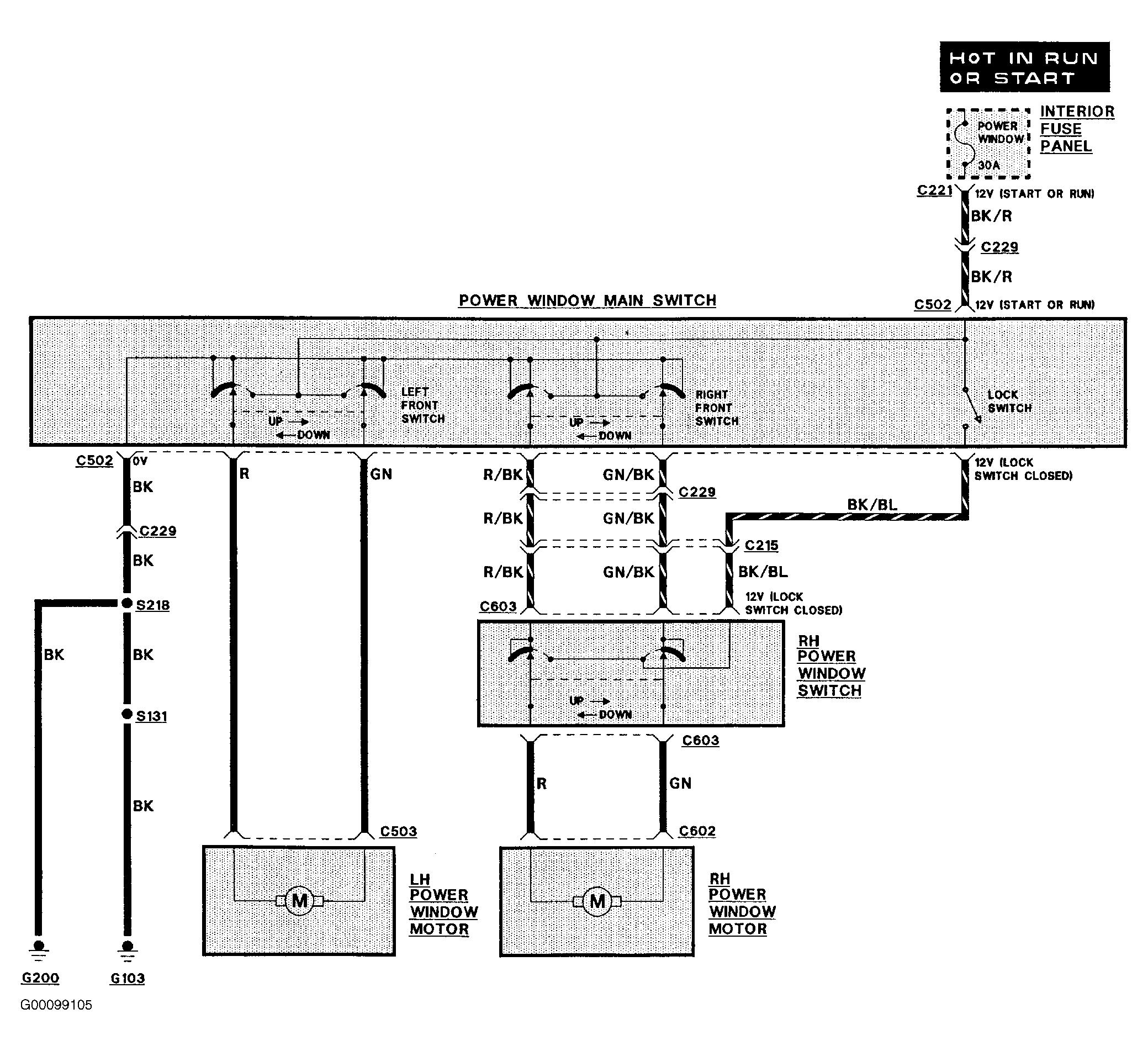

Fig 2: Power Window Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
