Distributor Specifications

Fig 1: Festiva Carbureted Ignition Advance Curve
G120245Courtesy of FORD MOTOR CO.
Fig 2: Festiva Fuel Injection Ignition Advance Curve
G120246Courtesy of FORD MOTOR CO.

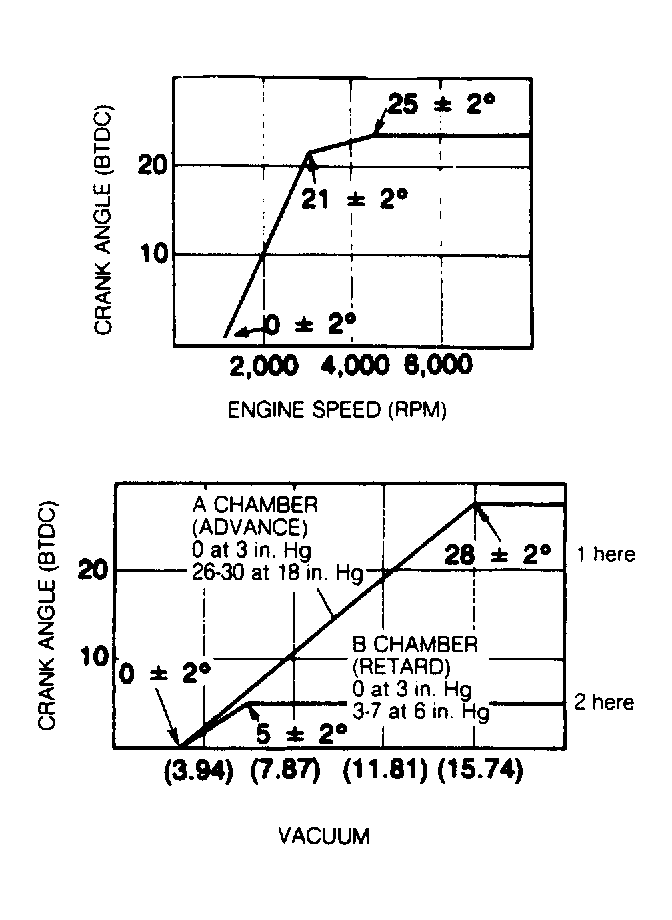

Fig 3: Tracer Ignition Advance Curve
G120247Courtesy of FORD MOTOR CO.
