Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

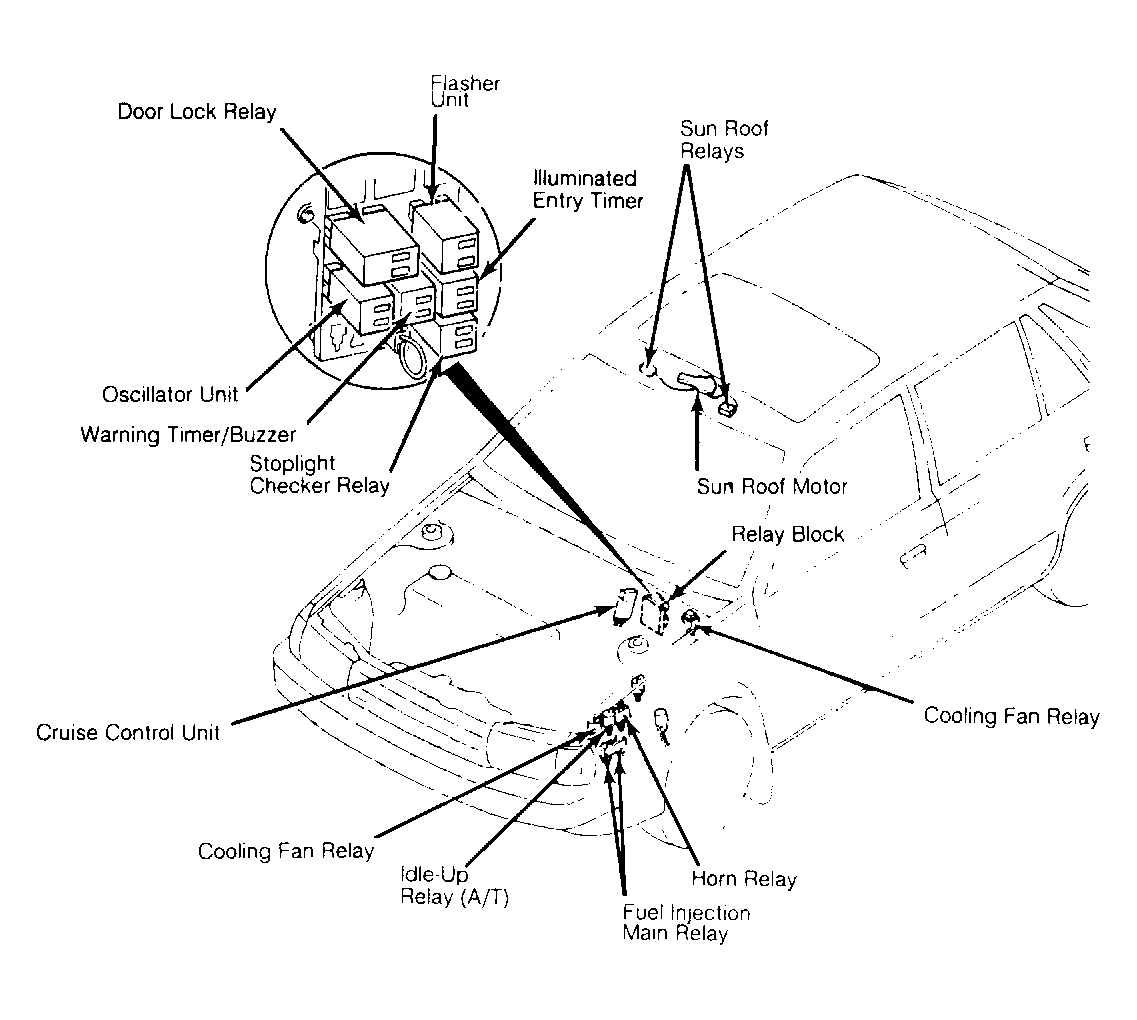

| Cruise Control Unit | Under instrument cluster, near relay block. See Figure . |

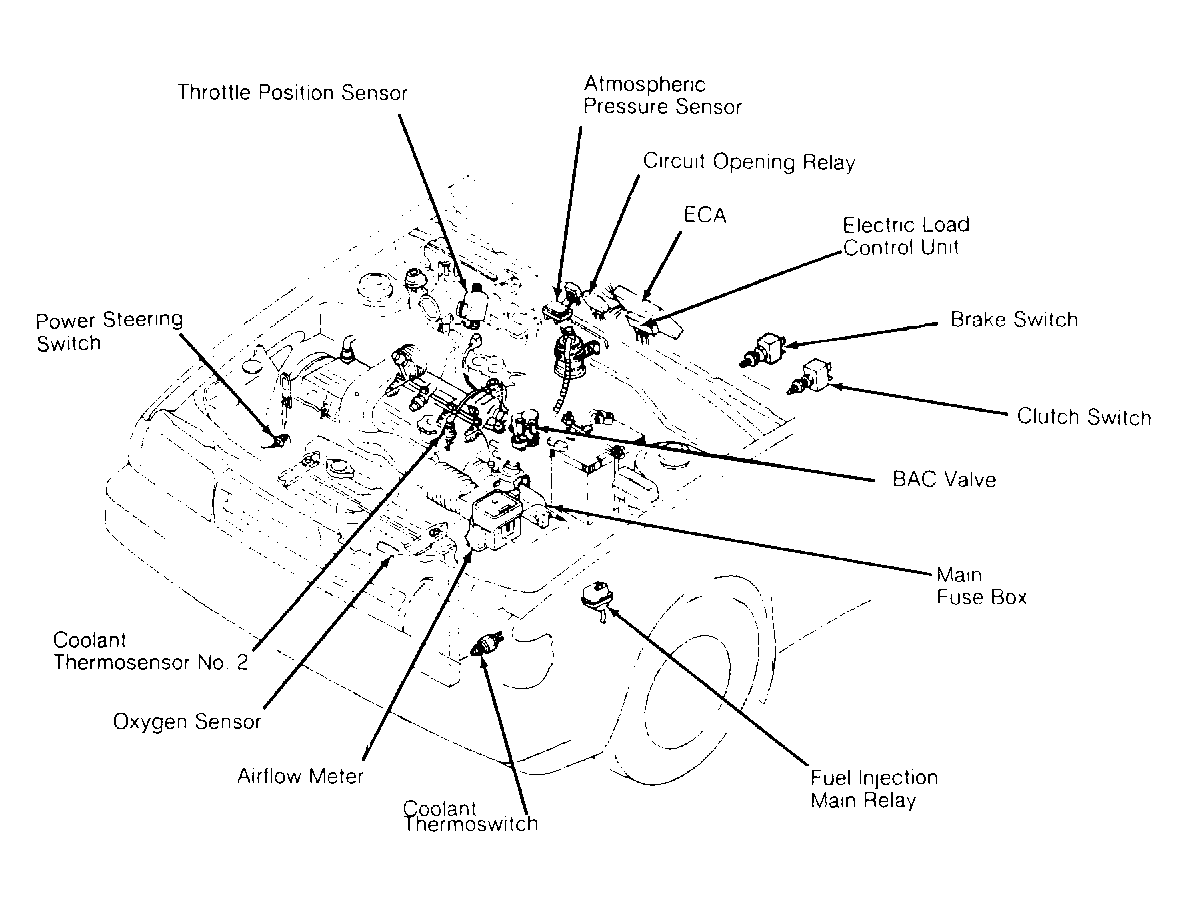

| Electric Load (E/L) Control Unit | Behind engine control unit. See Figure . |
| Electronic Control Assembly (ECA) | Behind center of dash. See Figure & Figure . |
| Fuel Pump Control Unit | Under driver's seat. |
| Idle-Up Control Unit | Under electronic control assembly. See Figure . |
| Knock Control Unit | In front of right strut tower. |
