Steering Column: Reassembly

To reassemble, reverse disassembly procedure. Grease all moving and sliding components. Check for proper operation. Install new seals, retaining clips and plastic bearing retainers.

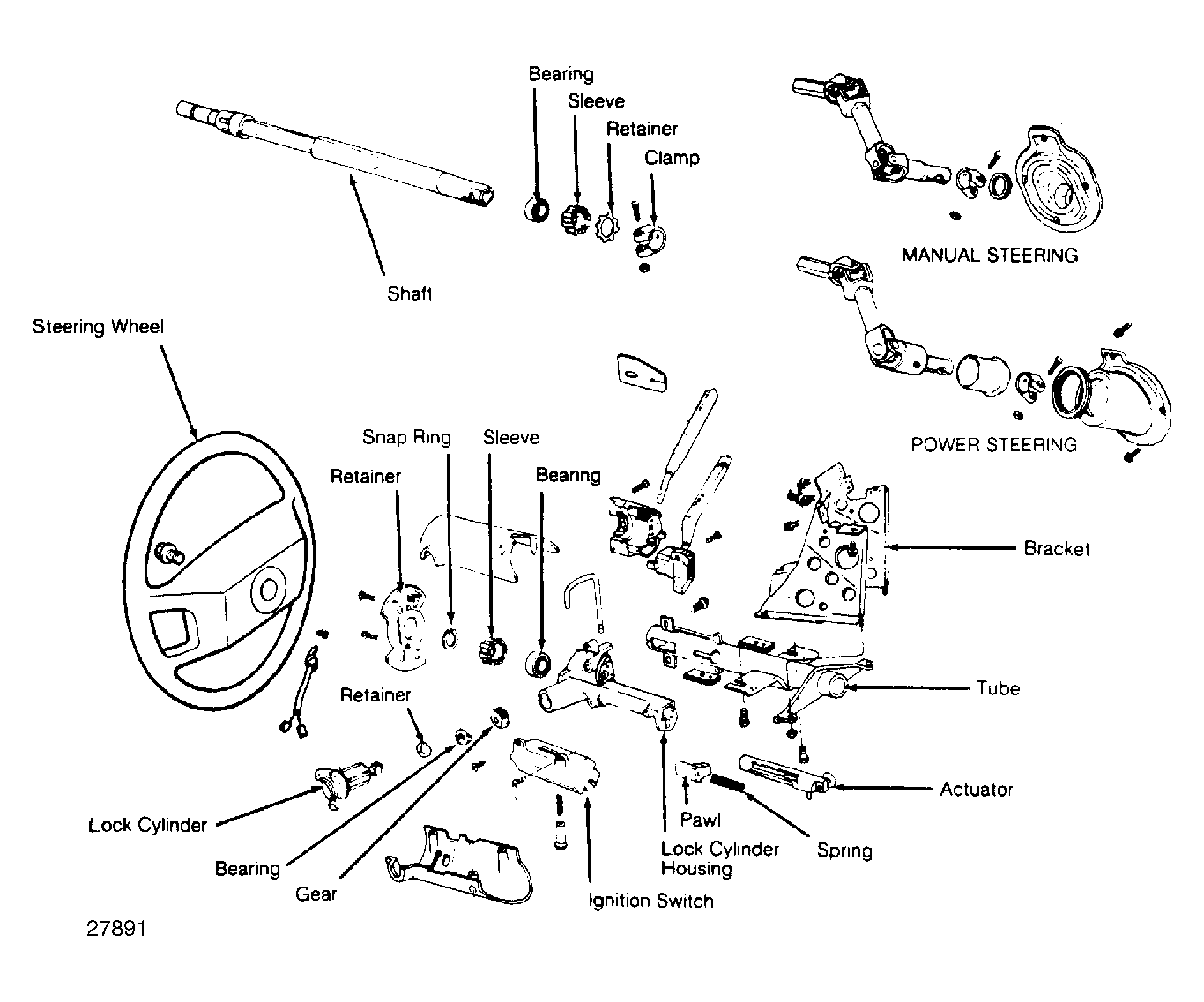

Fig 1: Exploded View of Steering Column (Fixed)

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View of Steering Column (Tilt)

Courtesy of FORD MOTOR CO.
