Wiring Diagrams

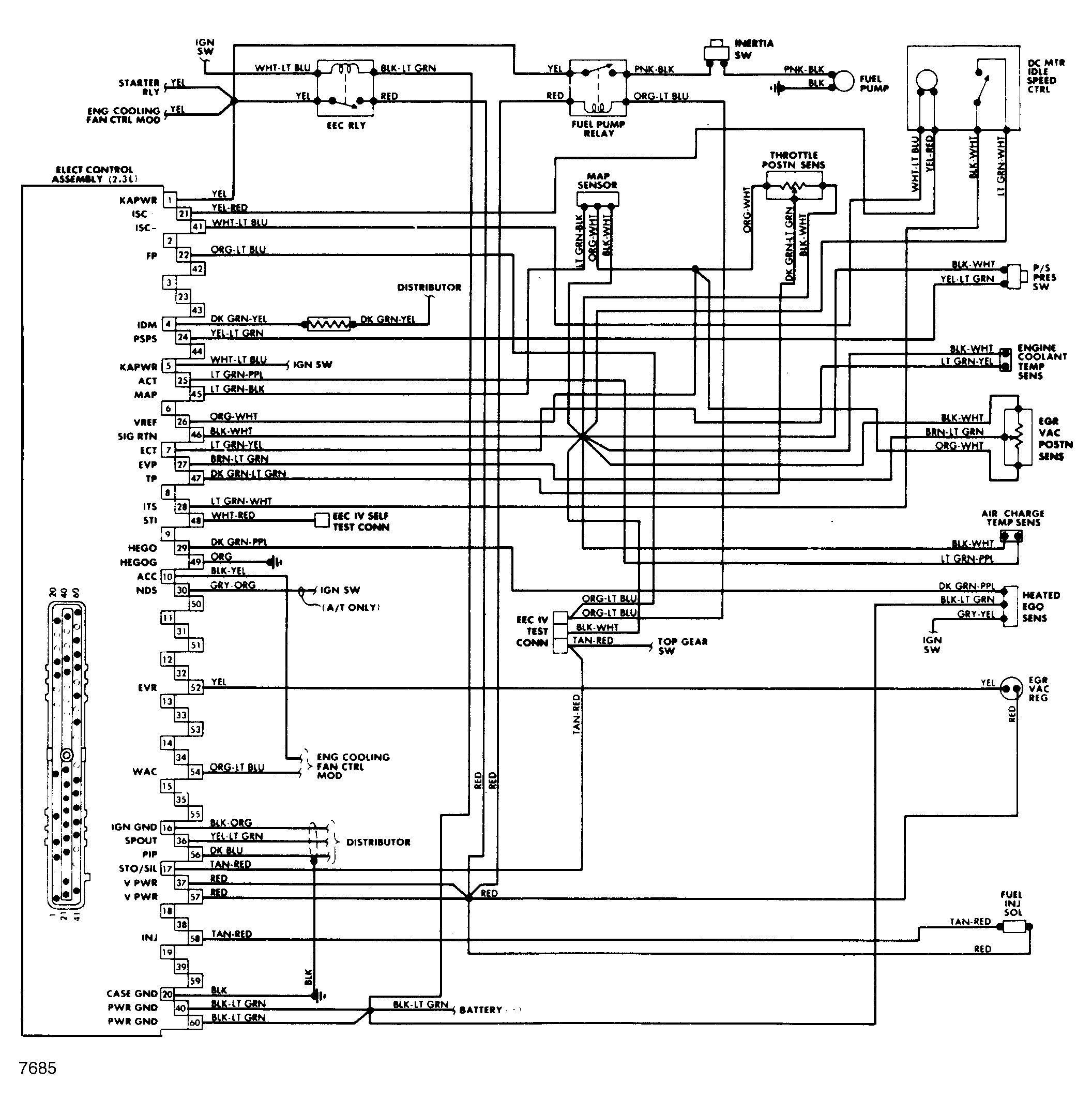

Fig 1: 2.3L HSC CFI System Wiring Diagram

G7685

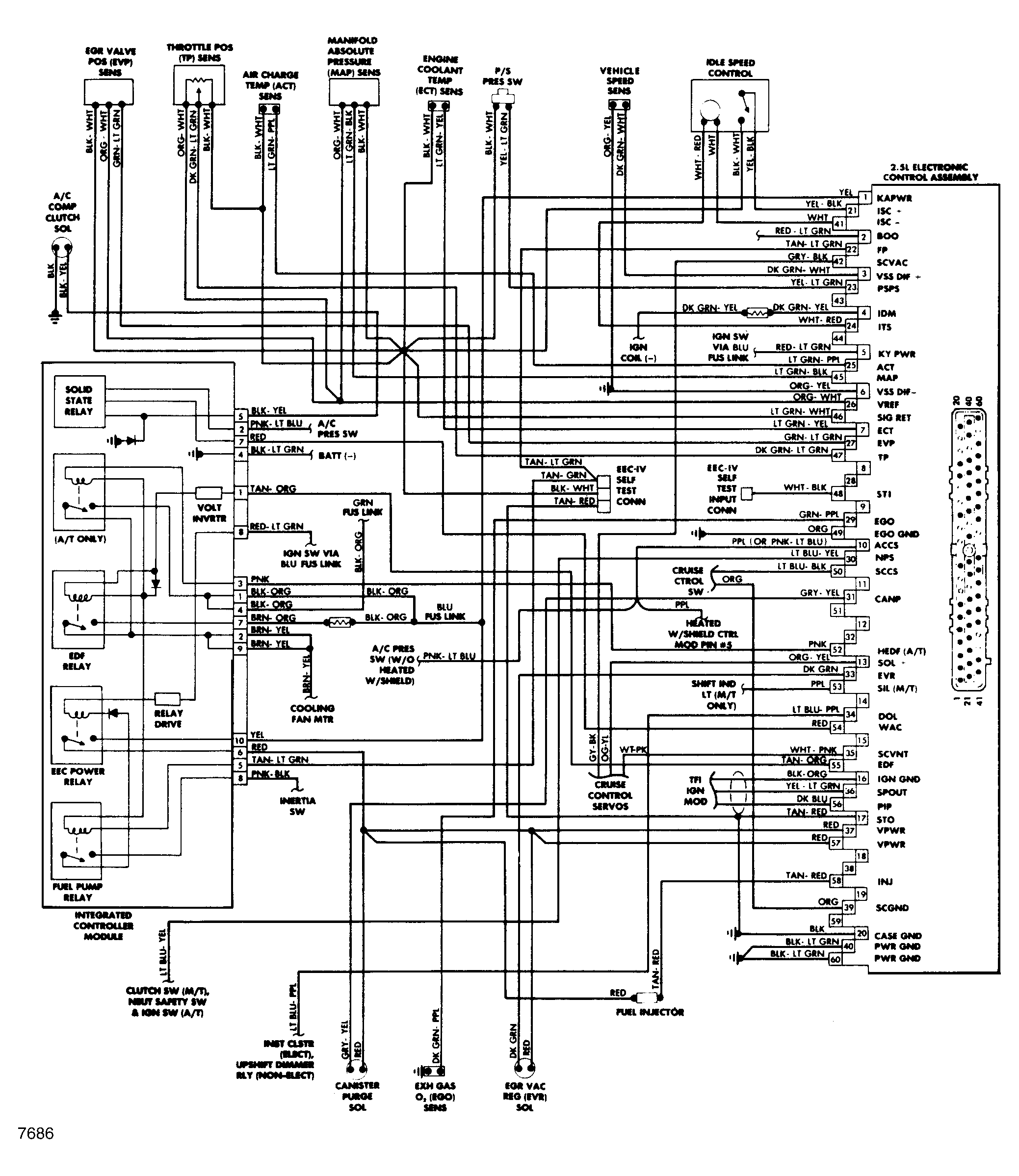

Fig 2: 2.5L HSC CFI System Wiring Diagram

G7686
