Wiring Diagrams

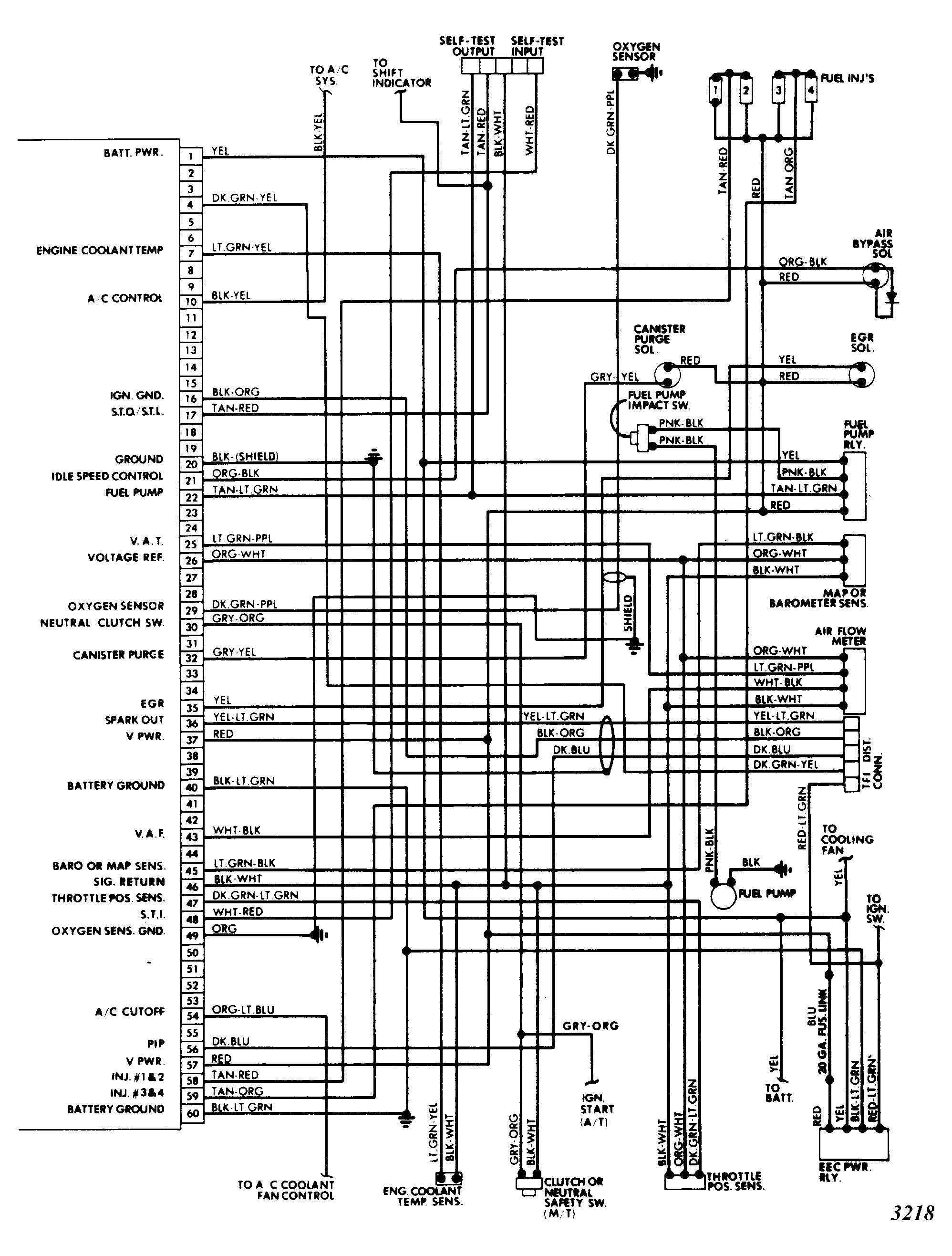

Fig 1: 1985 1.6L & Turbo Multi-Point Injection System Wiring Diagram

G3218

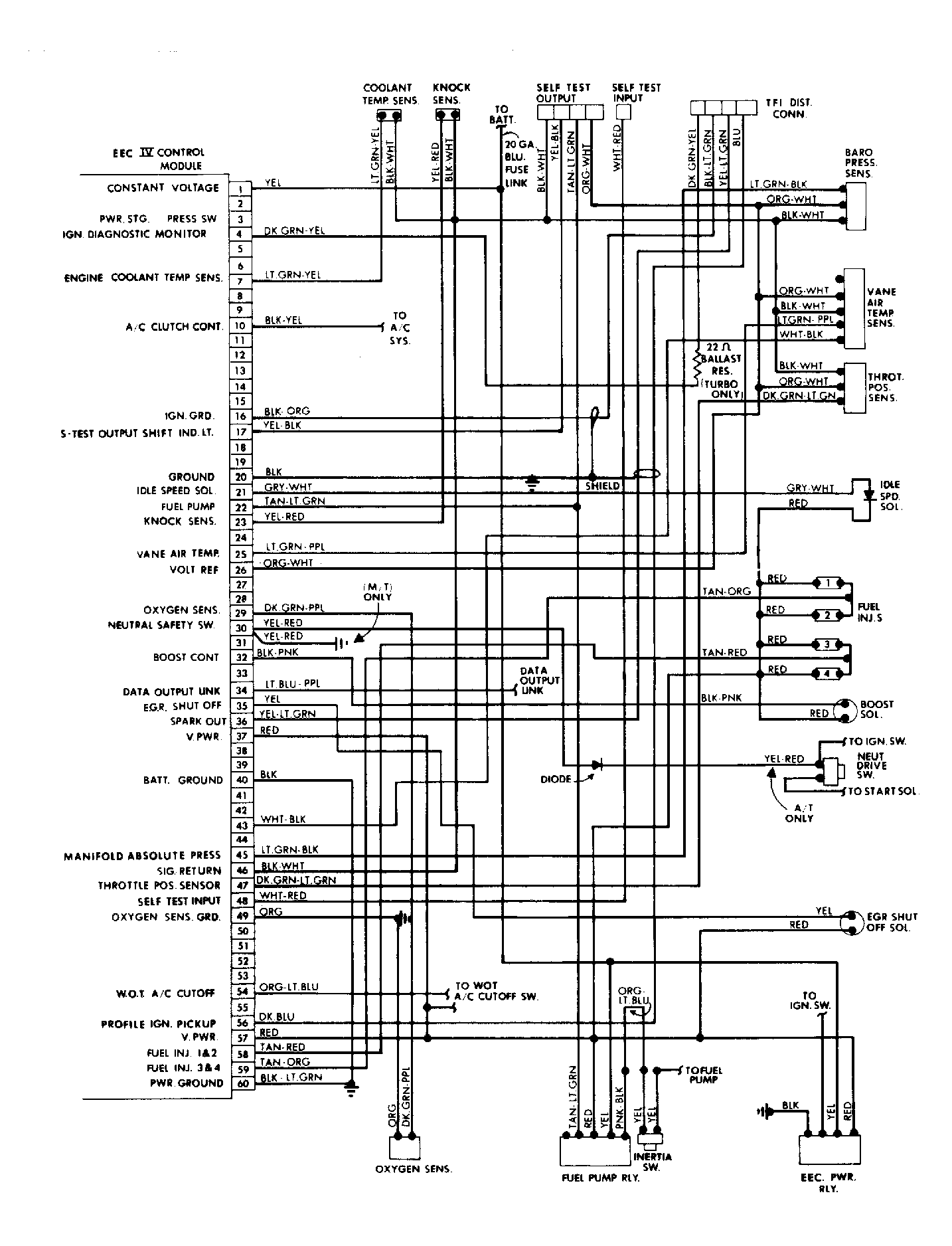

Fig 2: 1985 2.3L Turbo Multi-Point Injection System Wiring Diagram

G3219
