Home >> Mercury >> 1985 >> Capri GS, 3.8 3 >> Repair and Diagnosis >> Engine Performance >> System >> 3.8L CFI Tests >> Component Location

Component Location

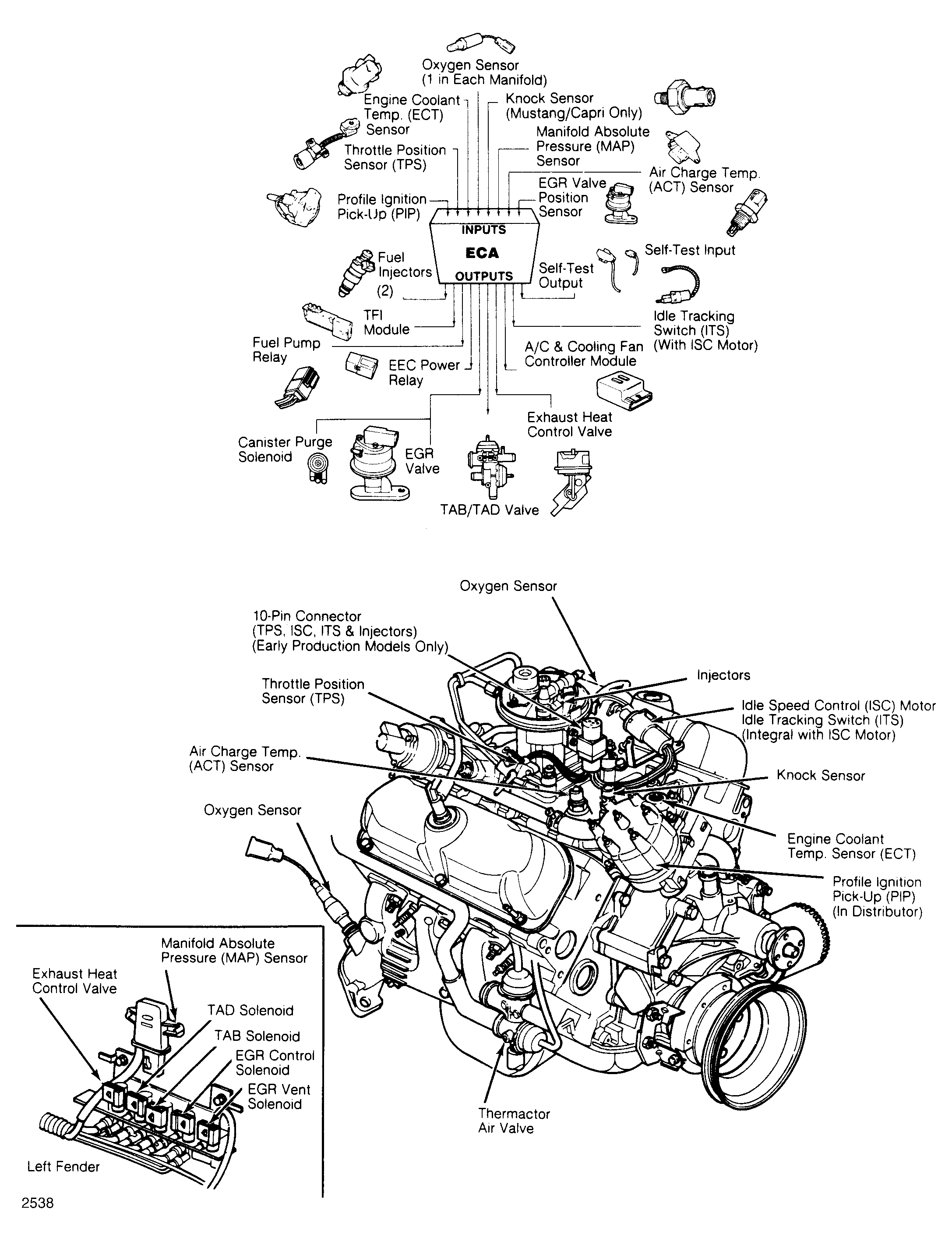

Fig 1: 3.8l CFI EEC -IV Component Locations

G2538
