Carburetor - MOTORCRAFT 740 2-Bbl: Overhaul: Disassembly: Notes

NOTE: To prevent damage to throttle plates, install carburetor legs or four 2 1/4" bolts into base, using eight nuts. Use separate container for parts removed from various assemblies.

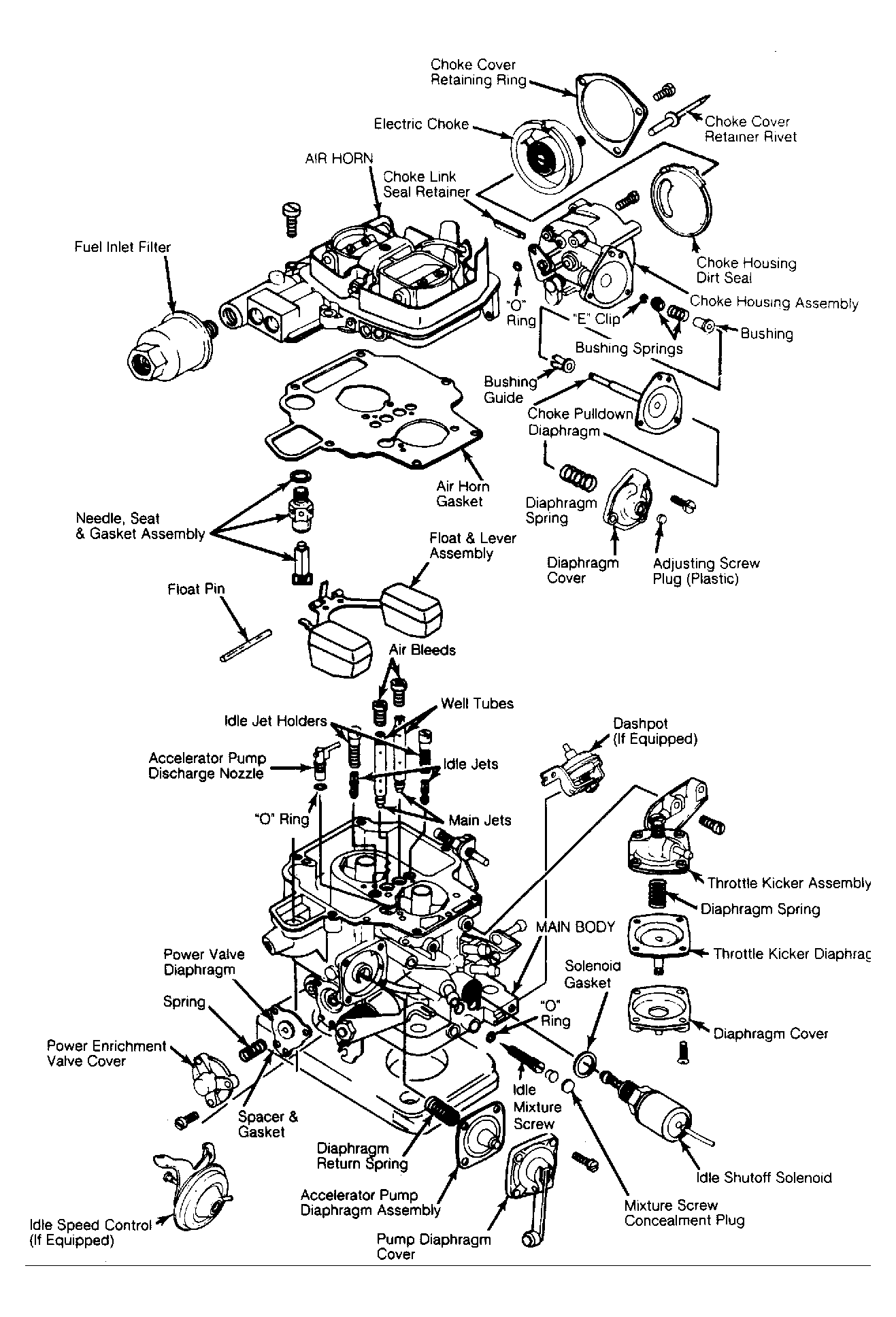

Fig 1: Exploded View of Motorcraft Model 740 2-Bbl. Carburetor
