Revised DURA Spark Ignition Module (89-10T-3)

Publication date: 1989-10-01
Reference number: 89-10T-3

REVISED DURA SPARK IGNITION MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-10T-3, Date of Issue: October, 1989

APPLICATION

1973-88 Ford Motor Co. Vehicles with Duraspark II Ignition

SUBJECT

Revised Duraspark II Ignition Module Application

REFERENCE

Ford Motor Co., Technical Service Bulletin, No. 89-10T-3, October, 1989

SERVICE INFORMATION

The manufacturer has revised the Dura Spark II ignition module assembly application. Refer to the charts below and on the next page for correct module application.

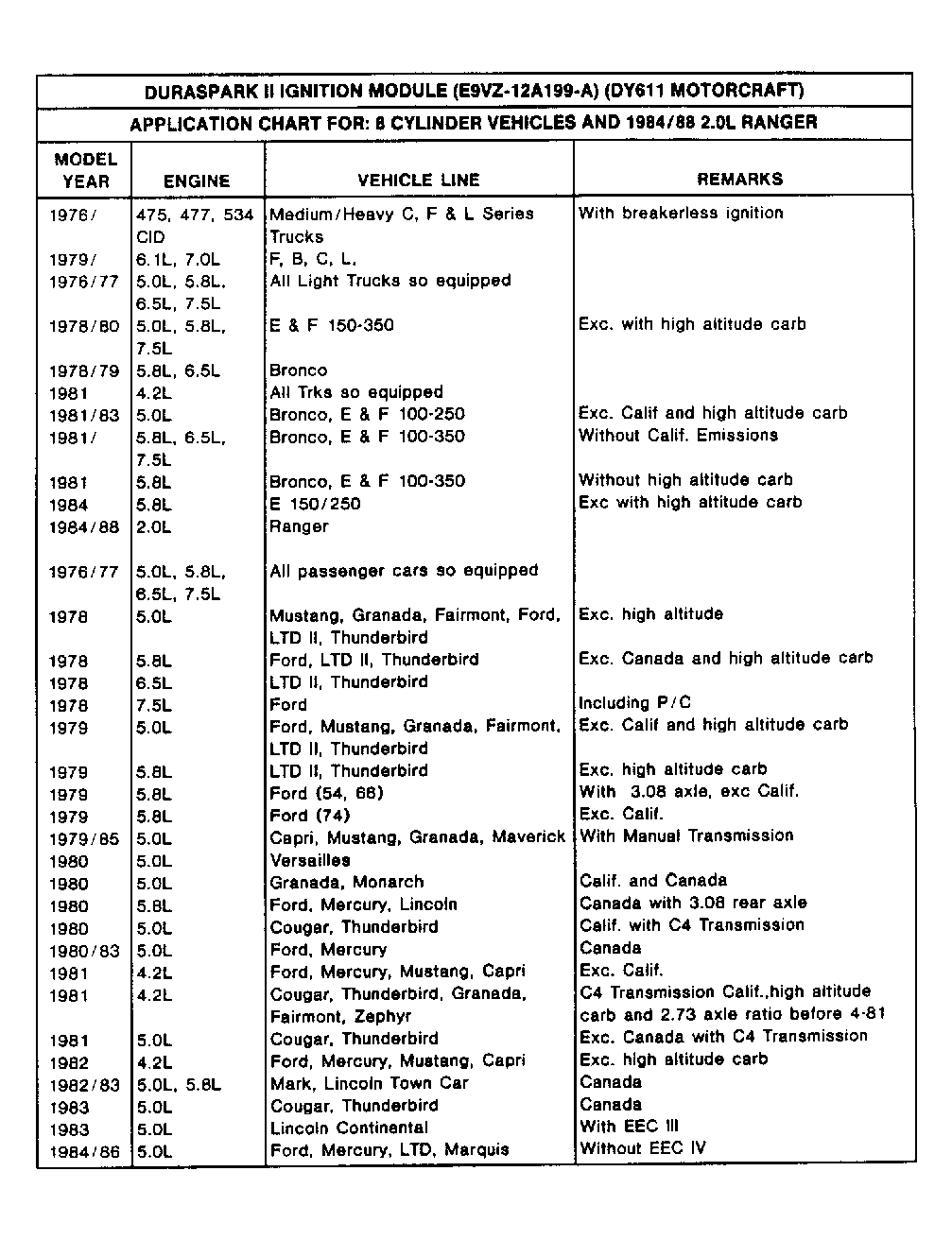

Fig 1: Duraspark II Ignition Module Application Chart (1 of 2)

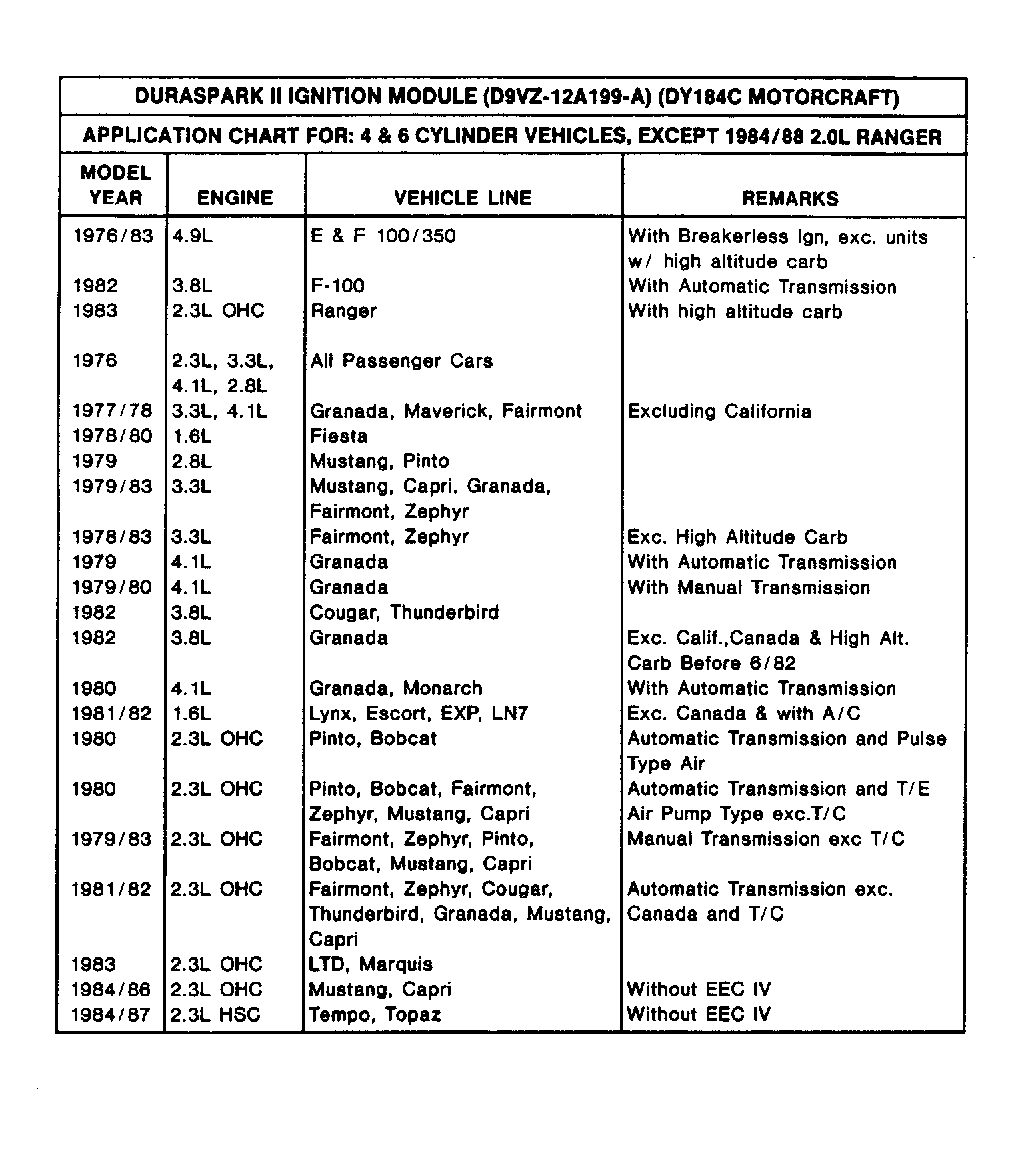

Fig 2: Duraspark II Ignition Module Application Chart (2 of 2)
