Home >> Mercury >> 1983 >> Capri Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> EEC III Testing >> Vacuum Hose Diagram(S)

Vacuum Hose Diagram(S)

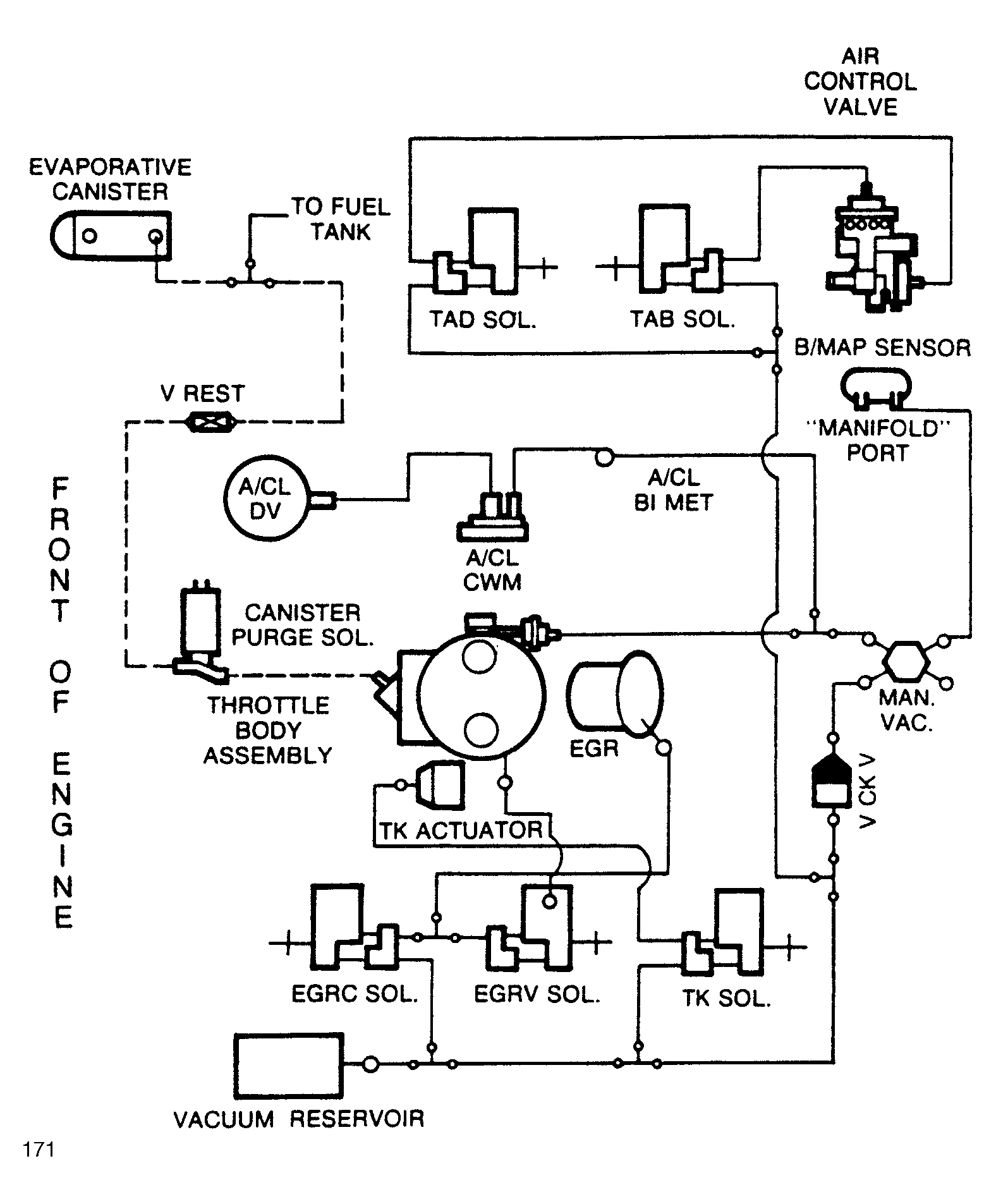

Fig 1: Typical EEC III Vacuum Schematic

G171
